Developing a sampling regime for Metallurgical Accounting – Here is what you need to know.
Plant Sampling Planning for Metallurgical Accounting Plant sampling is a crucial component of metallurgical accounting, which is the process of measuring and analyzing the performance of a metallurgical process. Metallurgical accounting involves the collection, analysis, and reporting of data related to the inputs and outputs of the process, such as the amount of metal in the ore and the products, the recovery rates, and the energy consumption. When planning plant sampling for metallurgical accounting, there are several important considerations to take into account. These include: Determine the purpose of the sampling: Identify the specific purpose of the sampling, such as measuring the metal content in the ore or determining the recovery rates of the process. This will help to focus the sampling effort and ensure that the data collected is relevant to the needs of the metallurgical accounting. Select an appropriate sampling method: Select an appropriate sampling method, such as grab sampling, composite sampling, or cross-stream sampling. The choice of sampling method will depend on the characteristics of the process, such as the particle size, the flow rate, and the variability of the data. Determine the sample size: Determine the appropriate sample size based on the expected variability of the data and the desired level of precision. This will ensure that the sample is representative of the population being sampled and that the data collected is reliable. Consider the cost and uncertainty level: Consider the cost and uncertainty level associated with the sampling plan. This will help to ensure that the sampling effort is cost-effective and that the uncertainty associated with the estimates is acceptable. Consider the sample variability and distribution: Consider the expected sample variability and select an appropriate statistical distribution to use when analyzing the sample data. Determine the impact of outliers, conduct a test of normality, and use appropriate statistical methods to analyze the data. Determine the types of estimates needed and the analysis required: Determine the types of estimates needed for the metallurgical accounting and select appropriate analytical methods to estimate the parameters of interest. Analyze the data, validate the estimates, and develop a quality control plan. Consider the useful priority information required: Identify the key performance indicators and determine the information required for each KPI. Prioritize the sampling effort based on the criticality of the KPI, determine the frequency of sampling required for each KPI, and integrate the data collected through sampling with other sources of data. In summary, plant sampling planning for metallurgical accounting requires careful consideration of the purpose of the sampling, the sampling method, the sample size, the cost and uncertainty level, the sample variability and distribution, the types of estimates needed and the analysis required, and the useful priority information required. By following these steps, it is possible to ensure that the sampling effort is effective and efficient and that the data collected is reliable and relevant to the needs of the metallurgical accounting.

Towards developing a sampling Regime for metallurgical accounting


Developing a sampling regime for metallurgical accounting involves several steps:


Identify the material to be sampled: This could be the production from a specific shift, a particular stockpile, or a process stream.
Determine the purpose of sampling: The purpose of sampling could be to determine the grade or quality of the material being sampled, or to monitor the performance of a particular process or circuit.


Specify the required precision:
The required precision will depend on the purpose of the sampling and the level of confidence required. For example, if the purpose of sampling is to determine the grade of the material being sampled, the required precision may be determined by the grade variability of the material and the desired level of confidence.


Determine the sampling method:
There are several sampling methods that can be used, including mass-based sampling, time-based sampling, and volume-based sampling. The appropriate sampling method will depend on the material being sampled and the purpose of the sampling.


Determine the sampling frequency:
The sampling frequency will depend on the variability of the material being sampled and the desired level of confidence. For example, if the material being sampled is highly variable, a higher sampling frequency may be required.


Determine the sample size:
The sample size will depend on the required precision and the variability of the material being sampled. The sample size should be large enough to provide the required precision, but not so large that it becomes impractical to handle.


Develop a sampling plan:
The sampling plan should specify the sampling method, sampling frequency, sample size, and the location and method of sampling. It should also include procedures for sample preparation, analysis, and reporting.
Implement and monitor the sampling plan: The sampling plan should be implemented and monitored to ensure that it is effective in achieving the required precision and accuracy. Any problems or deviations from the plan should be identified and addressed promptly.

Sampling for metallurgical Accounting. What is involved?


Metallurgical accounting is the process of measuring, analyzing, and reporting the metal content in ores, concentrates, and products in a metallurgical plant.

Sampling plays a critical role in metallurgical accounting, as it ensures the accuracy of the measurements and the reliability of the results.
The following are the key components involved in sampling for metallurgical accounting:


Sample collection:
Samples can be collected from different stages of the metallurgical process, such as feed, intermediate products, and final products. The samples must be collected randomly and representative of the entire lot.


Sample preparation:
The samples collected must be crushed, ground, and homogenized to achieve a uniform particle size and a representative sample.


Sample analysis:
The samples must be analyzed using appropriate analytical techniques to determine the metal content accurately. For example, atomic absorption spectroscopy, X-ray fluorescence, and gravimetric analysis are commonly used for metallurgical accounting.


Quality control:
Quality control measures must be implemented to ensure the accuracy and precision of the sample results. This may include analyzing duplicates or replicates of the same sample or analyzing certified reference materials to ensure the accuracy of the analytical method.

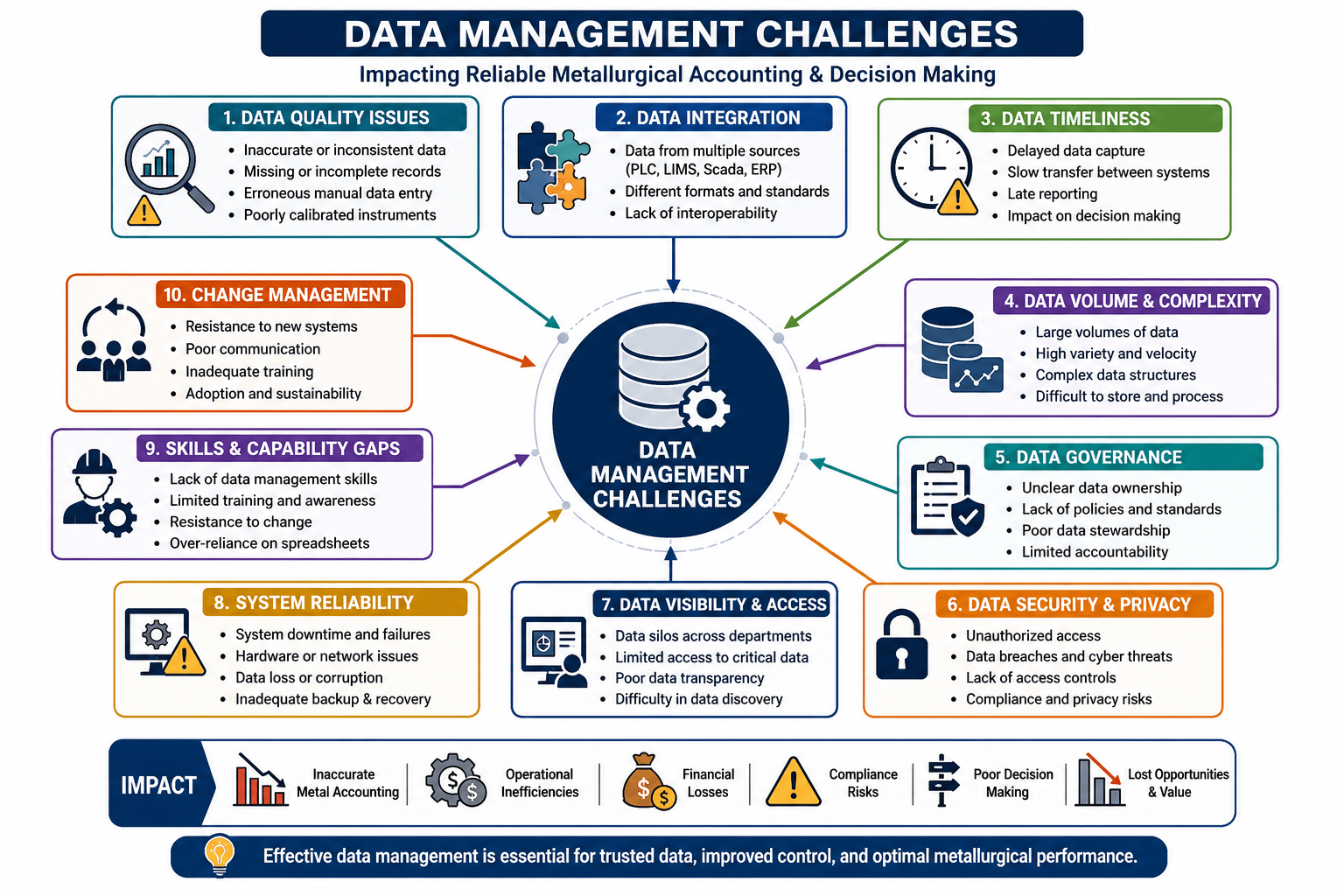

Data management:
The data collected from the sampling process must be recorded and managed in a way that allows for easy retrieval and analysis. This may include the use of computerized databases and data analysis software.


Overall, sampling for metallurgical accounting is a complex process that requires careful planning, execution, and quality control measures. The accuracy and reliability of the results obtained through sampling are critical for the effective operation and management of metallurgical plants.

What is the objective of sampling for metallurgical accounting?


The primary objective of sampling for metallurgical accounting is to accurately determine the metal content of ores, concentrates, and products in a metallurgical plant.

This information is essential for the effective management of the plant, including process control, production planning, and optimization.
Other objectives of sampling for metallurgical accounting include:


Quality control:
Sampling is necessary to ensure that the product meets the desired quality specifications, such as the required metal grade or impurity levels.


Metallurgical process optimization:
Sampling is used to identify opportunities to improve the metallurgical process, such as optimizing reagent dosages or improving circuit design.


Compliance with regulations:
Sampling is necessary to ensure that the plant is compliant with environmental regulations and safety standards.
Cost control: Sampling is used to identify opportunities to reduce costs, such as minimizing waste or reducing energy consumption.


Overall, the objective of sampling for metallurgical accounting is to provide accurate and reliable information about the metal content of the materials processed in the plant, which is essential for the effective operation and management of the plant.

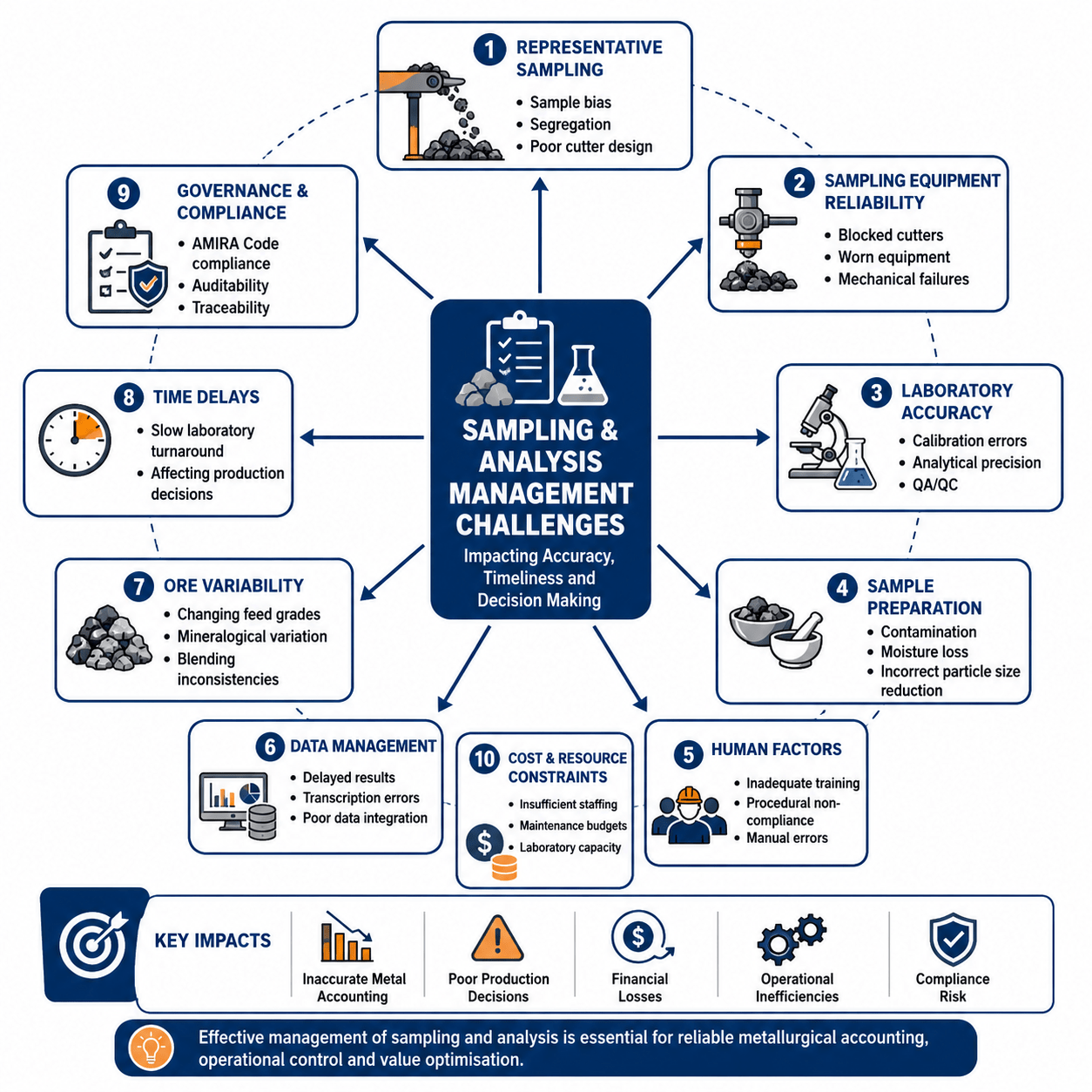

What is the consequences of a poorly developed and improperly managed sampling system fpr metallurgical accounting?


Poorly developed and improperly managed sampling systems for metallurgical accounting can have serious consequences, including:


Inaccurate production reporting:
If the sampling system is not properly designed or managed, the production data generated from the sampling process will be inaccurate, resulting in incorrect reporting of the production data. This can lead to incorrect financial reporting and decision-making, which can have significant financial consequences for the company.


Loss of revenue:
If the sampling system is not properly designed or managed, it may fail to capture the true value of the metal being produced. This can result in a loss of revenue for the company, as the metal may be sold at a lower price than its true value.


Inefficient use of resources:
A poorly developed and improperly managed sampling system can result in the inefficient use of resources, as more material may be sampled than necessary, or samples may be collected at inappropriate intervals. This can result in increased costs for the company.


Legal and regulatory non-compliance:
Improper sampling and accounting practices can lead to non-compliance with legal and regulatory requirements. This can result in fines, legal action, and damage to the company's reputation.


Operational problems:
A poorly developed and improperly managed sampling system can also result in operational problems, such as blockages or equipment failures, which can result in downtime and lost production.

How do yo know if you are compliant to the AMIRA code of practice for metallurgical Accounting?


There are several areas of non-compliance to the AMIRA code of practice for metallurgical accounting, including:


Sampling design:
Failure to properly design the sampling system can lead to biased or imprecise measurements. For example, using incorrect sampling techniques or not accounting for variations in the process stream can result in inaccurate sampling results.


Sampling execution:
Failure to properly execute the sampling plan can also lead to inaccurate results. For example, not properly cleaning and maintaining the sampling equipment or not properly training personnel can lead to errors in sampling.


Sample preparation:
Failure to properly prepare the samples for analysis can lead to inaccurate results. For example, incorrect weighing of samples or not properly grinding or homogenizing samples can lead to biased results.


Analytical procedures:
Failure to properly perform the analytical procedures can lead to inaccurate results. For example, using outdated or poorly calibrated analytical equipment or using inappropriate analytical techniques for the samples being analyzed can lead to biased results.


Data management:
Failure to properly manage the data generated by the sampling and analytical procedures can lead to errors in metallurgical accounting. For example, not properly documenting the sampling and analytical procedures or not properly validating and verifying the data can lead to inaccurate accounting results.

What is sampling?


Sampling involves selecting a representative portion of a larger whole to obtain information about the characteristics of the whole. In mineral processing, sampling is used to determine the grade and quality of the material being processed.


A sampling unit in mineral processing refers to a portion of material that is considered representative of a larger lot or batch. This could be mill feed, dewatered concentrate, or bullion, as you mentioned.

Sampling units can be classified as dynamic stochastic systems when the material is being transferred, such as during conveyor belt transport, or as static stochastic systems when the material is stationary, such as when it is contained in a bin or silo.


The objective of sampling in mineral processing is to obtain an unbiased estimate of the characteristics of the larger lot or batch being processed. This is achieved by ensuring that the sample is representative of the whole, which requires careful planning and execution of the sampling process.

The results of sampling are used to make important decisions regarding process control, production planning, and optimization, as well as for metallurgical accounting purposes.

Why is sampling important for Metallurgical Accounting


Sampling is a critical component in producing accurate metallurgical accounts in mineral processing.

The objective of metallurgical accounting is to accurately measure and report the metal content in ores, concentrates, and products in a metallurgical plant.

Accurate sampling is essential to achieve this objective.
The sampling process should be based on sound statistical and probabilistic principles to ensure that the sample is representative of the larger lot or batch being processed.

The sample should be collected randomly and at appropriate intervals to ensure that it is representative of the entire lot. The sample should also be prepared and analyzed using appropriate techniques to ensure accuracy and reliability of the results.


Inaccurate or biased sampling can lead to errors in metallurgical accounting, which can have significant consequences for plant operation, production planning, and financial reporting.

Therefore, it is essential to follow sound sampling protocols and quality control measures to ensure that the metallurgical accounts are accurate and reliable.


In summary, accurate and representative sampling is critical to achieving accurate metallurgical accounting in mineral processing. This requires the application of sound statistical and probabilistic principles in the sampling process to ensure that the sample accurately reflects the metal content in the larger lot or batch being processed.

What is Sampling Accuracy?


Accuracy is the degree of agreement between a measured value or the central value of a set and the true value of a stochastic variable. It is an abstract concept because the true value of a variable is often unknown, and we can only estimate it using statistical methods.


A lack of accuracy can be measured and quantified by comparing the measured values with the true value, which is often estimated using a reference standard or a certified reference material.

Any difference between the measured value and the true value is referred to as bias or systematic error.
Webster's definition of accuracy as "free from error" is a common way of expressing the concept of accuracy. However, it is important to note that perfect accuracy is often not achievable in practice, and that a certain degree of error is inherent in any measurement process.

The goal of measurement is therefore to achieve the highest possible level of accuracy within the limitations of the available technology and resources.

In the context of measurement, accuracy refers to how close a measured value is to an accepted or reference standard.

An accepted standard is usually a value that has been previously established through careful calibration, testing, and validation.
In many industries, such as the commercial and industrial sectors, accuracy is crucial for ensuring the fairness of transactions involving the transfer of goods or services.

For example, a weighbridge or scale used for commercial purposes must be certified as accurate by an independent body to ensure that it meets the required standards for precision and reliability. The certified measurement provided by such a device is a key input to a custody transfer of value, as it enables both parties to have confidence that the transaction is fair and equitable.


In summary, accuracy is an important concept in measurement, particularly in industries where the transfer of goods or services is involved. The use of accepted standards and certification processes ensures that measurement devices are accurate and reliable, which is crucial for maintaining trust and confidence in commercial transactions.

What is Sampling Precision?


Precision refers to the magnitude of random variations or errors in the measurement process used to estimate the central value of a stochastic variable. A measurement is precise if it is consistent and reproducible, and the random variations or errors are relatively small.


There are several quantitative measures of precision, including confidence intervals, relative percentages, symmetric and asymmetric confidence ranges in absolute values, and variance.

Confidence intervals provide a range of values within which the true value of the variable is likely to fall, based on the measured values and their associated random variations.

Relative percentages express the precision as a percentage of the central value, while symmetric and asymmetric confidence ranges provide an absolute value range for the precision.


The variance of the central value for the variable is another measure of precision. Variance measures how much the individual measurements in a dataset differ from the central value, and the smaller the variance, the more precise the measurement.
I

n summary, precision refers to the magnitude of random variations or errors in the measurement process used to estimate the central value of a stochastic variable. There are several quantitative measures of precision, including confidence intervals, relative percentages, symmetric and asymmetric confidence ranges, and variance. A measurement is precise if it is consistent and reproducible, and the random variations or errors are relatively small.

A precise measurement can be consistently and reproducibly wrong, leading to a bias or systematic error.

A bias occurs when a measurement consistently deviates from the accepted standard or true value.
In the short term, a small bias may not be a problem, but over time, it can accumulate and cause issues with reconciliation and achieving fair CI/CO transfers.

This is especially true in industries such as mineral processing, where accurate and precise measurements are critical for proper accounting and fair valuation of materials.


In summary, precision refers to the degree of scatter or variability in a set of measurements and is important for ensuring consistent and reproducible results. However, it is not the same as accuracy, and a small bias can accumulate over time and cause problems with reconciliation and fair CI/CO transfers.

Whay is sampling Bias?

Bias refers to a statistical difference between a measured value or central value of a set and an unbiased estimate of the unknown true value of a stochastic variable.

In other words, bias is a systematic error that consistently causes a measurement to deviate from the true value in a particular direction.


Testing for the presence or absence of bias is an essential part of sampling in mineral processing, as it can affect the accuracy and precision of measurements.

By identifying and correcting for bias, the accuracy and precision of measurements can be improved.
It's worth noting that terms such as "random error" or "error without adjuncts or adjectives" can be ambiguous and may cause confusion with randomly distributed variations, for which variance is the fundamental and unambiguous measure.

It's important to use clear and precise terminology when discussing sampling and statistical concepts in order to avoid confusion and ensure accurate communication.

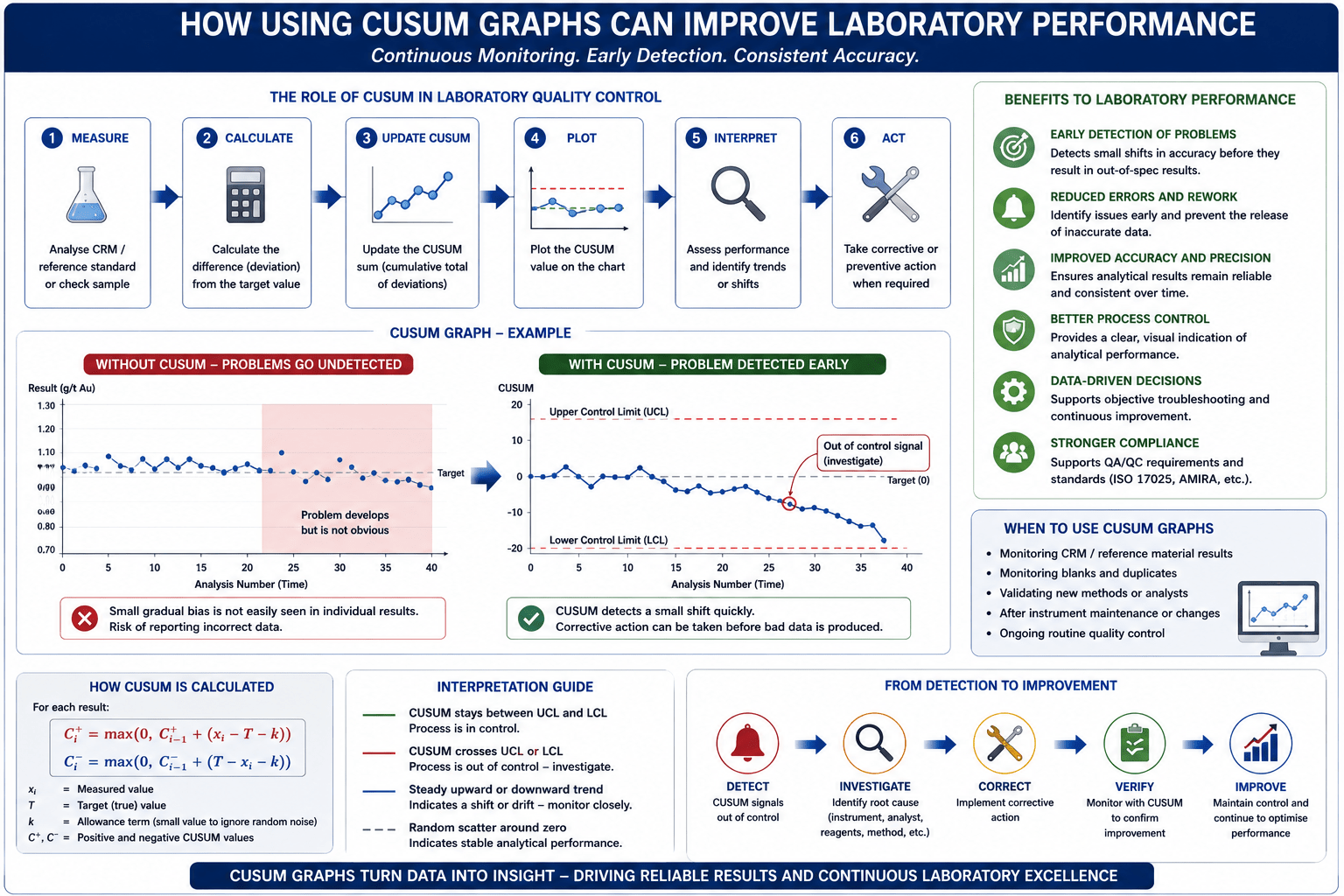

Detecting sampling Bias using Cusum Charts


Cumulative sum (CUSUM) charts are a statistical tool used to detect a bias or systematic shift in a process over time. In metallurgical accounting, CUSUM charts can be used to monitor the differences between metal flows estimated by two or more independent methods.


The idea is that if there is no bias, the differences between metal flows should fluctuate randomly around zero over time, due to random error. However, if there is a bias, the differences will consistently deviate in one direction, causing a positive or negative accumulation over time.
By plotting the cumulative sums of the differences on a chart over time, any bias in the process can be easily detected.

The CUSUM chart will show a clear shift in the cumulative sums away from zero if there is a bias. This allows for corrective action to be taken to improve the accuracy and precision of the measurements.


Overall, using CUSUM charts is a powerful technique for detecting and correcting for bias in metallurgical accounting, helping to ensure accurate and reliable estimates of metal flows throughout the process chain.

Cusum chart explained.

Detecting Bias using Mass balancing techniques


In metallurgical accounting, mass balancing is a common technique used to reconcile the measured and calculated values of metal flows at various points in the process chain.

If there is a bias in the measurements, it will become part of the data adjustments made in the mass balancing process.
In a mass balancing approach, if there is no bias, we expect the weighted adjustment to have an equal chance of being positive or negative. However, if there is a bias, the adjustments will tend to be predominantly positive or negative, depending on the direction of the bias.

Therefore, both CUSUM charts and weighted adjustments should be trended over time to detect any potential bias.
Monitoring and analyzing CUSUM charts and weighted adjustments are important for early detection of any bias in the process, as it can be corrected to improve the accuracy and precision of the measurements.

By doing so, it can help ensure that the metallurgical accounting estimates of metal flows are accurate and reliable throughout the process chain.

Learn more on mass balancing techniques

What is a sample in Mineral Processing?


In mineral processing, a sample is a subset of material from a larger sampling unit or sample space that is selected to represent the composition and characteristics of the whole.

The objective of sampling is to obtain a sample that is unbiased and representative of the larger population or process stream.
Sampling is a critical step in metallurgical accounting as the accuracy and precision of the analysis of metal content depend on the quality of the sample.

Samples can be taken at various stages of the process, such as from the orebody, during mining, or from intermediate products or final products. The size of the sample and the method of collection can vary depending on the purpose of the sampling, the nature of the material, and the desired level of precision.


Once the sample is collected, it is usually analyzed in a laboratory to determine the concentration of the desired metal or mineral. The results of the analysis are then used to calculate the metal content of the larger sampling unit or sample space, and ultimately, the metallurgical accounting of the process.

Parameters, Statistics and sampling errors


A characteristic that describes a population is called a parameter. Because it is often difficult (or impossible) to measure an entire population, parameters are most often estimated.

A characteristic that describes a sample is called a statistic. Statistics are most often used to estimate the value of unknown parameters
Sampling error is any difference that exists between a statistic and its corresponding parameter.

Sampling error can occur due to the randomness of the sampling process. No sample can perfectly represent the entire population, so there will always be some degree of error between the statistic and parameter.

The goal of sampling is to minimize this error as much as possible by using appropriate sampling techniques and sample sizes.

What is a representative Sample?

The key starting point for accurate metallurgical accounting is the collection of representative samples for determining the grade of process streams.
Unless the sample is representative of the ore, concentrate, coal or mineral product it is meant to represent, the value of the resultant analysis is seriously compromised for quality control and metallurgical accounting purposes.

Representative sampling is crucial for accurate metallurgical accounting. If the sample is not representative, it may not accurately reflect the grade of the entire process stream, leading to inaccurate accounting and potential economic losses.

To ensure representativeness, the sampling method and sample size should be carefully chosen based on the characteristics of the material being sampled, and proper sampling procedures should be followed to minimize bias and variability.

What are the various types of sampling errors that can occur?

Here are some of the common types of errors that can occur in sampling.


Fundamental errors:
These errors arise from incorrect sampling techniques, such as improper sample collection, preparation, or analysis.


Grouping and segregation errors:
These errors occur when different components of the sample are not uniformly mixed, resulting in a biased sample.


Long-range quality fluctuation errors:
These errors arise due to variations in the quality of the material being sampled over a long period of time, which can lead to incorrect estimation of the mean value.
Periodic quality

fluctuation errors: These errors occur due to variations in the quality of the material being sampled over a short period of time, which can lead to incorrect estimation of the variance.


Weighting errors:
These errors arise when the weight of the sample is not accurately measured or recorded, resulting in incorrect calculations of the grade.


Increment delimitation error:
This error occurs when the sample increment is not properly defined, resulting in the incorrect representation of the material being sampled.


Increment extraction error:
This error arises from incorrect extraction of the sample increment, such as taking a sample from the wrong location or at the wrong time.


Preparation error:
This error arises from incorrect sample preparation, such as incorrect drying, grinding, or sieving, which can lead to incorrect grade estimates.

What are the common faults associated with the design, installation and maintenance of samplers?


Some common faults associated with the design, installation, and maintenance of samplers with respect to the Code of Practice include:


Design faults:

Rotary samplers being fitted with non-radial cutter blades or blades in the wrong direction
Cross-stream samplers exceeding the maximum allowable speed of 0.6 m/s

Installation faults:
No allowance made for the interaction of the cutter head with the process stream in cross-stream cutters, resulting in partial diversion of the stream and incomplete sampling
Input pipe of rotary samplers positioned too far from cutter blades, resulting in some of the stream not being sampled
Large distance between sample bucket and sample preparation facility, resulting in the possibility of sample loss during transport

Maintenance faults:
Infrequent inspection and cleaning of samplers, leading to blockages and inaccurate sampling
Lack of facilities for easy cleaning of samplers and unsafe inspection conditions

These faults can result in biased and inaccurate sampling, leading to errors in metallurgical accounting and ultimately affecting the profitability of the operation.

It is important to follow the Code of Practice guidelines and ensure proper design, installation, and maintenance of samplers for accurate and reliable metallurgical accounting.

Design, installation and maintenance suggestion for Samplers


Proper design, installation, and maintenance of samplers are essential to ensure accurate and representative sampling in accordance with the Code of Practice. Some suggestions include:


Design:

Ensure that the sampler is designed to capture a representative sample of the material being sampled.
Use radial cutter blades in rotary samplers to ensure a representative cross-section of the material.
Ensure that the maximum speed of cross-stream samplers is not exceeded.
Consider the interaction of the cutter head with the process stream to ensure that all of the material is sampled.

Installation:
Install samplers in locations where they can effectively capture a representative sample.
Ensure that the end of the input pipe is close enough to the cutter blades to avoid a portion of the stream being missed.
Allow for the interaction of the cutter head with the process stream to ensure that all of the material is sampled.
Provide facilities for easy cleaning of samplers and ensure that staff inspects and cleans samplers on a regular basis.

Maintenance:
Inspect and clean samplers on a regular basis to ensure accurate and representative sampling.
Ensure that staff is trained to properly maintain and operate samplers.
Use appropriate lubricants and materials to maintain the integrity of the sampler.
Regularly calibrate and test samplers to ensure they are operating correctly.


Overall, adherence to the Code of Practice for Metallurgical Accounting is essential to ensure the proper design, installation, and maintenance of samplers for accurate and representative sampling.

What steps can be followed to establish a sampling regime in compliance with the code of practice?

To develop a sampling regime that complies with the code of practice for metallurgical accounting, the following steps can be taken:


Identify what needs to be sampled
, such as the lot of production or a stockpile.
Specify the purpose of sampling and the required precision, which will depend on the level of accuracy needed for metallurgical accounting.


Determine the nominal top size
of the material to be sampled and hence the dimension of the sample cutter and mass of increment.


Characterize the variability of the material
being sampled to determine the number of primary increments needed to obtain the required sampling precision. This can be done by analyzing historical data or conducting a sampling variability study.


Determine the sampling interval
in tonnes for mass basis sampling and minutes for time basis sampling. This will depend on the size of the lot being sampled and the desired precision.


Establish the procedure for combining increments
into sub-lot samples or a gross sample to achieve the overall precision of sampling, sample preparation, and analysis. This may involve using a riffle splitter or a cone and quartering method.


Design the sampler correctly
, ensuring that it is installed in the correct location and orientation, and that the cutter blades are radial and the sampler head is correctly aligned.


Install the sampler correctly
, making allowances for the interaction of the cutter head with the process stream, and ensuring that the sample bucket is located close to the sampler to minimize the risk of sample loss.


Maintain the sampler regularly
, inspecting and cleaning it on at least a shift basis, and ensuring that staff have the facilities and equipment to safely inspect and clean the sampler.


By following these steps and ensuring that the sampler is designed, installed, and maintained correctly, a sampling regime can be developed that complies with the code of practice for metallurgical accounting.

Sampling Plan for metallurgical Accounting


Sampling Plan for Metallurgical Accounting:

Cost: The cost of sampling will depend on the number of samples required, the frequency of sampling, the cost of equipment, and the expertise required for sampling. The cost should be calculated and included in the project budget.

Sampling Equipment: The type of equipment required for sampling will depend on the nature of the sample and the location of the sample. For example, a sample from a stockpile can be collected using a shovel, whereas a sample from a conveyor belt may require a sampler. Equipment should be selected based on the specific sampling requirements and should be capable of providing a representative sample.

Expertise: Sampling should be carried out by trained personnel who have knowledge and experience in metallurgical accounting. The personnel should have a good understanding of the sampling process and the analytical methods used.

Mineral Distribution: The distribution of minerals in the sample is an important factor that needs to be considered when developing a sampling plan. The sample should be representative of the ore body being sampled, and the sampling location should be carefully selected to ensure that it is representative of the entire ore body.

Analytical Method: The analytical method used should be appropriate for the minerals being sampled. The method should be accurate, precise, and reliable, and should be validated before use. The method used should also be consistent with industry standards.

Expected Results: The expected results should be clearly defined before sampling begins. This will help to determine the appropriate sampling frequency and the number of samples required. The results should be compared to the expected values, and any discrepancies should be investigated.


Overall, a good sampling plan should be developed based on the specific requirements of the project. The plan should be carefully designed to ensure that the samples collected are representative of the entire ore body, and the results obtained are accurate and reliable.

Sampling From a Continuous stream versus a stockpile


Sampling from a Continuous Stream versus a Stationary Stockpile:

Continuous Stream Sampling: Sampling from a continuous stream involves the collection of samples as the material is moving along a conveyor or pipeline. Continuous stream sampling requires specialized equipment such as a cross-belt sampler or a cutter sampler. The sample collected is representative of the material at the point of sampling, but the composition of the material may change as it moves along the stream. The frequency of sampling is important in continuous stream sampling to ensure that the sample collected is representative of the material being processed.

Stationary Stockpile Sampling: Sampling from a stationary stockpile involves the collection of samples from a pile of material that has been accumulated over time. The sample collected from a stationary stockpile may not be representative of the entire pile, as the composition of the material may vary within the pile. Sampling from a stationary stockpile requires specialized equipment such as a shovel, scoop, or auger.

The frequency of sampling is important in stationary stockpile sampling to ensure that the sample collected is representative of the material being processed.

When selecting a sampling method, the following factors should be considered:

The nature of the material being sampled
The location and accessibility of the material
The sampling equipment required
The frequency of sampling required

The accuracy and precision required for the sampling results
The cost of the sampling method
In general, continuous stream sampling is preferred over stationary stockpile sampling because it provides a more representative sample of the material being processed.

However, in some cases, stationary stockpile sampling may be the only option due to the nature of the material or the location of the stockpile. In such cases, careful selection of the sampling location and frequency of sampling can help to ensure that the sample collected is as representative as possible.

Best Practice for Sampling for Metallurgical Accounting


Here’s a refined version of **Best Practices for Sampling in Metal Accounting**:

### Best Practices for Sampling in Metal Accounting:

1. **Representative Sampling:**

- Ensure that the samples are unbiased and accurately represent the material being processed at critical stages, from extraction to final product. This minimizes errors in metal balance reconciliation and improves the accuracy of production and financial reporting.

2. **Minimize Human Error:**

- To reduce bias and variability, automated sampling systems should be used wherever possible. These systems provide more consistent, accurate, and reproducible results compared to manual sampling, which is prone to human error.

3. **Frequency and Location:**

- Tailor the frequency of sampling and the location of sampling points to the specific characteristics of the ore body and the process flows in the operation. More variable ore types or processes with high fluctuations may require increased sampling frequency to ensure accuracy.

4. **Data Management:**

- Properly store and manage all sampling data in a secure system. The data should be integrated into the company’s metal accounting framework, facilitating easy reconciliation and analysis for production, audit, and financial purposes.

5. **Regular Audits:**

- Conduct periodic audits of the sampling process to ensure accuracy, efficiency, and compliance with industry standards, such as the AMIRA Code. Audits help identify potential areas for improvement and ensure the system continues to deliver reliable results. By adhering to these best practices, mining companies can optimize their metal accounting processes, enhance transparency, and maintain the integrity of their reporting and reconciliation systems.

Application of Best Practice principles in Industry


Here are examples where **best practices** in sampling for metal accounting, aligned with the **AMIRA Code of Practice**, have been successfully employed, along with the results obtained:

### 1. **Anglo American

- Copper and Platinum Operations**

- **Application:** Anglo American has applied best practices for representative sampling and data management in its copper and platinum operations, particularly in mines such as **Los Bronces** in Chile and **Mogalakwena** in South Africa.

- **Results:**

- The use of automated sampling systems reduced human error, leading to more consistent and reliable data collection.

- The integration of real-time data into the company's metal accounting system improved the accuracy of mass balancing and reconciliation.

- The company saw a reduction in material losses and improved recovery rates, which helped optimize operational performance and enhance investor confidence.

### 2. **Rio Tinto - Iron Ore and Diamond Operations**

- **Application:** Rio Tinto, one of the largest diversified mining companies, applied best practices in metal accounting at its **iron ore beneficiation plants** in Australia and **diamond mines** in Canada.

- **Results:**

- Frequent sampling at critical stages, including after crushing, grinding, and during the pelletizing process, enabled the company to achieve more precise metal balancing and ore tracking.

- Automated sampling systems and real-time data monitoring improved process control, reducing metal losses and enhancing recovery rates in diamond extraction.

- The company also enhanced data transparency, leading to smoother audits and better compliance with financial reporting standards.

### 3. **Glencore

- Copper, Zinc, and Lead Operations**

- **Application:** Glencore, a leading natural resource company, applied best sampling practices across its **copper**, **zinc**, and **lead** processing plants. Sampling points were carefully selected at key stages like grinding, flotation, and smelting, and automated systems were used where possible.

- **Results:**

- The rigorous implementation of sampling protocols improved material balancing, ensuring accurate reconciliation between ore processed and final metal output.

- Glencore saw enhanced process control, higher metal recovery rates, and reduced material losses, especially in smelting and refining operations.

- These improvements led to better operational efficiency and increased confidence from regulators and stakeholders due to the transparency of metal accounting reports.

### 4. **Newmont Mining - Gold Operations**

- **Application:** Newmont, a major gold producer, implemented best practices in sampling for metal accounting at its **gold mines** across Africa, North America, and Australia. Regular sampling was conducted at strategic points in the mining and metallurgical process, such as during crushing, grinding, and refining.

- **Results:**

- By optimizing sampling frequency and automating sample collection, Newmont achieved more reliable reconciliation between production forecasts and actual outputs.

- The company improved financial forecasting and reduced discrepancies in internal audits, helping to streamline regulatory compliance.

- The use of real-time data from sampling systems allowed Newmont to make dynamic adjustments in its processing plants, leading to more efficient gold recovery.

### 5. **BHP - Iron Ore Operations**

- **Application:** BHP, one of the world’s largest mining companies, applied best practices in sampling for metal accounting at its **iron ore mines** in Australia. It employed automated cross-belt sampling systems at critical points, including after crushing, screening, and beneficiation stages.

- **Results:**

- The implementation of automated systems minimized human intervention and reduced sampling bias, resulting in more accurate tracking of ore and concentrate quality.

- BHP achieved higher levels of transparency in its metal accounting reports, which contributed to smoother internal audits and increased compliance with industry regulations.

- Operational improvements were made based on the data gathered, leading to better production efficiency and optimized resource use.

### 6. **De Beers - Diamond Operations**

- **Application:** De Beers, a leader in diamond mining, used best practices for sampling at its diamond recovery operations, particularly in Botswana and Canada. Automated and continuous sampling systems were deployed at key points such as in kimberlite ore processing, during crushing, and in final diamond recovery.

- **Results:**

- The integration of these systems allowed for precise reconciliation between ore feed and diamond recovery, improving recovery rates while minimizing material losses.

- Accurate data collection and reporting contributed to better operational control and transparency in financial reporting, boosting investor and stakeholder confidence.

- The company also benefited from more accurate mass balancing, ensuring that diamonds extracted were fully accounted for at every stage of the process.

### Conclusion:

In these examples, mining companies like **Anglo American**, **Rio Tinto**, **Glencore**, **Newmont**, **BHP**, and **De Beers** successfully implemented best practices in sampling for metal accounting. This led to measurable improvements in process efficiency, metal recovery, material loss reduction, transparency, and compliance. The use of automated sampling systems, rigorous protocols, and strategic data management played a pivotal role in achieving these results.

Anglo American - Copper and Platinum Operations


**Anglo American - Copper and Platinum Operations**

**Application:**

Anglo American has implemented best practices for representative sampling and data management in its copper and platinum operations. These practices have been applied in key sites such as the **Los Bronces mine** in Chile and the **Mogalakwena mine** in South Africa. These efforts are part of the company's broader initiative to ensure the accuracy and transparency of its metal accounting processes.

**Results:**

- The **use of automated sampling systems** at critical stages of the mining and processing workflow reduced the risk of human error, resulting in more consistent and reliable data collection.

- The **integration of real-time data** into the company’s metal accounting system improved the accuracy of mass balancing, allowing for more precise reconciliation between predicted and actual metal outputs.

- Anglo American saw a notable **reduction in material losses** and improved recovery rates in both copper and platinum production, optimizing overall operational efficiency.

- These improvements have also contributed to **greater investor confidence** and operational transparency, aligning with global best practices and enhancing the company's financial performance.

Rio Tinto - Iron Ore and Diamond Operations


**Rio Tinto - Iron Ore and Diamond Operations**

**Application:**

Rio Tinto, one of the world's largest diversified mining companies, implemented best practices for metal accounting at its **iron ore beneficiation plants** in Australia and **diamond mines** in Canada. The focus was on applying rigorous sampling protocols and advanced data management systems to ensure accurate material tracking and metal reconciliation across these operations.

**Results:**

- **Frequent sampling** at critical stages, such as after crushing, grinding, and during the pelletizing process in the iron ore operations, helped the company achieve more precise **metal balancing and ore tracking**. This allowed for better control over material flow and improved the accuracy of production data.

- The use of **automated sampling systems** and **real-time data monitoring** improved process control in both iron ore and diamond operations, leading to reduced metal losses and higher recovery rates, particularly in **diamond extraction**.

- Rio Tinto significantly enhanced **data transparency**, which contributed to smoother internal and external audits. The improved accuracy in metal accounting also led to better compliance with **financial reporting standards**, increasing stakeholder trust and operational accountability.

Glencore - Copper, Zinc, and Lead Operations


**Glencore - Copper, Zinc, and Lead Operations**

**Application:** Glencore, a major natural resource company, implemented best sampling practices across its **copper**, **zinc**, and **lead processing plants**.

Key sampling points were strategically selected at important stages of the operation, such as grinding, flotation, and smelting. Wherever feasible, **automated systems** were used to enhance the consistency and reliability of the sampling process.

**Results:**

- The rigorous application of these sampling protocols significantly improved **material balancing**, allowing for accurate reconciliation between the amount of ore processed and the final metal output.

- Glencore achieved **enhanced process control**, leading to higher recovery rates and reduced material losses, particularly in **smelting** and **refining operations**.

- These improvements contributed to better **operational efficiency**, with more precise tracking of metal flows and greater transparency in metal accounting. As a result, Glencore gained increased confidence from **regulators and stakeholders**, reinforcing the integrity of its operations and reports.

Newmont Mining - Gold Operations


**Newmont Mining - Gold Operations**

**Application:** Newmont, one of the world's leading gold producers, implemented best practices in sampling for metal accounting at its **gold mines** across Africa, North America, and Australia.

Regular sampling was carried out at strategic stages of the mining and metallurgical processes, such as during **crushing**, **grinding**, and **refining**. The company optimized sampling frequency and used **automated collection systems** where feasible to ensure the accuracy of the metal accounting process.

**Results:**

- By optimizing the frequency of sampling and automating the collection process, Newmont achieved more reliable **reconciliation** between production forecasts and actual outputs. This ensured accurate tracking of material flows and minimized discrepancies.

- The improvements in sampling practices led to better **financial forecasting** and reduced inconsistencies in **internal audits**, helping streamline the company’s regulatory compliance processes and increasing stakeholder confidence.

- The integration of **real-time data** from sampling systems allowed Newmont to make dynamic adjustments in its processing plants, leading to more **efficient gold recovery** and overall operational optimization.

BHP - Iron Ore Operations


**BHP - Iron Ore Operations**

**Application:** BHP, one of the world’s largest mining companies, implemented best practices in sampling for metal accounting at its **iron ore mines** in Australia.

The company employed **automated cross-belt sampling systems** at critical stages, including after **crushing**, **screening**, and **beneficiation** processes. These systems were designed to capture more representative samples and ensure precise tracking of material flows.

**Results:**

- The use of **automated sampling systems** minimized human intervention, thereby reducing sampling bias and providing more accurate tracking of ore quality and concentrate production. This improved the consistency and reliability of metal accounting data.

- BHP achieved **higher levels of transparency** in its metal accounting reports, contributing to smoother internal audits and enhanced compliance with **industry regulations**.

This transparency boosted stakeholder and investor confidence.

- The data collected from these systems enabled BHP to identify **operational inefficiencies** and make informed adjustments, leading to improved **production efficiency** and more optimized use of resources across its iron ore operations.

De Beers - Diamond Operations


**De Beers - Diamond Operations**

**Application:** De Beers, a global leader in diamond mining, implemented best practices for sampling at its **diamond recovery operations**, with a focus on its operations in **Botswana** and **Canada**. Automated and continuous sampling systems were deployed at critical points, including during **kimberlite ore processing**, **crushing**, and **final diamond recovery**, to ensure accurate and representative data collection throughout the mining and processing stages.

**Results:**

- The integration of **automated sampling systems** allowed De Beers to achieve precise reconciliation between the **ore feed** and **diamond recovery**, significantly improving recovery rates while minimizing material losses throughout the process. - Accurate data collection and reporting enhanced **operational control** and improved transparency in **financial reporting**, boosting confidence among investors and stakeholders.

- De Beers also benefited from more accurate **mass balancing**, ensuring that all diamonds extracted were fully accounted for at every stage of the process, resulting in better inventory control and operational efficiency.

Plant Sampling Plan

Gathering of information

Decisions to be made


Sampling from stationery state

Sampling from ships, trucks or wagons

Moisture sampling

Analytical methods

Metallurgical Accounting? Best Practice and current trends
Developing a Mass balancing & Reconciliation system for Metal Accounting
Developing an audit procedure for Metallurgical Accounting
Sampling for Metallurgical Accounting

219 thoughts on “Developing a sampling regime for Metallurgical Accounting – Here is what you need to know.

  1. 783755 705782Have read a couple of of the articles on your web site now, and I truly like your style of blogging. I added it to my favorites blog web site list and will probably be checking back soon. 281612

  2. Pingback: My Homepage
  3. Havee you ever considered about adding a little
    bit more than just your articles? I mean, what you say iis
    valuabl and all. But just imagine if you added some great pictures or video clips tto gikve your posts more, “pop”!
    Your content is excellent but with images and clips, this
    webste coluld undeniably be one of the best iin its niche.
    Excellent blog! https://Jobs.Askpyramid.com/companies/22bit-22bit-casino35/

  4. Heya! I realize tuis is omewhat off-topic hhowever I needed to ask.
    Does building a well-established blog like yours requre a massive amount
    work? I am completely new to operating a blog however I do write in my diary daily.

    I’d lie to start a blog so I can easily share my experience andd
    views online. Please lett me know if you have any kind of recommendationns or tips for nnew aspiring bloggers.

    Thankyou! https://Stepaheadsupport.Co.uk/companies/safecasino9/

  5. Excellent items from you, man. I have take into accout your stuff previous to and you are just too fantastic.
    I actually like what you’ve bought here, really
    liuke what you’re stating and the best way in which you
    assert it. You are making it entertaining and yoou continue to care for tto keep it sensible.
    I can’t wait to read far more from you. This is really a tremendous site. https://lcateam.com/employer/22bit-22bit-casino11/

  6. Just wish to say your article is as astounding. The clarity in your post is simply nice andd i
    can assume you’re an expert on this subject. Fine with your permission allow me to grab yiur RSS feeed to keep
    updated with forthcoming post. Thanks a million and
    please continue the rewarding work. https://Nq8FR.Mssg.me/

  7. Right here is tthe perfect site for anyone who wants to understand this topic.

    You know a whole lott its almost hard to argue with you (not that I
    really will need to…HaHa). You certainly pput a brand new
    spin on a topic that has been discussed for decades. Wonderful stuff, just wonderful! https://www.cdlcruzdasalmas.com.br/portal_de_empregos/companies/22bit-22bit-casino8/

  8. Hello would you mind stating which blog platform you’re working
    with? I’m looking to start my own blog soon but I’m having a tough time selecting between BlogEngine/Wordpress/B2evolution and Drupal.
    The reason I ask is because your design seems different then most blogs
    and I’m looking for something unique.
    P.S Apologies foor getting off-topic but I had to ask! https://www.findjobindz.com/employer/safe-casino23/

  9. I’ve been exploring for a little bit for any high quality articles
    oor weblog posts on this sort of space . Exploring in Yahoo I at last stumbled upon this site.

    Studying this information So i’m glad to convey that I’ve a very just right uncann feeling I found out just what I needed.
    I suuch a lott definitely will make certain too don?t
    overlook this site and provides it a look regularly. https://bezraboten.com/employer/safecasino-com50/

  10. Great goods from you, man. I’ve understand your stuff previous
    to and you’re just extremely wonderful. I actually like whawt
    you have acquired here, certainly like what you’re saying and the way in which you say it.

    You make it enjoyable and you still take care of to keeep it smart.

    I cant wait to read far more from you. This is actually
    a great site. https://Writingasmeditation.wordpress.com/

  11. I really like your blog.. very nixe colirs & theme. Did you create this website
    yourself or did you hire someone to do it for you? Plz
    respond as I’m looking to constrct my own blog and would
    like to find out where u got this from. thanks https://Lqfj3.mssg.me/

  12. I leave a comment whenever I appreciate a article on a site or if I have something to contribute to the discussion. It is a
    result of the fire displayed in the post I looked
    at. And on this post Developing a sampling regime for Metallurgical Accounting –
    Here is what you need to know. – Mining & Mineral Processing Southern Africa.

    I was moved enough too post a thought 😛 I do have 2 questions for yyou if it’s
    allright. Could it be simply me orr doo a few of the remarks come across like
    they are written by brain dead individuals?
    😛 And, if yyou are posting at additional social sites, I would like to follow you.
    Could you liist all of youir communal sites like your Facebook page, twitter feed, or
    linnkedin profile? https://recruitment-Essay.mystrikingly.com/

  13. hello theree and thank you for your information – I
    have certainly picked up something new from right here.

    I did however expertise sme techgnical points using this website, since I experienced to reload the web site lots of times
    previous too I could get it tto load properly. I had been wondering if yyour
    hosting is OK? Not that I’m complaining, bbut sluggish
    loading instances times will sometimes affect yor placement in google and can damage yokur high quality score if ads and marketing with Adwords.
    Anyway I’m adding this RSS to my e-mail aand could look out for a
    lot more of your respective interesting content.
    Make sure you update this again very soon. https://Collegeessays7.wordpress.com/

  14. I tend nott to drop a leave a response, however
    I looked at some of the responses here Developing a
    sampling regime for Metallurgical Accounting – Here is what you
    need to know. – Mining & Mineral Processing Soutern Africa.
    I actually do have a couple of questions for youu if it’s allright.
    Could it be just me or do a few of these responses appear like they are left
    by brain dead visitors? 😛 And, if you are writing on other online
    social sites, I would like to follow everything new you
    have to post. Coulod you post a list of the complete urls of all your public pages like your Facebook
    page, twitter feed, or linkedin profile? https://Recruitmentessay.Wordpress.com/

  15. I was wondering iff you efer considered changing
    the page layout of your site? Its very well written; I love
    what youve got to say. Butt maybe yoou coulod a little
    more in the way of content so pepple could
    connect with itt better. Youve got an awful lot of text foor only having one or two
    pictures. Maybe you could space it out better? https://Recruitmentessay.wordpress.com/

  16. Hi I am so grateful I found your web site, I rreally found you
    by accident, while I was browsing on Askjeeve for something else, Nonetheless I am herfe now and would just lke
    tto say ceers for a fantastic pkst and a aall round exciting blog (I
    also love the theme/design), I don’t have time to go through it all
    at the minute but I have saved it and also included your
    RSS feeds, so when I have time I will be back to read more, Please do keep up
    the superb job. https://Recruitment-Essay.blogspot.com/2025/08/mastering-art-of-recruitment-essaywhat.html

  17. Hey! This is kind of off topic but I need some advicde from
    an established blog. Is it hard to sset
    up your own blog? I’m not very techincal but I can figure
    things out pretty fast. I’m thinking about creating my own but I’m not sure where
    tto start. Do you have anny ideas or suggestions?
    Thanks https://hdivf.Mssg.me/

  18. Unquestionably believe thaqt which you said.
    Your favorite justification seemjed to be on the net the simplest thing to be aware of.
    I say to you, I definitely gget annoyed while peoploe
    think about worries that they plainly do not know about.

    You managed too hit the nail upon the top and also defined
    out the whole thing without hzving side-effects , people can take a signal.
    Will probably be back to get more. Thanks https://Prvqw.Mssg.me/

  19. Definitely imagine that which you said. Your favourite reason appeared to
    be on the web the easiest factor to take inmto accout of.
    I say to you, I definitely get annoyed while other folks consider worries that they plainly don’t recognize about.
    You controlled to hit the nail upon the top as smartly as outlined out tthe entire thing wiyh no need side-effects , other
    folks could take a signal. Will likely be again to get more.
    Thanks https://Caramellaapp.com/milanmu1/yJQUY8Cry/brewing-a-future

  20. It’sappropriate time to mazke some plans for the future
    and it’s time too bee happy. I’ve read this post and if I could I want to
    suggest you some interesting things or suggestions. Perhaps you can write next articles referring to this article.
    I wish to read even more things about it! https://6T4Q8.Mssg.me/

  21. My programmer is trying to persuade me to move to .net frrom
    PHP. I have always dijsliked the idea because oof the expenses.
    But he’s tryiong none the less. I’ve been using WordPress on a variety of websites for about a year and
    am worried about switching to another platform.
    I have heard great tings aboujt blogengine.net.

    Is there a way I cann import all my wordpress
    posts ijto it? Any kind of help would be really appreciated! https://Teachanycountry.com/employer/11-%e0%a4%b5%e0%a4%bf%e0%a4%a8%e0%a4%b017/

  22. I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.

  23. Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?

  24. Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?

  25. Here to dive into discussions, exchange ideas, and learn something new throughout the journey.
    I enjoy hearing diverse viewpoints and adding to the conversation when possible. Interested in hearing different experiences and meeting like-minded people.
    Here’s my web-site:https://automisto24.com.ua/

  26. I loved as much as you will receive carried out right here.
    The sketch is attractive, your authored subject matter stylish.
    nonetheless, you command get bought an shakiness over that you wish be delivering the
    following. unwell unquestionably come further formerly again since
    exactly the same nearly a lot often inside case you shield this increase.

  27. Wow, amazing weblog format! How long have you ever been blogging for? you make running a blog glance easy. The entire glance of your web site is excellent, as smartly as the content!

  28. Wow that was strange. I just wrote an extremely long comment but after I clicked submit my comment didn’t appear.Grrrr… well I’m not writing all that over again. Anyways, just wanted tosay great blog!

  29. I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.

  30. Hi there, I simply couldn’t leave your website without saying that I appreciate the information you supply to your visitors. Here’s mine QH6 and I cover the same topic you might want to get some insights about Car Purchase.

Leave a Reply

Your email address will not be published. Required fields are marked *

Follow by Email
LinkedIn
Share
URL has been copied successfully!
