The What where and How of Tailings
### **What Are Mine Tailings?**
1. **Composition**: - **Solid particles**: Fine particles of crushed rock or ore. - **Water**: Often a significant portion, used in the extraction process. - **Chemicals**: Residues from extraction methods like cyanide or sulfuric acid (depending on the mineral being mined).
2. **Hazardous Components**: - Heavy metals (arsenic, lead, mercury, etc.) - Sulfides that can lead to acid mine drainage (when exposed to water and oxygen).
### **Where Are Mine Tailings Found?**
1. **Tailings Storage Facilities (TSFs)**:
- **Dams**: Large engineered structures designed to store tailings.
- **Ponds**: Often lined with materials to prevent leakage into groundwater. - **Dry stack**: Tailings are dewatered, reducing the volume of water in storage and thus lowering the risk of dam failure.
2. **Location**: - Typically near the mine site, often in remote areas. Placement depends on terrain, climate, and local environmental considerations.
### **How Are Mine Tailings Managed?**
1. **Tailings Dams**: - Built to contain tailings in slurry form. Regular monitoring is essential to ensure structural integrity and prevent dam failure.
2. **Dry Stacking**: - Involves removing most of the water from the tailings before stacking them. This is more environmentally friendly but can be costly.
3. **Backfilling**: - Some tailings are returned to mined-out areas underground, reducing surface environmental impact.
4. **Reprocessing**: - In some cases, tailings are reprocessed to extract additional minerals, reducing the volume of waste and potentially recovering more value.
5. **Revegetation and Rehabilitation**: - After mining is completed, tailings facilities may be capped with soil and vegetation to stabilize the material and reduce erosion.
### **Environmental and Safety Concerns**:
1. **Tailings Dam Failures**: Can lead to catastrophic environmental disasters, releasing hazardous waste into ecosystems. 2. **Acid Mine Drainage**: Tailings that contain sulfides can generate sulfuric acid when exposed to water and air, contaminating local waterways. 3. **Dust Emissions**: Tailings that dry out can become airborne, spreading contaminants over wide areas. Effective management of tailings is crucial to reduce the risk of environmental damage and ensure safety during and after mining operations.
Tailings Management from a Geotechnical point of view.
### **1. Particle Size Distribution and Texture**
- **Fine-grained nature**: Tailings are typically fine-grained due to the crushing and grinding of ore in mineral processing, consisting mainly of silts and clays, though coarser fractions (sands) may also be present.
- **Grain size**: Tailings may range from very fine particles (clay size, <0.002 mm) to sand-size particles (up to 2 mm). This affects the permeability, compressibility, and strength of the tailings material.
- **Texture and shape**: Tailings often have angular particle shapes due to the mechanical grinding process.
### **2. Permeability and Hydraulic Conductivity**
- **Low permeability**: Fine tailings (like silts and clays) generally have low permeability, meaning water does not easily pass through them. This can lead to the formation of excess pore water pressures and influence the design of drainage systems.
- **Hydraulic conductivity**: A critical parameter for controlling water movement within tailings deposits. The finer the tailings, the lower the hydraulic conductivity, which can lead to drainage and stability issues, especially in wet climates or when tailings are stored in a slurry form.
### **3. Strength and Stability**
- **Undrained shear strength**: Tailings may have low shear strength, particularly when saturated, making them vulnerable to liquefaction or slope failure if not properly managed.
- **Liquefaction potential**: Fine-grained tailings are prone to liquefaction under seismic loading or rapid loading conditions. This phenomenon can cause a sudden loss of strength and catastrophic failure of tailings dams.
- **Consolidation behavior**: Tailings undergo consolidation over time under the weight of the material above, which can lead to settlement. Proper management of pore water pressures is necessary to maintain stability during consolidation.
### **4. Compaction and Density**
- **In-situ density**: The density of deposited tailings varies depending on the method of deposition (e.g., slurry, thickened, or dry stacking). Higher densities generally result in more stable deposits.
- **Void ratio**: The ratio of the volume of voids to the volume of solid particles. High void ratios in loose, fine-grained tailings can reduce strength and stability.
### **5. Drainage and Pore Water Pressure**
- **Excess pore water pressure**: In tailings storage facilities, inadequate drainage can lead to the buildup of pore water pressures, reducing the effective stress and shear strength, potentially leading to slope instability.
- **Drainage systems**: Effective drainage (e.g., use of underdrains or filter zones) is essential to control pore water pressures and enhance the stability of the tailings dam or embankment.
### **6. Erosion and Stability of Tailings Embankments**
- **Erosion susceptibility**: Due to the fine-grained nature of tailings, surface erosion can be a problem, particularly in areas exposed to wind or water. Geotechnical stabilization methods (e.g., capping with coarser material or vegetation) are often used to mitigate erosion.
- **Slope stability**: The stability of tailings embankments depends on the shear strength of the tailings and the geometry of the embankment slopes. Slope stability analyses are crucial to avoid failures caused by excessive loading, steep slopes, or poor drainage.
### **7. Settlement and Consolidation**
- **Long-term settlement**: Over time, tailings will consolidate and settle under their own weight. Proper estimation of settlement rates is important for post-closure management.
- **Consolidation properties**: The time-dependent process of pore water expulsion from tailings under load is influenced by the tailings' permeability and compressibility, requiring accurate predictions to avoid long-term stability issues.
### **8. Seepage and Environmental Impact**
- **Seepage control**: In geotechnical engineering, controlling seepage from tailings impoundments is critical to prevent contamination of surrounding groundwater and to maintain the stability of the structure. Impermeable liners, cut-off walls, or seepage collection systems are often used.
### **Geotechnical Design Implications**
- **Tailings dam design**: Requires detailed geotechnical analysis of the mechanical properties (e.g., shear strength, compressibility, permeability) of the tailings, considering factors like liquefaction, slope stability, and settlement.
- **Monitoring**: Ongoing geotechnical monitoring of tailings facilities, including pore water pressure, settlement rates, and shear strength, is essential to detect early signs of instability.
### **Geotechnical Testing of Tailings**
- **Laboratory tests**: Include grain size distribution analysis, Atterberg limits, permeability tests, consolidation tests, and shear strength testing to characterize the tailings material.
- **Field tests**: Standard Penetration Tests (SPT), Cone Penetration Tests (CPT), and borehole logging are used to assess the in-situ properties of tailings deposits and embankments. In summary, from a geotechnical perspective, mine tailings present challenges related to low strength, high compressibility, and potential for liquefaction, which must be carefully managed to ensure the stability of storage facilities and to mitigate environmental impacts.
The importance of Understanding the Minerals in Mine Tailings
### 1. **Environmental Impact and Contamination Risks**
- **Toxic Elements and Compounds**: Certain minerals in tailings may contain hazardous substances like arsenic, mercury, lead, or cadmium, which can leach into the environment. Sulfide minerals (e.g., pyrite) can lead to **acid mine drainage (AMD)**, which occurs when sulfides react with water and oxygen to produce sulfuric acid, lowering the pH of surrounding water and soil.
- **Water Contamination**: The presence of soluble heavy metals or metalloids (e.g., arsenic, selenium) in tailings can contaminate groundwater and surface water, affecting ecosystems and human health.
- **Airborne Pollution**: Certain fine particles (like those containing silica) can become airborne when tailings dry out, posing a health risk to local populations (e.g., dust inhalation and respiratory diseases).
### 2. **Tailings Management and Stabilization**
- **Mineral Behavior in Tailings**: Different minerals have varying mechanical and chemical properties that affect how tailings behave over time. For example, minerals with high clay content may result in low permeability but high susceptibility to shrink-swell behavior. This can influence the design of **tailings dams** and impoundments, as well as the drainage and consolidation characteristics of the tailings.
- **Geotechnical Stability**: Understanding which minerals are present helps assess risks like **liquefaction** (especially with fine-grained tailings containing clay or silt), which can affect the stability of tailings storage facilities. This is crucial for preventing catastrophic tailings dam failures.
### 3. **Reprocessing and Resource Recovery**
- **Valuable Residual Minerals**: Some tailings still contain valuable minerals that were not fully extracted during the initial processing. Advances in mining and processing technology, or changes in commodity prices, can make it economically viable to **reprocess tailings** for additional resource recovery. This includes metals such as gold, silver, copper, and rare earth elements.
- **Waste-to-Wealth Opportunities**: Re-mining and reprocessing tailings for residual minerals can reduce the volume of waste, recover economically valuable materials, and mitigate long-term environmental risks.
### 4. **Long-Term Site Rehabilitation and Closure**
- **Mineral Weathering**: Over time, minerals in tailings can chemically weather and break down. Understanding these minerals allows for predicting the long-term **stability** of the tailings and how they might react with the environment. For example, weathering of sulfide minerals can produce AMD, while carbonates may help buffer acidity.
- **Vegetation and Soil Development**: In some cases, mine tailings are capped and revegetated for rehabilitation. Knowing the mineral composition helps determine what amendments (e.g., lime to neutralize acidity) are necessary to support plant growth and create a stable, vegetative cover to prevent erosion.
### 5. **Chemical Compatibility in Tailings Storage**
- **Interaction with Liner Systems**: Tailings storage facilities often use liners or other barriers to prevent leaching of harmful substances into the environment. Certain minerals, such as sulfates or chlorides, can degrade these liners over time. Understanding the mineral composition helps ensure that storage designs are compatible with the chemicals present in the tailings. - **Interaction with Groundwater**: Tailings can interact with local groundwater systems, especially if stored in wet or permeable environments. Knowing the mineral content allows for predicting the long-term behavior of tailings in contact with groundwater, and whether they may release harmful substances.
### 6. **Predicting Acid Mine Drainage (AMD)**
- **Sulfide Minerals**: If tailings contain high concentrations of sulfide minerals (like pyrite), they pose a significant risk for **AMD** generation. Acid mine drainage can persist for decades or even centuries after mining operations have ceased, leading to severe environmental impacts. By identifying the sulfide content and mineral composition, proactive mitigation measures (e.g., alkaline additives, controlled drainage) can be designed to prevent AMD formation.
- **Neutralizing Minerals**: In contrast, tailings that contain minerals such as **carbonates** (e.g., calcite or dolomite) can help neutralize acidity, potentially reducing the risk of AMD. This information helps in managing tailings storage more effectively by balancing reactive minerals with neutralizing agents.
### 7. **Monitoring and Remediation Strategies**
- **Real-time Monitoring**: Knowing the mineral composition of tailings allows for the development of tailored **monitoring systems** that track the release of specific hazardous substances. Monitoring can focus on elements associated with certain minerals, helping to predict and detect early signs of environmental contamination.
- **Remediation Technologies**: Remediation of contaminated tailings sites is often mineral-specific. For example, phytoremediation (using plants to extract metals) works better with certain metals than others. Bioremediation techniques might focus on stabilizing specific contaminants through microbial activity, which depends on the chemical and mineral composition of the tailings.
### 8. **Compliance with Regulatory Requirements**
- **Environmental Regulations**: Many countries have strict environmental regulations concerning mine waste management. Understanding the mineral composition helps in compliance with these regulations by ensuring that hazardous substances are contained, and that effective measures are in place to prevent contamination.
- **Closure Plans**: A key component of mine closure plans is addressing the potential for contamination from tailings. A thorough understanding of the mineral composition ensures that closure strategies (e.g., encapsulation, water management) are robust and capable of mitigating long-term risks.
### Conclusion
In summary, understanding the mineral composition of mine tailings is essential for responsible tailings management, as it informs **environmental protection measures, geotechnical stability, resource recovery, remediation efforts**, and **long-term site closure** strategies. Proper knowledge of the mineral content helps predict and mitigate potential environmental risks, such as toxic metal leaching and acid mine drainage, while also offering opportunities to recover valuable residual minerals from tailings. This holistic understanding is key to sustainable mining operations and minimizing the long-term impacts of tailings disposal.
Tailings Managemnt and Stability
Below is a detailed breakdown of how mineral behavior impacts tailings management and stabilization:
### **1. Mineral Behavior in Tailings** Different minerals exhibit distinct **mechanical and chemical properties** that directly influence how tailings behave over time, affecting critical aspects such as permeability, consolidation, and long-term stability. These behaviors vary depending on the mineralogy of the tailings, and each type of mineral may interact with water, pressure, and environmental conditions differently.
#### **Clay Minerals**
- **Low Permeability**: Tailings with a high content of clay minerals, such as kaolinite or montmorillonite, tend to have **low permeability**. This makes water movement through the tailings very slow, which can reduce drainage efficiency and increase pore water pressure.
- **Shrink-Swell Behavior**: Some clay minerals, particularly **smectite** or **montmorillonite**, exhibit high shrink-swell potential. This can lead to significant volume changes with moisture fluctuations, causing surface cracking and potentially compromising the integrity of tailings embankments and liners.
- **Consolidation and Settlement**: The low permeability of clayey tailings often results in **slow consolidation** and long-term settlement. This can lead to delayed stabilization and unpredictable subsidence over time, influencing the design of TSFs and long-term monitoring requirements.
#### **Sulfide Minerals**
- **Acid Mine Drainage (AMD)**: Sulfide minerals like **pyrite** or **chalcopyrite** can undergo oxidation when exposed to air and water, leading to the formation of sulfuric acid, which results in **AMD**. AMD can significantly lower the pH of surrounding water, leaching heavy metals and contaminating local water bodies.
- **Environmental Hazard**: The chemical behavior of sulfide-rich tailings requires stringent monitoring and design of preventive measures (e.g., neutralization with alkaline materials) to control acid generation and prevent leaching of harmful substances into groundwater or surface water.
#### **Carbonate Minerals**
- **Acid Neutralization**: Tailings containing carbonate minerals, such as **calcite** or **dolomite**, can provide a natural **acid-neutralizing capacity**. These minerals react with acids, buffering the pH and reducing the impact of AMD. This neutralizing property can be beneficial in managing tailings with sulfide content by mitigating acid formation.
#### **Silicate Minerals**
- **Mechanical Stability**: Silicate minerals like **quartz** are mechanically stable and chemically inert. In tailings, their presence contributes to the overall stability of the material, providing resistance to chemical breakdown and maintaining structure over time.
- **Permeability**: While silicates are stable, their fine-grained nature in tailings can lead to **low permeability**, further impacting drainage and consolidation processes.
### **2. Geotechnical Stability** The geotechnical stability of tailings storage facilities depends heavily on the **mineralogical composition** of the tailings, particularly in terms of their shear strength, permeability, and response to external forces such as earthquakes or rainfall.
#### **Liquefaction Risk**
- **Fine-Grained Tailings**: Tailings with a high percentage of fine particles, such as clay or silt, are more prone to **liquefaction**. Liquefaction occurs when saturated tailings lose shear strength and behave like a fluid, often triggered by seismic activity or rapid loading. If liquefaction occurs in a tailings dam, it can result in catastrophic failure, releasing large volumes of tailings and contaminants into the environment.
- **Compaction and Strength**: Tailings composed of more stable and coarse-grained minerals, such as sand-sized particles or silicate minerals, have **higher shear strength** and are less susceptible to liquefaction. However, even these materials require proper compaction and drainage to maintain stability over time.
#### **Drainage and Pore Water Pressure**
- **Pore Water Pressure**: Minerals that create low-permeability conditions (e.g., clays) can trap water in the tailings, leading to the buildup of **pore water pressure**. This pressure reduces the effective stress in the material, decreasing its shear strength and increasing the risk of instability or failure. Effective drainage systems are essential to dissipate pore water pressure and prevent slope failure.
- **Long-Term Stability**: Understanding the permeability and hydraulic conductivity of the minerals in tailings is critical for designing effective drainage systems that control water flow and pressure. Proper drainage design ensures long-term stability and prevents issues like dam collapse or settlement.
#### **Consolidation and Settlement**
- **Time-Dependent Settlement**: The rate and extent of **settlement** in a tailings facility are influenced by the mineralogy of the tailings. Clay-rich tailings, for example, exhibit **slow consolidation** due to their low permeability, while sandy or coarse tailings consolidate more rapidly. Understanding these characteristics allows for better prediction of settlement behavior, which is crucial for the design and long-term maintenance of TSFs.
- **Design of Embankments**: Tailings with high shrink-swell potential require careful embankment design to prevent cracking and erosion. The design must accommodate the mechanical properties of the tailings to ensure the integrity of storage structures over time.
### **3. Design and Management of Tailings Storage Facilities** The physical and chemical behavior of minerals in tailings has a direct impact on the **design, construction, and management** of tailings dams and impoundments. Effective design incorporates knowledge of mineral properties to ensure long-term stability and to minimize environmental risks.
#### **Tailings Dam Design**
- **Material Selection for Embankments**: Embankments are often constructed using local materials or coarse tailings with known stability properties. The choice of material depends on the **mechanical behavior** of the minerals present in the tailings.
- **Drainage Systems**: The permeability and consolidation characteristics of the tailings influence the design of drainage systems, which are critical to controlling pore water pressure and preventing liquefaction or dam instability.
- **Capping and Closure**: In the closure phase, tailings facilities may be capped with inert or neutralizing materials to prevent water infiltration, erosion, and acid generation. The mineral composition of the tailings determines the appropriate capping material, whether for stabilization or for acid neutralization.
### **4. Monitoring and Risk Management**
- **Real-Time Monitoring**: Knowing the mineral composition of tailings helps in the development of monitoring systems that track factors like **pore water pressure**, **settlement rates**, and **chemical changes**. Real-time data from sensors can inform operators of potential stability issues, allowing for timely intervention.
- **Long-Term Risk Management**: The mineralogical composition provides insight into potential long-term risks, such as **post-closure environmental contamination** or structural failure. Geotechnical monitoring and proactive maintenance based on mineral behavior are essential for ensuring the ongoing safety and stability of tailings storage facilities.
### Conclusion
Understanding the mineral behavior in mine tailings is crucial for **tailings management and stabilization**. The mineral composition affects everything from **mechanical stability**, **permeability**, and **consolidation** to the **potential for acid mine drainage** and **liquefaction risks**. This knowledge guides the design of tailings storage facilities, ensuring both the structural integrity of the facility and the protection of the surrounding environment. Effective tailings management strategies, informed by mineral behavior, are essential to mitigate environmental risks, prevent catastrophic failures, and ensure the safe closure of mining sites.
The role of clay minerals in Mine Tailings Management
Below are the major aspects of how clay minerals impact tailings management:
### 1. **Permeability and Drainage**
- **Low Permeability**: Clay minerals, such as **kaolinite, montmorillonite**, and **illite**, typically have fine particle sizes and plate-like structures, which result in low permeability. This means that water passes through clay-rich tailings very slowly. Low permeability can be beneficial for minimizing seepage, but it also complicates **drainage** management. The slow movement of water can lead to the buildup of pore water pressure, increasing the risk of instability.
- **Water Retention**: Clays have a high capacity to retain water due to their large surface area and the ability to absorb water molecules between their layers. While this helps to control dust generation, it also means that clay-rich tailings can retain excess water, leading to higher water content within the storage facility.
### 2. **Consolidation and Settlement**
- **Slow Consolidation**: Due to their low permeability, clay-rich tailings undergo **slow consolidation**. Consolidation is the process where excess pore water is expelled from the tailings under pressure, causing the material to compact and settle. In clay-rich environments, this process can take a long time, resulting in delayed stabilization of the tailings.
- **Long-Term Settlement**: The slow consolidation of clay-rich tailings can lead to **long-term settlement** issues, affecting the design of tailings dams and impoundments. Predicting how much settlement will occur over time is crucial to maintaining structural stability.
### 3. **Shear Strength and Stability**
- **Low Shear Strength**: Clays generally have lower **shear strength** compared to coarser-grained materials like sand. In mine tailings, this means that clay-rich tailings may be more susceptible to slope failure or deformation, especially when water content is high or under loading conditions.
- **Liquefaction Risk**: While liquefaction is more commonly associated with sandy or silty materials, fine-grained tailings with high water content and low shear strength may also experience **liquefaction** under seismic loading or rapid shearing. Understanding the clay content helps assess these risks in tailings storage facilities (TSFs). - **Plasticity and Deformation**: Clays are typically more **plastic** than other minerals, meaning they can deform without cracking. However, this plastic behavior can also lead to issues such as creep, where the tailings slowly deform under constant pressure.
### 4. **Shrink-Swell Behavior**
- **Swelling and Shrinking**: Certain clay minerals, particularly **smectites** like **montmorillonite**, have a high capacity for **shrink-swell behavior**. These clays can expand significantly when wet and contract when dry. This expansion can destabilize tailings embankments, liners, or covers by causing **cracking** and compromising the integrity of these structures.
- **Volumetric Instability**: The potential for volumetric changes in clay-rich tailings requires careful management to prevent structural failures. In regions where wetting and drying cycles are common, shrink-swell behavior can create ongoing maintenance challenges.
### 5. **Acid Mine Drainage (AMD) Mitigation**
- **Barrier to AMD Migration**: The low permeability of clay minerals can act as a natural **barrier** to the migration of **acid mine drainage (AMD)** or contaminants from tailings into surrounding groundwater. In some cases, clay layers are deliberately used in tailings dams or capping systems to contain or slow down the movement of harmful substances.
- **Retention of Metals**: Clays can adsorb and retain heavy metals and contaminants due to their high surface area and negative charge. This can limit the mobility of harmful elements, but it also means that clay-rich tailings may act as **sinks for contaminants**, necessitating careful long-term management to prevent future releases.
### 6. **Erosion Control and Dust Suppression**
- **Surface Stabilization**: The water-retaining properties of clay minerals help in controlling **dust** on the surface of tailings storage facilities, as moisture keeps fine particles from becoming airborne. Dust suppression is an important aspect of tailings management, especially in dry and windy climates.
- **Erosion Resistance**: Clays can form relatively cohesive surfaces, reducing the likelihood of surface erosion. However, once eroded, fine clay particles can be easily transported by wind or water, creating potential environmental hazards downstream or in surrounding areas.
### 7. **Liner and Cap Design in TSFs**
- **Liner Material**: Clay is often used as a **liner material** in tailings storage facilities because of its low permeability. **Bentonite**, a type of clay, is especially valued for its swelling properties, which create a tight seal against water movement. However, the behavior of clay in liners must be carefully monitored to ensure it maintains its impermeability over time and under changing conditions.
- **Cap Design**: In tailings closure and rehabilitation, clay-rich materials can be used as part of the **capping** system to minimize water infiltration and reduce AMD generation. A well-designed clay cap can isolate the tailings from surface water, limiting environmental impacts.
### 8. **Tailings Reprocessing and Resource Recovery**
- **Impact on Reprocessing Efficiency**: Clay minerals can interfere with the **reprocessing of tailings** by complicating the separation of valuable metals from the waste. Their fine-grained nature and water retention can clog separation equipment or reduce the efficiency of flotation and leaching processes. Tailings with high clay content may require additional steps in processing to ensure effective recovery of any remaining valuable minerals.
### 9. **Geotechnical Monitoring and Management**
- **Ongoing Monitoring**: Tailings facilities with high clay content require **continuous geotechnical monitoring** to track **settlement rates**, **pore water pressure**, and **shear strength**. This ensures that any early signs of instability, such as excessive pore pressure buildup or slow drainage, are detected and addressed before they lead to larger issues.
- **Dynamic Management**: Due to the time-dependent behavior of clays, the management of clay-rich tailings is dynamic. Regular inspections, real-time data collection, and adaptive management strategies are necessary to ensure that the facility remains stable and safe over the long term.
### Conclusion
Clay minerals play a **critical role** in mine tailings management due to their low permeability, water retention capacity, shrink-swell behavior, and low shear strength. While these properties can help reduce seepage and control dust, they also pose significant challenges related to drainage, consolidation, stability, and long-term environmental risks. Proper understanding and management of clay-rich tailings are essential to ensure the structural integrity of tailings storage facilities and to mitigate environmental hazards such as acid mine drainage and metal leaching.
The role of sulphide minerals in Mine Tailings Management
Below is an overview of the role sulfide minerals play in mine tailings management:

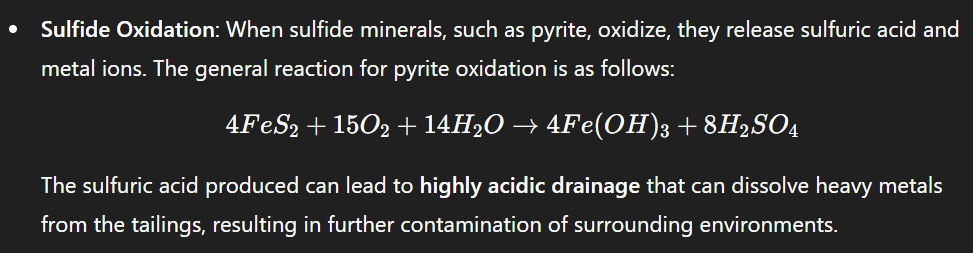

### 1. **Acid Mine Drainage (AMD) Generation** One of the most significant challenges in managing tailings containing sulfide minerals is their tendency to generate **acid mine drainage (AMD)** when exposed to water and oxygen. This chemical reaction involves the oxidation of sulfides, leading to the production of sulfuric acid, which lowers the pH of surrounding water and soil, causing:
- **Metal Leaching**: The acid generated from sulfide oxidation can leach out **toxic metals** such as arsenic, lead, mercury, and cadmium from the tailings. These metals, which are often associated with sulfide minerals, can contaminate groundwater, rivers, and soils, posing significant risks to ecosystems and human health.
### 2. **Environmental Contamination and Toxicity** - **Water Contamination**: AMD from sulfide-containing tailings can severely impact water bodies by reducing pH and increasing the concentration of dissolved metals. Contaminated water can harm aquatic life, disrupt ecosystems, and make water unsafe for human consumption. The **long-lasting** nature of AMD means that contamination can persist for decades or even centuries.
- **Soil Contamination**: Sulfide-rich tailings can also lead to the contamination of soils in nearby areas. Toxic metals leached from the tailings can accumulate in the soil, making it unsuitable for agriculture or natural vegetation. The acidic conditions can also prevent plants from growing, reducing the potential for natural revegetation and reclamation of mine sites.
### 3. **Geotechnical Stability** The chemical and physical processes triggered by sulfide oxidation can also impact the **geotechnical stability** of tailings storage facilities (TSFs). As sulfides oxidize and produce acid, the tailings material can undergo changes that affect its structural integrity.
- **Loss of Strength**: The chemical weathering of sulfide minerals in tailings can lead to the **weakening of tailings material**, reducing its shear strength and increasing the risk of slope instability. This weakening effect is compounded in the presence of high pore water pressures or seismic activity.
- **Pore Water Pressure and Drainage**: AMD generation often produces acidic and metal-laden water, which can accumulate within the tailings storage facility if not properly drained. This buildup of water can lead to increased **pore water pressure**, reducing the effective stress in the tailings and potentially leading to **liquefaction** or **dam failure**.
- **Heaving and Expansion**: In some cases, the chemical reactions associated with sulfide oxidation can lead to **volumetric expansion** of the tailings, which may cause **heaving** of the tailings surface or deformation of embankments, further increasing the risk of structural failure.
### 4. **AMD Prevention and Mitigation** Preventing and mitigating AMD is one of the key objectives in managing tailings containing sulfide minerals. Several approaches are used to minimize the exposure of sulfide minerals to oxygen and water, which are essential for AMD generation:
- **Water Covers**: One common strategy for managing tailings that contain sulfides is to store the tailings under a layer of water. This prevents oxygen from coming into contact with the sulfide minerals, thereby slowing or stopping the oxidation process. **Subaqueous disposal** in lakes, rivers, or specially designed tailings ponds can be effective in preventing AMD.
- **Dry Covers and Encapsulation**: In arid environments, a **dry cover** can be applied to tailings to limit the infiltration of water and the availability of oxygen. These covers are often made of clay or synthetic materials that create an impermeable barrier over the tailings. **Encapsulation** techniques, which involve sealing sulfide-rich tailings in layers of low-permeability materials, can further prevent exposure to oxygen and moisture.
- **Blending with Neutralizing Agents**: Tailings containing sulfide minerals may be blended with **alkaline materials**, such as limestone or lime, to neutralize the acid as it forms. These materials act as acid-neutralizing agents, buffering the pH and reducing the mobility of harmful metals. This is often done during tailings deposition or as part of a reclamation strategy.
### 5. **Tailings Facility Design and Management** The presence of sulfide minerals requires **special considerations** in the design and management of tailings storage facilities to ensure environmental and structural stability over time.
- **Seepage Collection and Treatment**: Facilities that store sulfide-rich tailings often include **seepage collection systems** to capture any AMD that may be generated and to prevent it from migrating into surrounding water bodies. These systems typically divert seepage into a treatment plant where the acidic water can be neutralized, and metals can be precipitated out.
- **Drainage Systems**: Proper **drainage** is crucial in managing pore water pressure within the tailings. Effective drainage systems help reduce water accumulation in the tailings, thereby minimizing the potential for AMD generation and increasing the stability of the tailings dam.
- **Ongoing Monitoring and Maintenance**: Tailings storage facilities that contain sulfides require **long-term monitoring** to detect early signs of AMD, geotechnical instability, or environmental contamination. Monitoring systems track pH levels, metal concentrations, water flow, and pore pressure in the tailings. Early detection allows for timely intervention, reducing the risk of environmental impacts or structural failure.
### 6. **Reprocessing of Tailings** In some cases, mine tailings containing sulfide minerals still hold valuable residual metals that were not recovered during the initial processing. **Reprocessing** tailings can offer several benefits:
- **Resource Recovery**: Sulfide-rich tailings may still contain **valuable metals**, such as gold, silver, copper, or zinc, that can be extracted using modern reprocessing techniques. Recovering these metals from tailings not only generates additional revenue but also reduces the volume of waste in the tailings storage facility.
- **AMD Risk Reduction**: Reprocessing can also reduce the volume of sulfide minerals in the tailings, thereby lowering the long-term risk of AMD generation. By removing some of the sulfides, the remaining tailings become less chemically reactive, reducing the potential for acid generation in the future.
### 7. **Closure and Rehabilitation** The long-term management of tailings storage facilities, particularly those containing sulfide minerals, is a key consideration in mine closure and site rehabilitation plans. The goal is to minimize environmental risks and ensure the stability of the tailings over time.
- **Tailings Caps**: Post-closure, tailings facilities are often capped with a layer of **low-permeability material** (e.g., clay, geomembranes, or soil) to limit the infiltration of water and oxygen. This cap helps to reduce the potential for sulfide oxidation and AMD generation while providing a stable surface for vegetation.
- **Water Treatment**: Even after closure, **ongoing water treatment** may be required to address any residual AMD. This can involve treating water that flows through or out of the tailings facility to neutralize acidity and remove dissolved metals.
- **Monitoring for Decades**: Due to the **long-lasting reactivity** of sulfide minerals, post-closure monitoring is often required for decades, or even centuries, to ensure that environmental impacts are controlled. Monitoring programs typically focus on water quality, pH levels, and the structural integrity of the tailings dam or cover system.
### Conclusion
Sulfide minerals in mine tailings play a central role in shaping **tailings management strategies**, particularly due to their potential to generate **acid mine drainage (AMD)** and mobilize **toxic metals**. Proper management of sulfide-rich tailings involves a combination of **preventative measures** (such as water covers, encapsulation, and blending with alkaline materials), **design considerations** (such as effective drainage and seepage collection), and **long-term monitoring** to mitigate environmental risks. Failure to manage sulfide-containing tailings properly can result in significant and long-lasting environmental impacts, including water and soil contamination and geotechnical instability. Therefore, understanding the behavior of sulfide minerals is crucial for sustainable tailings management and mine closure.
The role of Carbonate minerals in Mine tailings Mnagement
Below are the major ways carbonate minerals impact tailings management:

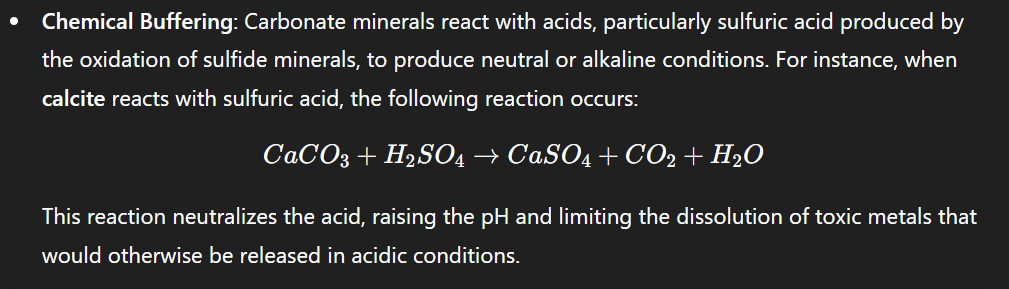

### 1. **Acid Neutralization and AMD Prevention** One of the most critical roles of carbonate minerals in tailings management is their ability to neutralize **acid mine drainage (AMD)** by buffering acidity and preventing the decline of pH.
- **Reduced AMD Risk**: In tailings rich in carbonate minerals, the potential for AMD is significantly reduced as the carbonate minerals act as a natural buffer. They prevent the pH from dropping to levels that would cause sulfide minerals to release harmful metals into the environment. As a result, tailings with a high carbonate content can exhibit lower environmental risk than those dominated by sulfides and silicates.
- **Long-Term Buffering Capacity**: One of the key benefits of carbonate minerals is their **long-lasting neutralization** effect. Because they dissolve slowly under acidic conditions, carbonate minerals can continue to buffer the pH over extended periods, providing long-term protection against AMD. This is especially important in preventing the **delayed onset** of AMD in tailings storage facilities (TSFs).
### 2. **Geotechnical Stability and Consolidation** Carbonate minerals can also influence the geotechnical behavior of mine tailings, impacting factors such as **strength**, **consolidation**, and **settlement**.
- **Increased Permeability**: Carbonate minerals, particularly coarse-grained ones like calcite and dolomite, can improve the **permeability** of tailings. Higher permeability facilitates **drainage** and helps reduce pore water pressure, improving the stability of tailings dams. However, increased permeability can also lead to faster seepage of contaminants, so proper management is still required.
- **Tailings Strength**: Carbonate minerals can contribute to the **mechanical stability** of tailings. In some cases, the dissolution of carbonates can cause a reduction in material strength, but this generally depends on how much carbonate is present and the chemical conditions of the tailings. In alkaline or near-neutral environments, where carbonate dissolution is limited, these minerals can help improve the overall strength and consolidation of the tailings.
- **Consolidation**: Carbonate minerals can contribute to the **settlement** and consolidation of tailings. Over time, as water is expelled from the tailings and the material compacts, the presence of carbonates can influence the rate and extent of consolidation. However, if significant carbonate dissolution occurs due to acidic conditions, it can lead to increased void space and settlement in the tailings, potentially destabilizing the tailings facility.
### 3. **Mitigation of Metal Leaching** In addition to neutralizing acidity, carbonate minerals can also help mitigate the leaching of toxic metals from tailings. When the pH of tailings is neutral or alkaline, metals are generally less soluble, reducing the risk of them being released into the environment.
- **Metal Precipitation**: At higher pH levels, metals such as **iron**, **aluminum**, **zinc**, and **copper** can precipitate out of solution as hydroxides, oxides, or carbonates, reducing their mobility. This precipitation process can occur naturally in tailings with sufficient carbonate content, limiting the environmental impact of metal leaching.
- **Sorption of Metals**: Carbonate minerals can also **sorb** or bind metals to their surfaces, reducing their mobility. The surfaces of carbonate particles can interact with dissolved metals, leading to **adsorption** or **co-precipitation**, effectively trapping metals within the solid tailings matrix.
### 4. **Carbonate Depletion and Long-Term Stability** While carbonate minerals provide significant benefits in terms of neutralizing acid and stabilizing tailings, it is important to consider their **long-term availability** and **depletion** over time.
- **Progressive Depletion**: As carbonate minerals react with acid (from AMD or other sources), they slowly dissolve. Over time, the carbonate content of the tailings can be depleted, reducing the buffering capacity and increasing the risk of **future acidification**. This makes it important to assess how much carbonate is present and how long it will last under the given conditions.
- **Geochemical Monitoring**: Ongoing monitoring of the geochemical conditions in tailings storage facilities is crucial to detect any signs of carbonate depletion or pH decline. Early intervention can prevent the onset of AMD and mitigate the environmental risks associated with metal leaching and acid generation.
### 5. **Role in Tailings Reprocessing** In some cases, carbonate minerals in tailings can be reprocessed to recover valuable metals or to reduce the overall volume of waste material.
- **Recovery of Residual Metals**: Carbonate-rich tailings may still contain residual metals that can be economically recovered through reprocessing. This includes not only base metals but also potentially **rare earth elements** (REEs), which are often associated with carbonates in certain types of deposits.
- **Tailings Volume Reduction**: Reprocessing of tailings can also reduce the overall volume of waste material, which may include the removal of carbonate minerals as part of the process. While reprocessing can generate economic benefits, it is important to assess how the removal of carbonate minerals might affect the long-term stability and buffering capacity of the remaining tailings.
### 6. **Carbon Sequestration Potential** Interestingly, carbonate minerals can also contribute to **carbon sequestration** by locking away carbon in a stable mineral form. This is particularly relevant in the context of **climate change mitigation**, where the capture and long-term storage of carbon dioxide (CO₂) are important goals.
- **Carbonate Precipitation**: In some cases, tailings can be engineered to promote the precipitation of carbonates from CO₂ in the atmosphere or from dissolved CO₂ in water. This process, known as **mineral carbonation**, captures CO₂ and converts it into stable carbonate minerals, effectively sequestering carbon in the tailings.
- **Mine Site Reclamation**: The use of tailings as part of **mine site reclamation** strategies can also incorporate carbonate minerals to promote the formation of stable soils and minimize the long-term environmental impact of the mine.
### 7. **Closure and Rehabilitation** The presence of carbonate minerals is a critical factor in the **closure** and **rehabilitation** of mine tailings facilities, especially those prone to AMD generation.
- **Capping and Covering**: During mine closure, tailings may be capped with layers of carbonate-rich materials to **buffer acidity** and prevent acid generation in the long term. This can be part of a broader rehabilitation strategy to restore the mine site to a natural or usable state.
- **Water Management**: Ensuring that water flowing through or out of the tailings facility remains neutral or alkaline is a key consideration in long-term closure plans. Carbonate minerals can help maintain a stable pH, reducing the need for active water treatment in the post-closure phase.
### Conclusion
Carbonate minerals play a **vital role** in mine tailings management, primarily due to their ability to **neutralize acid**, **buffer pH**, and **limit metal leaching**. Their presence in tailings helps mitigate the environmental impacts of **acid mine drainage (AMD)** and contributes to the **geotechnical stability** of tailings storage facilities. However, the long-term effectiveness of carbonate minerals depends on their availability and the potential for depletion over time. As such, ongoing monitoring, careful tailings design, and strategic planning for **closure and rehabilitation** are essential to ensure the long-term stability and environmental performance of carbonate-rich tailings facilities.
The role of Silicate minerals in Mine tailings management.
Below is an overview of the role that silicate minerals play in tailings dam management:
### 1. **Geotechnical Stability** Silicate minerals, particularly **quartz**, **feldspar**, and **clays**, contribute to the **mechanical stability** of tailings dams. Their physical characteristics, such as grain size and angularity, affect important geotechnical factors like **compaction**, **drainage**, and **shear strength**, which are crucial for the structural integrity of tailings storage facilities (TSFs).
- **Shear Strength and Stability**: Coarse-grained silicate minerals, such as quartz and feldspar, provide **high shear strength** and improve the stability of the tailings structure. The angularity of quartz particles, for example, enhances **frictional resistance**, reducing the risk of slope failure or sliding within the tailings.
- **Compaction and Density**: Silicate minerals influence the ability of tailings to **compact** under load, which is important for the long-term stability of the dam. Compaction increases the **density** of the tailings, reducing the amount of pore water and increasing resistance to deformation under pressure.
- **Clay Minerals and Fine-Grained Tailings**: Silicate minerals like **clays** (e.g., kaolinite, smectite) tend to form fine-grained materials that can reduce **permeability** and enhance the **cohesive strength** of tailings. However, clay minerals also present challenges due to their susceptibility to **shrink-swell behavior** and **liquefaction**, especially in the presence of water. This can impact the stability of tailings dams under certain conditions, such as heavy rainfall or seismic activity.
### 2. **Permeability and Drainage** Silicate minerals influence the **permeability** and **drainage** characteristics of tailings, which are critical for managing water within tailings storage facilities.
- **Coarse Silicates and Drainage**: Coarse silicate minerals like quartz and feldspar promote better **drainage** by providing **larger pore spaces** for water to pass through. Good drainage is essential for maintaining **low pore water pressures**, which helps stabilize the tailings and reduce the risk of dam failure or liquefaction.
- **Low Permeability of Fine-Grained Silicates**: Fine-grained silicate minerals, such as clays and micas, reduce **permeability** and can trap water within the tailings. While this can limit water infiltration into the deeper layers of the dam, it can also increase **pore water pressure** near the surface, leading to reduced stability if not properly managed. A well-designed **drainage system** is necessary to ensure water is effectively removed from the tailings.
- **Water Retention in Clays**: Certain clays, such as **smectite**, have the ability to retain large amounts of water due to their high surface area and cation exchange capacity. This can lead to **swelling** and **plastic behavior**, making these minerals a challenge in tailings dam design, particularly in terms of predicting how the tailings will respond to changes in moisture content over time.
### 3. **Erosion Control** The mechanical properties of silicate minerals also play a role in **erosion control**. The **particle size distribution** and **resistance to weathering** of silicate-rich tailings can influence how susceptible the tailings are to erosion by wind and water.
- **Quartz Durability**: Quartz is highly **resistant to weathering**, and its presence in tailings can reduce the risk of **erosion**. Its hardness makes it less likely to break down over time, maintaining the structural integrity of the tailings surface and minimizing the potential for dust generation or erosion by runoff.
- **Clay Mineral Erosion**: Fine-grained silicates like clays are more susceptible to **erosion**, especially if the tailings surface is exposed to wind or heavy rain. Tailings containing high levels of clay minerals require additional **erosion control measures**, such as vegetation or surface covers, to prevent loss of material and potential contamination of surrounding environments.
### 4. **Reactivity and Weathering** Silicate minerals are generally more **chemically stable** compared to sulfide and carbonate minerals, meaning they are less likely to undergo significant weathering reactions that could lead to the generation of **acid mine drainage (AMD)** or the release of harmful metals.
- **Slow Weathering**: Silicate minerals like quartz and feldspar are relatively **inert** under most environmental conditions. This makes them a stable component in the long-term management of tailings storage facilities, as they are less likely to contribute to **acidic drainage** or leach toxic metals. The slow weathering of these minerals can help reduce the risk of **acid generation** from the oxidation of sulfides in mixed tailings.
- **Secondary Mineral Formation**: Under certain conditions, the weathering of silicate minerals can lead to the formation of **secondary minerals**, such as clays, which may influence the physical properties of the tailings over time. This can affect **permeability**, **drainage**, and **stability** if not accounted for in the design of the tailings facility.
### 5. **Role in Metal Leaching** While silicate minerals themselves do not generally contribute to the generation of acid or metal leaching, their presence can impact the **mobility of metals** in tailings.
- **Adsorption of Metals**: Some silicate minerals, particularly **clay minerals** like kaolinite and smectite, have the ability to **adsorb** metal ions onto their surfaces. This can limit the mobility of metals like lead, zinc, and copper, effectively **trapping** them within the tailings matrix and reducing their potential to contaminate surrounding water bodies.
- **pH Buffering and Metal Mobility**: Although silicate minerals do not directly buffer pH like carbonates, they can contribute to maintaining a more neutral or slightly acidic environment, which can help reduce the **solubility of metals** and prevent their release into the environment.
### 6. **Closure and Rehabilitation** In tailings dam closure and rehabilitation, silicate minerals play a role in **landform stability** and **vegetation support**.
- **Structural Integrity**: The durability of silicate minerals, particularly coarse ones like quartz and feldspar, ensures that the tailings remain structurally stable over the long term, even after the dam is closed. This contributes to the long-term success of tailings dam rehabilitation efforts, minimizing the risk of post-closure failures.
- **Soil Formation**: Over time, the weathering of silicate minerals can contribute to **soil formation** on the surface of the tailings. The breakdown of feldspars and micas, for example, can produce clay minerals that enhance the water-holding capacity and nutrient content of the soil, supporting the establishment of vegetation. This is an important part of **mine site rehabilitation**, as vegetation can help prevent erosion and stabilize the tailings surface.
### 7. **Tailings Dam Design and Management** Silicate minerals, due to their variety of physical and chemical properties, are important considerations in the overall design and management of tailings storage facilities.
- **Tailings Consolidation**: Silicate minerals contribute to the **consolidation** of tailings, which is crucial for reducing the volume of the material and improving stability. Proper consolidation leads to the expulsion of excess water, reducing pore pressure and increasing the overall strength of the tailings.
- **Layering and Compaction**: Tailings dams often use **layered deposition** techniques, and the presence of coarse-grained silicate minerals can aid in effective compaction of each layer. This helps ensure the dam remains stable as additional layers of tailings are deposited over time.
- **Water Management**: The presence of fine-grained silicate minerals, especially clays, must be carefully managed to ensure that water is properly drained from the tailings. Failure to manage water in silicate-rich tailings can lead to **excess pore pressure**, **seepage**, or even **liquefaction** under extreme conditions, such as during an earthquake or heavy rainfall.
### Conclusion
Silicate minerals play a multifaceted role in **tailings dam management**, impacting both the **geotechnical stability** of tailings storage facilities and the **environmental performance** of the tailings. Coarse-grained silicates, such as quartz and feldspar, provide structural stability and improve drainage, while fine-grained silicates, like clays, influence permeability and water retention. While silicate minerals are relatively inert compared to sulfides and carbonates, they still require careful management, particularly in terms of **water control**, **erosion prevention**, and **consolidation**. Understanding the behavior of silicate minerals in tailings is crucial for ensuring the long-term safety and environmental sustainability of mine tailings dams.
The influence of Mineralogy on Tailings Dam stability
Below is an analysis of how tailings mineralogy influences dam stability:
### 1. **Physical Properties and Shear Strength** The physical properties of minerals—such as grain size, shape, and composition—affect the **shear strength** of tailings, which is a critical factor in the overall stability of a tailings dam.
- **Coarse-Grained Minerals** (e.g., **quartz**, **feldspar**): Tailings that contain a high proportion of coarse, angular minerals such as quartz tend to have higher **frictional resistance**, which contributes to **greater shear strength**. These minerals help create more stable particle-to-particle contact, reducing the risk of **slope failures** or **sliding** within the dam.
- **Fine-Grained Minerals** (e.g., **clays**, **micas**): Fine-grained minerals, such as clays and micas, can lead to reduced shear strength, especially when water is present. Clays, in particular, can exhibit **plastic behavior** and may **lose strength** under saturated conditions. This can increase the risk of **liquefaction** or **failure** during seismic events or heavy rainfall.
- **Clay Mineralogy**: Different clay minerals exhibit different behaviors. For instance, **kaolinite** is relatively stable and has low swelling potential, whereas **smectite** and **montmorillonite** have high swelling and shrinkage capabilities, which can lead to instability, particularly in the presence of water. These minerals can undergo volume changes (expansion and contraction) that destabilize the tailings structure, making it prone to cracking or deformation.
### 2. **Consolidation and Compaction** The mineralogy of the tailings influences the **consolidation** and **compaction** characteristics of the material, which are important for reducing excess water and increasing dam strength. - **Coarse Silicate Minerals**: Minerals like quartz and feldspar tend to be more **easily compacted**, promoting effective consolidation of the tailings. This leads to reduced **pore water pressure** and increased **density**, which improves the overall stability of the tailings dam.
- **Clay Minerals**: Tailings with high clay content may exhibit **low permeability** and slow consolidation. While low permeability can reduce the flow of water through the tailings, it also slows down the drainage process, increasing the potential for **excess pore water pressure** and **liquefaction** under certain conditions. Proper consolidation is essential to avoid these risks, particularly in tailings with significant fine-grained content.
- **Post-Deposition Consolidation**: Minerals like **gypsum** (sometimes formed in acid mine drainage scenarios) can precipitate in tailings, leading to **post-deposition consolidation**. This secondary consolidation process can contribute to long-term stabilization but must be monitored to ensure that tailings do not become unstable as they settle further over time.
### 3. **Permeability and Drainage** Minerals affect the **permeability** of tailings, which in turn influences water flow, drainage, and the risk of **pore water pressure buildup**. Good water management is crucial for maintaining tailings dam stability.
- **Coarse-Grained Minerals**: Coarse minerals, like quartz and feldspar, contribute to higher **permeability**, allowing water to drain effectively from the tailings. Efficient drainage helps lower pore water pressures, which is essential for maintaining the stability of the tailings structure. High permeability tailings are less likely to experience excess pore pressure that could lead to **liquefaction** or dam failure.
- **Clay and Fine-Grained Minerals**: Fine-grained minerals, particularly clays, **reduce permeability** and can trap water within the tailings. This increases the potential for **pore pressure buildup**, especially during wet conditions or when the tailings dam is under stress. High pore water pressure can reduce the effective stress acting on the tailings, leading to a higher risk of **dam instability**.
- **Layering and Stratification**: Tailings dams often have **layered deposits** of materials with varying permeability. Layers rich in fine-grained or clay minerals can create impermeable barriers within the dam, potentially leading to **seepage issues** or uneven drainage. This can contribute to instability, particularly in areas where water is unable to drain and becomes trapped in the lower layers of the tailings.
### 4. **Water Retention and Liquefaction** Water retention properties of the minerals in tailings impact **liquefaction potential** and overall stability, especially during seismic events or under heavy rainfall.
- **Fine-Grained Minerals and Water Retention**: Fine-grained silicates and clay minerals, such as **montmorillonite** and **illite**, can retain significant amounts of water. This increases the likelihood of **liquefaction**, where saturated, loose, fine-grained tailings lose strength and behave like a fluid under dynamic loads such as an earthquake or heavy rainfall.
- **Coarse-Grained Minerals**: Tailings with a high proportion of coarse-grained minerals, such as quartz, are less susceptible to liquefaction due to their **better drainage characteristics** and **higher shear strength**. These tailings are less likely to experience rapid changes in water content, which is a key factor in resisting liquefaction.
### 5. **Erosion and Surface Stability** The erosion resistance of tailings is also influenced by mineralogy, which affects how the surface of the tailings dam responds to wind, rain, and water flow.
- **Durability of Silicates**: Minerals like quartz are highly resistant to **weathering** and **erosion**, contributing to a more stable surface layer for tailings. The presence of durable silicate minerals helps to **prevent dust generation** and erosion, particularly in arid environments where wind erosion may be a concern.
- **Erosion Susceptibility of Fine-Grained Materials**: Fine-grained tailings, particularly those rich in clay minerals, are more prone to **surface erosion** by rain or wind. This can lead to the **loss of material** from the dam, potentially undermining its structure over time. Vegetation or surface covers may be needed to stabilize the surface of the tailings and prevent erosion.
### 6. **Chemical Reactivity and Weathering** The chemical stability of minerals within the tailings also plays a role in **long-term stability**. Minerals that undergo significant chemical reactions can alter the physical properties of the tailings, potentially leading to changes in strength and consolidation behavior.
- **Sulfide Minerals**: In tailings rich in **sulfide minerals** (e.g., pyrite), the oxidation of these minerals can generate **acid mine drainage (AMD)**, leading to the formation of secondary minerals like **gypsum** and **iron oxides**. This chemical alteration can weaken the tailings structure over time, especially if AMD is not properly managed.
- **Silicate Minerals**: Silicate minerals, such as quartz and feldspar, are generally more **chemically inert** and resistant to weathering. Their presence provides long-term structural stability, as they are less likely to undergo significant changes in their physical properties. However, the weathering of certain silicates, such as **feldspars**, can lead to the formation of clays, which may alter the tailings' behavior over time.
### 7. **Mitigation of Acid Mine Drainage (AMD)** Minerals like **carbonates** and **silicates** can influence the chemical environment of the tailings, affecting the likelihood of **acid mine drainage (AMD)** and its impact on stability.
- **Neutralization by Carbonates**: If the tailings contain carbonate minerals (e.g., **calcite**), they can help neutralize acid generated by the oxidation of sulfide minerals. This reduces the potential for AMD, which can otherwise degrade the tailings structure and surrounding environment, leading to both **geotechnical** and **environmental** instability.
- **Silicate Neutralization**: Certain silicate minerals (e.g., **olivine**, **serpentine**) can also react with acidic water to provide a degree of neutralization, though their buffering capacity is generally less than that of carbonates. Nonetheless, they contribute to reducing the overall acidity of the tailings, thereby limiting the secondary chemical reactions that could destabilize the dam.
### Conclusion
The **mineralogy of tailings** is a critical factor in the design and management of tailings dams, as it influences the **mechanical stability**, **water management**, **erosion resistance**, and **chemical reactivity** of the material. Coarse-grained silicate minerals like quartz provide **good drainage** and **structural stability**, while fine-grained minerals like clays can introduce challenges related to **permeability**, **water retention**, and **liquefaction potential**. Proper understanding and management of the mineral composition in tailings are essential for ensuring the **long-term stability** and **safety** of tailings storage facilities.
Tailings Toxicidity
Here’s a breakdown of the key factors contributing to tailings toxicity:
### 1. **Heavy Metals and Metalloids** Many tailings contain **elevated concentrations of heavy metals** and **metalloids** that are harmful to living organisms. Common toxic elements found in tailings include:
- **Lead (Pb)**: Can cause neurological damage, kidney dysfunction, and reproductive issues in humans and animals.
- **Arsenic (As)**: Often found in gold and copper tailings, arsenic is highly toxic and carcinogenic, leading to skin lesions, cancer, and respiratory problems.
- **Cadmium (Cd)**: Found in zinc and lead ore tailings, cadmium can accumulate in the kidneys and cause renal failure, as well as damage to bones and lungs.
- **Mercury (Hg)**: Widely used in small-scale gold mining, mercury is extremely toxic and can cause severe damage to the nervous system, particularly through bioaccumulation in aquatic ecosystems.
- **Copper (Cu)**: In excessive amounts, copper can be toxic to aquatic life and plants, disrupting enzymatic processes.
- **Zinc (Zn)**: Although essential in small quantities, elevated levels of zinc can cause toxicity to plants and aquatic organisms. The mobility and bioavailability of these heavy metals in the environment are affected by factors such as **pH**, **oxidation-reduction conditions**, and **tailings mineralogy**.
### 2. **Sulfide Minerals and Acid Mine Drainage (AMD)** One of the most critical contributors to tailings toxicity is the presence of **sulfide minerals** (e.g., pyrite, chalcopyrite). When sulfide minerals are exposed to air and water, they oxidize, producing **sulfuric acid**. This process, known as **Acid Mine Drainage (AMD)** or **acid rock drainage (ARD)**, can severely acidify nearby water bodies and soils, mobilizing heavy metals and increasing their bioavailability.
Key effects of AMD include:
- **Lowered pH**: Acidic conditions increase the **solubility of heavy metals**, allowing them to leach into surrounding ecosystems, where they can poison plants, animals, and microorganisms.
- **Contamination of Water Sources**: AMD can severely degrade surface and groundwater quality, leading to contamination of drinking water, destruction of aquatic habitats, and harm to agricultural land.
- **Metals Mobilization**: Metals such as arsenic, lead, cadmium, and copper become more mobile and bioavailable under acidic conditions, increasing their toxicity to plants and animals.
### 3. **Chemical Reagents** Tailings often contain residual **chemical reagents** used during mineral processing, which can be toxic. These chemicals vary depending on the mining process but can include:
- **Cyanide (CN⁻)**: Used in the gold extraction process, cyanide is highly toxic to both humans and aquatic organisms. Even in small amounts, cyanide can cause environmental damage if not properly managed.
- **Flotation Agents (e.g., xanthates)**: Commonly used in sulfide ore processing, flotation agents can be toxic to aquatic life, affecting enzyme functions and disrupting ecosystems.
- **Acids and Alkalis**: Certain extraction processes involve strong acids (e.g., sulfuric acid in copper mining) or alkalis (e.g., lime in some gold recovery processes), which can lead to severe pH imbalances in surrounding water bodies if tailings are not adequately neutralized.
### 4. **Leaching of Toxic Elements** Tailings can leach **toxic elements** into the environment through **water infiltration** and **surface runoff**. This process can occur over long periods, and it is particularly problematic when tailings contain highly reactive minerals or when they are stored in **unlined facilities** that allow for **groundwater contamination**.
- **Oxidation of Sulfides**: As sulfides oxidize, they release heavy metals into surrounding water. This leaching process can continue for decades, resulting in chronic contamination.
- **Surface Runoff**: Rainwater can cause tailings to **erode** and leach toxic substances into nearby streams, rivers, and lakes, which can result in widespread environmental contamination.
- **Groundwater Contamination**: In unlined or poorly managed tailings storage facilities, toxic elements from the tailings can seep into the **groundwater**, contaminating drinking water sources and agricultural water supplies.
### 5. **Tailings Dust** When tailings dry out, they can produce **dust** that contains toxic metals and other harmful particles. **Wind erosion** of tailings impoundments can spread this dust over large areas, leading to **airborne contamination**.
- **Deposition on Cropland**: Tailings dust that settles on agricultural fields can contaminate soil and water, making crops unsafe for consumption and leading to reduced agricultural productivity.
### 6. **Radiation in Tailings** In certain types of mining (e.g., **uranium mining**), tailings may contain **radioactive elements**, such as uranium, thorium, or radon.
These elements can pose **long-term radiation risks** if tailings are not properly managed.
- **Radioactive Decay**: The decay of radioactive elements in tailings can release harmful **radon gas**, which poses an inhalation risk. Prolonged exposure to radon can lead to **lung cancer**.
- **Leaching of Radionuclides**: Radioactive elements can also leach into surrounding water sources, contaminating ecosystems and posing risks to human health.
### 7. **Biological Impacts** The toxic substances in tailings can have severe impacts on local ecosystems, affecting both **flora and fauna**.
- **Aquatic Life**: Toxic metals leached into water bodies can devastate aquatic ecosystems. Fish and other aquatic organisms may suffer from **metal poisoning**, leading to population declines and loss of biodiversity.
- **Terrestrial Ecosystems**: Plants growing in soils contaminated by tailings can absorb toxic elements, leading to reduced growth, poor crop yields, and potential bioaccumulation in the food chain, affecting herbivores and, subsequently, predators.
- **Microbial Communities**: The toxicity of tailings can also affect soil **microbial communities**, which play a crucial role in nutrient cycling and soil fertility. Disruption of these communities can have long-term effects on ecosystem health and recovery.
### 8. **Tailings Management to Mitigate Toxicity** To mitigate the toxicity of tailings, proper **tailings management** strategies are essential. Key practices include:
- **Tailings Containment**: Tailings are stored in engineered facilities (e.g., dams, impoundments) designed to **contain toxic materials** and prevent them from contaminating surrounding areas.
- **Water Management**: Ensuring that tailings impoundments are properly drained and monitored to **prevent water infiltration** and the spread of toxic substances through leaching or runoff.
- **Neutralization of Acidic Tailings**: Adding **lime** or other neutralizing agents to tailings to prevent or reduce the formation of AMD.
- **Capping and Vegetation**: Tailings can be capped with inert materials or **vegetated** to prevent dust generation and reduce water infiltration, thereby minimizing the risk of erosion and chemical leaching.
- **Recycling and Reprocessing**: In some cases, tailings can be **reprocessed** to extract additional valuable minerals or reduce the concentration of harmful substances, reducing the volume of toxic materials that need to be managed.
- **Monitoring and Remediation**: Ongoing **monitoring of groundwater**, surface water, and tailings impoundments is crucial for early detection of contamination. If contamination occurs, **remediation efforts** can include water treatment, soil stabilization, or removal of contaminated materials.
### Conclusion
The toxicity of mine tailings is a complex issue, driven by the **composition of the tailings**, **processing chemicals**, and **environmental interactions**. Toxic substances like heavy metals, sulfides, chemical reagents, and radioactive elements pose significant risks to ecosystems, water resources, and human health. Effective tailings management strategies, including containment, water management, neutralization, and continuous monitoring, are essential to minimize the toxic effects of mine tailings and prevent long-term environmental damage.
Where are tailings stored?
### 1. **Tailings Dams and Impoundments**
**Tailings dams** are engineered structures designed to store slurry tailings (a mixture of water and finely ground rock) in a controlled and stable manner. These dams are built using a variety of construction methods and are the most common type of tailings storage facility (TSF).
- **Upstream Construction**: In this method, the dam is gradually raised using the tailings themselves as the material for building the dam walls. This approach is cost-effective but has higher risks of failure, especially in areas prone to earthquakes or heavy rainfall. Many historical tailings dam failures have involved upstream construction.
- **Downstream Construction**: In downstream construction, the dam walls are built with waste rock or other stable materials, and the walls are expanded outwards as the dam is raised. This method provides greater stability and is typically safer but more expensive than upstream construction.
- **Centerline Construction**: This is a combination of upstream and downstream methods, where the dam wall is raised vertically along the original centerline of the structure. It offers moderate stability and is often used in large mining operations.
**Impoundments** refer to the reservoir created by the dam where tailings are deposited. Tailings are stored as a slurry, and the impoundment allows water to be separated and either recycled or evaporated. These facilities require constant monitoring to prevent failures, which can lead to devastating environmental disasters.
**Example**:
The **Brumadinho dam disaster** in Brazil (2019) was a catastrophic failure of an upstream tailings dam that resulted in the release of millions of tons of tailings, causing significant loss of life and environmental damage.
### 2. **Dry Stacking**
**Dry stacking** is the process of dewatering tailings to create a semi-solid or solid material that can be stored in dry piles. This method is becoming more popular due to its reduced risk of dam failure and lower environmental impact.
- **Dewatering**: Tailings are passed through
**filters** to remove most of the water, leaving behind a relatively dry material that can be stacked in a storage area. The water that is removed can often be reused in the mine’s processing operations.
- **Reduced Risk**: Dry stacking eliminates the need for large tailings dams and reduces the risk of catastrophic failures due to dam collapse or liquefaction. It is particularly suitable for areas with limited water resources or those prone to seismic activity.
- **Smaller Footprint**: Since the tailings are dewatered, the storage footprint is much smaller than conventional tailings dams, and there is less need for continuous water management.
**Example**: Mines in arid regions, such as those in parts of **Chile** and **Australia**, often use dry stacking due to water scarcity and the need for better tailings management.
### 3. **In-Pit Storage** In some mining operations, **abandoned open pits** are used as tailings storage facilities. This method involves backfilling the pit with tailings once the mineral extraction process is complete.
- **Natural Containment**: The pit itself acts as a natural container for the tailings, reducing the need for external dam structures.
- **Reduced Environmental Footprint**: Since the tailings are stored in an area that has already been disturbed by mining, the overall environmental footprint is minimized.
- **Challenges**: Depending on the pit's geology and hydrology, managing water and preventing groundwater contamination can be a challenge.
### 4. **Underground Storage (Backfill)** In underground mining operations, tailings can be mixed with water and cement to create a slurry, which is then pumped back into the underground mine as **backfill**. This method serves both as a way to manage tailings and to stabilize the mine's voids.
- **Stabilization**: By using tailings to fill voids in underground mines, this method helps prevent **subsidence** (collapse of the ground surface above the mine) and reduces the need for surface storage.
- **Environmental Benefits**: Underground storage reduces the surface footprint and mitigates the risk of tailings dam failures.
### 5. **Submarine or Underwater Storage** In some cases, tailings are stored underwater in **natural lakes**, **reservoirs**, or **the ocean**. This method is controversial due to the potential for marine pollution, but it is sometimes used when other options are not viable, especially in remote areas or small island nations.
- **Preventing Oxidation**: Storing tailings underwater prevents the oxidation of **sulfide minerals**, thereby reducing the risk of **acid mine drainage (AMD)**.
- **Environmental Concerns**: While underwater storage can reduce the risk of acid formation, it can cause harm to aquatic ecosystems due to the spread of toxic substances in the water.
**Example**:
Submarine tailings disposal has been used in places like **Papua New Guinea**, where the deep-sea environment is thought to dilute and disperse the tailings. However, this practice is often heavily criticized by environmental groups.
### 6. **Riverine Disposal (Rare and Highly Controversial)** In very rare cases, some mines discharge tailings directly into nearby rivers. This practice is highly controversial due to the significant environmental impact, including destruction of aquatic ecosystems, sediment buildup, and contamination of water sources.
- **Highly Regulated**: Riverine disposal is largely banned or heavily regulated in most parts of the world due to the devastating effects on rivers and downstream communities.
### 7. **Heap Leach Residue Storage** In mining operations that use **heap leaching** (such as gold and copper mines), the residue from the leach heaps (spent ore) may also be stored as tailings. These residues are often stored in **dedicated heap leach pads**, which are lined to prevent contamination of the surrounding soil and groundwater.
### Key Considerations for Tailings Storage
- **Environmental Impact**: The choice of storage method must minimize the impact on ecosystems and communities. This includes preventing contamination of soil, water, and air.
- **Stability**: The stability of tailings storage facilities, particularly dams, is a crucial consideration to avoid catastrophic failures. Tailings dam failures can result in the release of toxic material into the environment, with devastating consequences.
- **Water Management**: Proper drainage and water management systems must be in place to ensure that excess water is safely managed and recycled where possible.
- **Monitoring**: Tailings storage facilities require **continuous monitoring** to detect signs of instability, seepage, or other potential risks.
### Conclusion
Tailings storage is a critical aspect of mine management, requiring careful planning and ongoing monitoring to ensure the safety of the surrounding environment and communities. The most common storage methods include **tailings dams**, **dry stacking**, **in-pit storage**, and **underground backfill**, with the choice of method depending on factors such as the **mineralogy of the tailings**, **geographical conditions**, and **regulatory frameworks**.
Disposal of Tailings
### 1. **Tailings Dams and Impoundments**
Tailings dams are one of the most common methods for tailings disposal. Tailings are mixed with water to form a slurry and pumped into an impoundment or dam, where the solids settle, and the water is decanted for reuse or treatment.
- **Process**: Tailings are deposited into a containment area (impoundment) behind an engineered tailings dam. The water used in the processing of ore is allowed to settle and is then either recycled back into the processing plant or treated before being discharged into the environment.
- **Advantages**: Large volumes of tailings can be stored in a controlled manner, and the water can be reused, reducing overall water consumption.
- **Disadvantages**: Tailings dams pose significant environmental and safety risks, especially if poorly constructed or maintained. Tailings dam failures can result in catastrophic environmental disasters, including the release of toxic substances into surrounding areas.
**Example**:
The **Brumadinho disaster** in Brazil (2019), where the failure of a tailings dam led to widespread environmental damage and loss of life, highlighted the risks of tailings dam failures.
### 2. **Dry Stacking**
Dry stacking involves dewatering the tailings so that they can be placed as dry, solid material rather than a slurry. This method reduces the risk of catastrophic dam failures and the environmental risks associated with water management.
- **Process**: Tailings are dewatered using filtration or other technologies to remove the excess water. The remaining dry material is stacked and compacted in a designated storage area.
- **Advantages**: Dry tailings are more stable, reducing the risk of liquefaction or dam collapse. This method also reduces the environmental footprint of the disposal site and minimizes the risk of water contamination.
- **Disadvantages**: Dewatering can be expensive, and large storage areas are required to accommodate the dry tailings. Additionally, dry stacking may not be feasible for mines with large volumes of tailings.
**Example**:
Dry stacking is increasingly used in regions with limited water resources or where seismic activity makes tailings dams risky, such as in **Chile** and **Australia**.
### 3. **In-Pit Disposal**
In-pit disposal involves placing tailings in a mined-out open pit or quarry once mineral extraction has been completed. This method takes advantage of existing mine voids and reduces the need for external tailings storage facilities.
- **Process**: After an open pit mine has been exhausted, it is backfilled with tailings. The pit itself acts as a natural containment structure.
- **Advantages**: In-pit disposal reduces the environmental footprint of tailings storage by utilizing already-disturbed land. It also helps prevent issues related to tailings dam stability and water management.
- **Disadvantages**: The capacity of the pit may limit the volume of tailings that can be stored, and managing groundwater infiltration can be challenging. Additionally, the pit must be carefully sealed to prevent contamination of groundwater.
**Example**:
**Copper** and **iron ore** mines often use in-pit disposal as part of their closure and rehabilitation plans.
### 4. **Backfilling (Underground Disposal)**
Backfilling involves returning tailings underground, typically mixed with a binder like cement, to fill voids left by mining activities. This method stabilizes underground workings while reducing the surface footprint of tailings disposal.
- **Process**: Tailings are mixed with water and binders (such as cement) to create a slurry, which is then pumped back into the underground mine voids (e.g., stopes or tunnels).
- **Advantages**: Backfilling can reduce the amount of tailings stored on the surface, lower the risk of surface environmental impacts, and provide structural support to prevent ground subsidence. It is especially useful for mines in environmentally sensitive areas.
- **Disadvantages**: It is often more costly than surface storage methods and is only viable in underground mining operations. The amount of tailings that can be stored underground is limited by the available space in the mine voids.
**Example**:
**Gold** and **zinc** mines that require stabilization of underground workings frequently use backfilling as a tailings disposal method.
### 5. **Submarine Tailings Disposal (STD)**
Submarine tailings disposal involves depositing tailings directly into the sea, usually in deep waters, where it is assumed that the material will not affect marine life. This method is highly controversial due to environmental concerns.
- **Process**: Tailings are piped into the sea, where they are released into deep water at a depth where they are thought to remain isolated from marine ecosystems.
- **Advantages**: STD eliminates the need for surface storage facilities and reduces the risk of tailings dam failures or surface water contamination.
- **Disadvantages**: There are significant risks to marine environments, including the spread of heavy metals and other contaminants into marine ecosystems. This method is banned in most developed countries but is still used in some remote or island nations.
**Example**:
**Papua New Guinea** uses submarine tailings disposal at the **Lihir Gold Mine**, but the practice has been criticized by environmental groups.
### 6. **Riverine Tailings Disposal** Riverine tailings disposal involves discharging tailings directly into a river system. This method has been largely phased out due to its severe environmental impacts but is still used in a few locations.
- **Process**: Tailings are dumped into nearby rivers, where they are transported downstream.
- **Advantages**: Riverine disposal is cheap and does not require the construction of tailings dams or other storage facilities.
- **Disadvantages**: This method causes severe degradation of river ecosystems, including increased sedimentation, contamination of water with heavy metals, and harm to aquatic life. It also poses significant risks to communities downstream who rely on the river for drinking water, agriculture, and fishing.
**Example**:
**Indonesia** and some areas of **Papua New Guinea** still use riverine disposal in remote regions, but this practice is highly criticized.
### 7. **Phytoremediation (Biological Disposal)**
Phytoremediation involves using plants to stabilize and remediate tailings. Certain plant species can help to prevent erosion and reduce the spread of contaminants from tailings storage areas by absorbing heavy metals or stabilizing soils.
- **Process**: Vegetation is planted over tailings to stabilize the surface and reduce the spread of dust, erosion, and contamination.
- **Advantages**: Phytoremediation can be a sustainable, cost-effective way to manage tailings long-term, especially for smaller operations. It also provides an additional layer of protection against erosion and helps rehabilitate the landscape.
- **Disadvantages**: It can take a long time to see results, and the effectiveness depends on the type of tailings, climate, and plant species used. In some cases, the plants may need to be harvested and treated as hazardous waste if they accumulate high levels of heavy metals.
**Example**: Phytoremediation has been used in some former mining areas in **Canada** and **Australia** as part of mine closure plans.
### 8. **Tailings Reprocessing**
Reprocessing involves extracting additional valuable minerals from old tailings. Advances in technology can allow companies to recover metals that were not economically viable to extract during the original processing.
- **Process**: Tailings are re-mined and processed using newer, more efficient techniques to extract additional metals or minerals.
- **Advantages**: This method reduces the volume of tailings that need to be stored and can provide additional economic benefits by recovering valuable resources. It also reduces environmental risks associated with older, unstable tailings storage facilities.
- **Disadvantages**: Not all tailings are suitable for reprocessing, and the costs involved in re-mining and processing can be high.
**Example**:
Some gold and copper mines have reprocessed tailings to recover additional metals using new extraction techniques, such as **bioleaching**.
### Conclusion
The disposal of mine tailings is a complex and crucial aspect of mining operations, requiring careful planning and management to minimize environmental impacts and ensure safety. The most common methods include tailings dams and impoundments, dry stacking, in-pit disposal, and backfilling, but alternative methods like submarine disposal and reprocessing also play a role in specific contexts. The choice of disposal method depends on factors such as the type of tailings, geography, regulatory requirements, environmental risks, and the economics of the mining operation. Each disposal method has its advantages and disadvantages, and the goal is always to find the most sustainable and safe option for long-term tailings management.
Tailings disposal and Mnangement- Impact on water table
Below are the key ways tailings can affect the water table:
### 1. **Groundwater Contamination** Tailings often contain a variety of chemicals and heavy metals, such as arsenic, lead, mercury, and cyanide, which can leach into groundwater if not properly contained. When tailings storage facilities (TSFs), such as dams or impoundments, are improperly designed or experience failure, contaminants can seep into the soil and reach the water table, leading to groundwater contamination.
- **Leaching of Contaminants**: Tailings, especially those containing sulfide minerals, can lead to the formation of **acid mine drainage (AMD)** when exposed to air and water. This acidic water dissolves metals and other harmful substances from the tailings, which can percolate through the ground and enter the water table.
- **Impacts on Drinking Water**: If the water table is contaminated, it can affect nearby wells, springs, and other sources of drinking water for communities, agriculture, and livestock. This is especially concerning in regions where groundwater is a primary source of fresh water.
- **Example**: The **Mount Polley** mine disaster in Canada (2014) involved the failure of a tailings dam, releasing large amounts of tailings into nearby waterways. The seepage of contaminants into groundwater posed long-term risks to the local water table.
### 2. **Changes to Water Table Levels**
The construction of large tailings impoundments can alter the natural flow of groundwater and surface water, which can, in turn, change the level of the water table in the surrounding area.
- **Water Table Lowering (Drawdown)**: In some cases, the construction of a tailings storage facility or dewatering activities associated with mining operations can result in the lowering of the water table. This can affect water availability for local ecosystems, agricultural activities, and human consumption.
- **Water Table Rising (Mounding)**: Conversely, if tailings are not properly dewatered before disposal, or if excessive seepage occurs from the tailings storage facility, water may accumulate in the subsurface, raising the water table. This can lead to waterlogging of soils, negatively impacting plant life and agriculture. In extreme cases, it can also lead to flooding or changes in the stability of nearby structures.
### 3. **Permeability of Tailings and Seepage**
The permeability of tailings material plays a major role in how it interacts with the water table. Fine-grained tailings (e.g., those containing clays or silts) tend to have low permeability, meaning that water moves through them very slowly. However, over time, cracks or channels can develop within the tailings, allowing water to seep through and potentially reach the water table.
- **Clay and Silt Tailings**: These types of tailings typically have lower permeability, but they can still allow water to slowly infiltrate through the tailings storage facility, especially if the facility’s liner is damaged or if cracks form due to consolidation or desiccation (drying out of the surface layers).
- **Coarse Tailings**: Tailings with coarser particles, such as sands and gravels, have higher permeability, which can lead to more rapid infiltration of water. In these cases, contaminants can more quickly reach the water table if adequate measures are not taken to isolate the tailings from groundwater.
### 4. **Acid Mine Drainage (AMD) and Groundwater** Acid mine drainage is a particular concern in tailings that contain high concentrations of sulfide minerals (such as pyrite). When these minerals are exposed to oxygen and water, they oxidize and produce sulfuric acid, which then dissolves heavy metals in the tailings, creating a toxic mixture that can seep into groundwater.
- **Long-Term Risk**: Once acid mine drainage starts, it can continue for decades or even centuries, causing long-term contamination of the water table. Even after a mine is closed, AMD can continue to affect groundwater if the tailings are not properly treated or sealed off.
- **Prevention**: Proper design of tailings storage facilities, including the use of impermeable liners and effective water management systems, is crucial to preventing AMD from impacting the water table. **Example**: The **Berkeley Pit** in Montana, USA, is an open-pit copper mine that has become a highly acidic lake due to AMD. The water table in surrounding areas has been significantly affected, with contamination spreading to nearby groundwater sources.
### 5. **Tailings Dams Seepage**
Tailings dams, especially if poorly constructed or maintained, can allow seepage of contaminated water through the dam walls and into the surrounding soil, reaching the water table. Even with proper monitoring, seepage is a common issue that must be managed.
- **Liner Failure**: If the liner at the bottom of a tailings dam fails, or if the dam itself cracks or erodes over time, seepage of water from the tailings can directly enter the groundwater system. This is particularly concerning in areas where the water table is shallow and close to the surface.
- **Monitoring and Pumping**: To manage seepage, many tailings storage facilities use a system of monitoring wells and pumping systems that capture and treat seepage before it can reach the water table. However, these systems require continuous monitoring and maintenance.
### 6. **Impact of Dry Stacking on Water Table**
Dry stacking, where tailings are dewatered and stored in solid form, significantly reduces the risk of groundwater contamination compared to traditional slurry-based tailings dams. Since dry tailings contain very little water, the potential for seepage into the water table is much lower.
- **Water Management**: With dry stacking, any water that is removed from the tailings during dewatering can be treated and reused in the mining process, further reducing the likelihood of groundwater contamination. However, it is still important to monitor for any potential leachate from the dry stack.
### 7. **Cumulative Impacts**
The cumulative impact of mining activities, including tailings disposal, on the water table can be significant, particularly in regions with multiple mining operations or where tailings storage facilities are located near sensitive water sources.
- **Regional Water Table Impacts**: Large mining operations, especially in water-scarce areas, can affect the overall hydrology of a region. Over-extraction of water for mining processes, coupled with potential groundwater contamination, can alter the balance of the water table over a wide area.
- **Aquifer Depletion**: If large volumes of groundwater are pumped for processing tailings or for mine dewatering, aquifers in the region can be depleted, resulting in a lower water table and reduced water availability for ecosystems and communities.
### Mitigation Measures
To reduce the impact of tailings disposal on the water table, several mitigation measures can be implemented:
- **Lining of Tailings Dams**: Installing impermeable liners at the base of tailings dams can prevent seepage and protect the water table from contamination.
- **Water Treatment**: Regular treatment of water discharged from tailings storage facilities to remove contaminants before they reach the water table.
- **Dewatering**: Using dry stacking methods or advanced dewatering techniques to minimize the amount of water in tailings.
- **Monitoring Systems**: Installing groundwater monitoring wells around tailings storage facilities to detect any changes in the water table or signs of contamination early.
- **Capping and Sealing**: For closed mines, capping tailings with an impermeable barrier and sealing off potential pathways for water infiltration can help prevent long-term groundwater contamination.
### Conclusion
The disposal of mine tailings can have profound impacts on the water table, especially if not properly managed. Groundwater contamination, changes to the water table levels, acid mine drainage, and seepage from tailings dams are among the primary risks. Effective tailings management practices, including the use of liners, water treatment systems, and dry stacking, are critical in minimizing the impact on the water table and ensuring the long-term sustainability of both the mining operation and the surrounding environment.
Tailings Dam Failures
### Common Causes of Tailings Dam Failures
Several factors can contribute to the failure of tailings dams, and in most cases, these failures are due to a combination of human error, design flaws, operational failures, and natural events.
The primary causes include:
1. **Poor Design and Engineering**
- Some tailings dams are constructed using the "upstream" method, which is cheaper but more vulnerable to failure, especially in seismic zones or areas with poor drainage.
- Inadequate geotechnical analysis of the site can lead to dam instability, particularly if the foundation or surrounding material is unsuitable for large-scale storage of tailings.
2. **Inadequate Monitoring and Maintenance**
- Failure to regularly inspect and monitor the structural integrity of tailings dams can result in small problems escalating over time.
- Insufficient maintenance, particularly in older facilities, can lead to wear and tear, leakage, and eventually dam collapse.
3. **Overfilling and Excessive Water**
- When tailings dams are filled beyond their design capacity, the added pressure can destabilize the dam structure.
- Excess water in the tailings can lead to liquefaction (a process where solid materials behave like a liquid under stress), causing the dam to collapse. This often occurs after heavy rainfall or improper water management within the TSF.
4. **Seismic Activity**
- Earthquakes and other seismic events can trigger liquefaction in tailings and cause dam failure, particularly in regions prone to tectonic activity.
- Tailings dams are often more susceptible to seismic failure than traditional water-retaining dams because they are not always designed with seismic risks in mind.
5. **Foundation or Slope Failures**
- The underlying ground or foundation on which the dam is built may be unstable, leading to settling or shifting over time.
- Poorly constructed or steep dam slopes can also lead to landslides, particularly during periods of heavy rainfall or other environmental stresses.
6. **Neglect and Closure**
- Closed or abandoned mines often have tailings dams that are no longer actively managed, leading to degradation over time.
- If these dams are not properly decommissioned and rehabilitated, they are at higher risk of failure.
### Notable Tailings Dam Failures
Some tailings dam failures have had devastating consequences, both in terms of human casualties and environmental impact.
Here are a few significant examples:
#### 1. **Brumadinho Dam Disaster (Brazil, 2019)**
- **Dam Type**: Upstream tailings dam
- **Operator**: Vale S.A.
- **Failure**: The Brumadinho tailings dam, part of an iron ore mine, collapsed on January 25, 2019, releasing nearly 12 million cubic meters of tailings. The slurry inundated downstream communities, killing 270 people and causing massive environmental damage along the Paraopeba River.
- **Cause**: It is believed that liquefaction of the tailings occurred due to poor drainage, the unstable upstream construction method, and a lack of real-time monitoring.
#### 2. **Mount Polley Mine Disaster (Canada, 2014)**
- **Dam Type**: Tailings dam (centerline construction) - **Operator**: Imperial Metals
- **Failure**: On August 4, 2014, the tailings dam at the Mount Polley copper and gold mine in British Columbia failed, releasing 25 million cubic meters of mine waste and water into nearby lakes and rivers, causing widespread contamination.
- **Cause**: A report later found that the foundation of the dam was built on unstable glacial till, which led to the dam's collapse. There were also criticisms regarding the monitoring and management of the facility.
- **Consequences**: The spill severely damaged local ecosystems, fish populations, and water quality. However, there were no direct fatalities. ####
3. **Samarco (Bento Rodrigues) Dam Disaster (Brazil, 2015)**
- **Dam Type**: Upstream tailings dam
- **Operator**: Joint venture between Vale and BHP Billiton
- **Failure**: The Fundão tailings dam at the Samarco iron ore mine collapsed on November 5, 2015, releasing 43 million cubic meters of tailings. The resulting flood buried the nearby village of Bento Rodrigues, killing 19 people, and caused extensive environmental damage along the Rio Doce.
- **Cause**: The failure was attributed to liquefaction due to poor construction, inadequate drainage, and the upstream dam design, which is more susceptible to liquefaction.
- **Consequences**: The disaster resulted in one of Brazil’s worst environmental disasters, with the contamination of rivers, destruction of ecosystems, and long-term impacts on water supply.
#### 4. **Baia Mare Cyanide Spill (Romania, 2000)**
- **Dam Type**: Tailings dam
- **Operator**: Aurul, a joint venture of Australian and Romanian companies - **Failure**: In January 2000, a tailings dam at the Baia Mare gold mine overflowed, releasing 100,000 cubic meters of cyanide-contaminated water into rivers, eventually reaching the Danube.
- **Cause**: The dam overflowed due to heavy rainfall and snowmelt, combined with inadequate water management.
- **Consequences**: The cyanide spill caused significant damage to aquatic life, affecting over 1,000 kilometers of rivers across several countries. The disaster raised awareness of the environmental risks of mining operations.
#### 5. **Church Rock Uranium Mill Tailings Spill (USA, 1979)**
- **Dam Type**: Uranium tailings dam
- **Operator**: United Nuclear Corporation - **Failure**: On July 16, 1979, a tailings dam in Church Rock, New Mexico, ruptured, releasing 1,100 tons of radioactive mill tailings and 370,000 cubic meters of contaminated water into the Puerco River.
- **Cause**: The dam was poorly constructed, leading to its breach.
- **Consequences**: The spill is considered the largest release of radioactive material in U.S. history and had long-term health and environmental impacts on the Navajo Nation.
### Environmental and Social Impacts of Tailings Dam Failures
When a tailings dam fails, the consequences can be catastrophic and long-lasting:
1. **Environmental Damage**
- **Water Contamination**: Tailings are often toxic, containing heavy metals, chemicals, and other contaminants that can poison rivers, lakes, and groundwater. This can devastate aquatic ecosystems and make water unusable for human consumption, agriculture, or recreation.
- **Soil and Land Contamination**: The spread of toxic tailings can render large areas of land infertile and unsuitable for farming or habitation.
- **Habitat Destruction**: Tailings dam failures can obliterate wildlife habitats, particularly when tailings flows inundate forests, rivers, and wetlands.
2. **Human Health Impacts**
- **Immediate Risk to Human Life**: Tailings dam failures often occur suddenly and with little warning, burying homes, communities, and infrastructure under toxic sludge. Lives can be lost through drowning or direct contact with hazardous materials.
- **Long-Term Health Risks**: Contaminated water and soil can lead to long-term health problems, including cancer, respiratory issues, and developmental disorders for communities living near the affected areas.
3. **Economic Consequences**
- **Cost of Clean-Up and Remediation**: Clean-up efforts after a tailings dam failure are extremely costly and can take years or even decades. Mining companies and governments may be held responsible for restoring ecosystems and ensuring that contaminated water sources are treated.
- **Loss of Livelihoods**: Many communities depend on nearby land and water resources for farming, fishing, and tourism. A tailings dam failure can destroy these resources, leading to economic hardship for affected populations.
- **Litigation and Compensation**: Mining companies may face lawsuits and be required to pay compensation to affected communities and individuals. For example, Vale faced billions in fines and compensation costs after the Brumadinho disaster.
### Prevention and Mitigation of Tailings Dam Failures To prevent tailings dam failures and mitigate their impacts, several best practices and regulations have been developed:
1. **Improved Design and Construction**
- Modern tailings dams should be designed with higher safety standards, including factors like seismic stability, proper drainage, and overflow management.
- Avoidance of upstream construction methods, which are more prone to failure, particularly in areas of high rainfall or seismic activity.
2. **Regular Monitoring and Inspection**
- Ongoing monitoring of tailings dam stability, using real-time sensors and geotechnical analysis, can detect early signs of failure, such as deformation or leakage.
- Periodic inspections by independent third-party engineers ensure that maintenance standards are upheld and problems are identified before they become critical.
3. **Emergency Action Plans**
- Mines should have comprehensive emergency action plans in place, including early warning systems for downstream communities, evacuation plans, and rapid response teams in case of dam failure.
4. **Dewatering and Dry Stacking**
- Reducing the water content in tailings by adopting dewatering methods, such as dry stacking, can
Global Tailing storage facility
### 1. **Types of Tailings Storage Facilities (TSFs)**
There are several methods for storing tailings, depending on the geographical, technical, and environmental conditions of the mining site:
#### a. **Tailings Dams**
- **Upstream Dams**: Built incrementally as tailings are deposited, using the tailings themselves to construct the dam wall. Although this method is cost-effective, it is considered less stable and more prone to failure (e.g., Brumadinho, Samarco).
- **Downstream Dams**: More expensive but safer than upstream dams. The dam is built outward and downward from the tailings and is considered more stable under seismic activity or heavy rainfall conditions.
- **Centerline Dams**: Combines aspects of upstream and downstream construction, where each dam raise is built vertically from the previous section, striking a balance between cost and safety.
#### b. **Dry Stacking**
- Tailings are dewatered (thickened or filtered) to a solid consistency and then stacked in layers. This method greatly reduces the risk of dam failure and water contamination, making it one of the safest methods, though it is more expensive.
#### c. **In-Pit Tailings Storage**
- Abandoned or inactive open-pit mines are sometimes used as tailings storage facilities. This option has the advantage of repurposing already disturbed land, reducing the environmental impact.
#### d. **Underground Tailings Storage**
- In some cases, tailings are stored underground in abandoned mine shafts or as backfill in mined-out stopes. This method can provide additional support to underground workings but is limited by capacity.
### 2. **Global Distribution of TSFs**
Tailings storage facilities are located in virtually every country with significant mining operations. Some regions have a higher concentration of large-scale mining and, consequently, large TSFs:
- **South America**: Brazil, Chile, and Peru host many of the world’s largest tailings dams due to extensive copper, iron, and gold mining operations. However, the region has also seen some of the most catastrophic tailings dam failures.
- **North America**: The U.S. and Canada have numerous tailings dams associated with gold, copper, and uranium mining. Strict regulations in these countries have improved dam safety in recent years, though legacy tailings facilities remain a concern.
- **Africa**: Countries like South Africa, Ghana, and the Democratic Republic of Congo (DRC) have significant tailings storage facilities for gold, diamond, and copper mining. Many of these dams face challenges related to water scarcity and aging infrastructure.
- **Australia**: As a major mining nation, Australia has extensive tailings storage for its iron ore, gold, and bauxite mines. Australian mines often utilize dry stacking in arid regions to minimize water use.
- **Asia**: China, Mongolia, and Indonesia have rapidly growing mining sectors, and the development of tailings dams has followed suit. China alone has thousands of tailings dams, though the country has seen several high-profile failures in recent decades.
- **Europe**: Eastern Europe and Russia have large tailings storage facilities associated with nickel, copper, and gold mining. Russia, in particular, has some of the world’s largest TSFs, though concerns about environmental management and regulation persist.
### 3. **Regulation and Management of Tailings Storage Facilities**
#### a. **International Guidelines**
- **Global Industry Standard on Tailings Management (GISTM)**: Launched in 2020 in response to the Brumadinho disaster, the GISTM sets out best practices for the safe design, operation, and closure of tailings facilities. It is a voluntary guideline developed by the International Council on Mining and Metals (ICMM), the United Nations Environment Programme (UNEP), and Principles for Responsible Investment (PRI).
- **The Mining Association of Canada’s Towards Sustainable Mining (TSM) Protocol**: This initiative provides tools for mine operators to assess and manage tailings dams based on risk management and performance standards.
#### b. **National and Regional Regulations**
- **Canada** and **Australia** have stringent regulations that require tailings facilities to be monitored and assessed by independent engineers, as well as adhere to safety and environmental standards.
- **Brazil**: In response to the tailings dam disasters at Samarco (2015) and Brumadinho (2019), Brazil banned upstream tailings dams and implemented stricter regulations, although enforcement remains a challenge.
- **European Union**: The EU Tailings Directive (2006/21/EC) governs the management of tailings and waste rock from extractive industries, with a focus on preventing dam failures and environmental pollution.
### 4. **Tailings Storage Facility Failures**
Failures of tailings dams can be catastrophic, releasing millions of cubic meters of toxic waste into the environment. Some of the key causes of these failures include:
- **Liquefaction**: When tailings, especially those with high water content, behave like a liquid under stress (e.g., seismic activity), leading to dam collapse.
- **Overtopping**: Heavy rains or insufficient water management can cause a tailings dam to overflow, leading to failure.
- **Slope Instability**: Poor dam design, foundation issues, or insufficient drainage can cause the dam’s slopes to weaken and collapse. Notable failures include:
- **Brumadinho (Brazil, 2019)**
- **Samarco (Brazil, 2015)** - **Mount Polley (Canada, 2014)**
### 5. **Future Trends in Tailings Storage**
#### a. **Dry Stacking**
- Dry stacking is becoming more common, especially in water-scarce regions or areas with high seismic activity. This method reduces the amount of water in tailings and minimizes the risk of dam failure.
#### b. **Increased Monitoring with Technology**
- The use of remote sensing technology, such as drones, satellite imagery, and real-time sensors, is improving the ability of operators to monitor tailings dams for signs of instability. Machine learning and AI are also being applied to predict potential dam failures.
#### c. **Sustainable Tailings Management**
- Mining companies are increasingly focusing on sustainable tailings management practices, including the recovery of valuable materials from tailings, reducing the overall volume of waste, and minimizing environmental impact through responsible closure practices.
#### d. **Repurposing and Recycling Tailings**
- In some cases, tailings are being repurposed for other uses, such as building materials, or are being reprocessed to extract remaining valuable minerals. This reduces the volume of material stored in tailings dams and mitigates long-term environmental risks.
### 6. **Conclusion**
Global storage facilities for mine tailings are a crucial but challenging aspect of the mining industry. The need for effective management, monitoring, and regulation of these facilities is becoming increasingly important as the demand for metals and minerals grows, and the environmental and safety risks associated with tailings disposal become more apparent. With advances in technology and increased focus on sustainable practices, the industry is gradually moving toward safer and more responsible management of tailings storage facilities.
Why research tailings?
Here’s why studying tailings is crucial:
### 1. **Environmental Impact Mitigation**
- **Pollution Prevention**: Tailings often contain toxic substances such as heavy metals, sulfides, and chemicals used in mineral extraction (e.g., cyanide or mercury). If these materials leach into soil, groundwater, or surface water, they can cause severe environmental contamination. Research helps in understanding how tailings interact with the environment and guides the development of methods to prevent leakage or neutralize harmful components.
- **Water Management**: Many mining operations use large amounts of water, and tailings ponds often contain significant volumes of contaminated water. Studying tailings is crucial for designing systems that minimize water consumption, improve water recycling, and prevent water pollution.
- **Ecological Restoration**: Research supports the development of rehabilitation and reclamation techniques to restore land and ecosystems after mining, reducing the long-term ecological footprint of tailings storage facilities (TSFs).
### 2. **Safety and Risk Management**
- **Prevention of Tailings Dam Failures**: Catastrophic tailings dam failures, such as those at Brumadinho and Samarco, have devastating human, economic, and environmental consequences. Research into the geotechnical properties of tailings, failure mechanisms, and early-warning systems helps reduce the risk of dam failures.
- **Improving Structural Integrity**: Understanding the physical and chemical behavior of tailings over time is key to improving the design, stability, and monitoring of tailings dams, particularly in areas prone to natural disasters such as earthquakes or floods.
### 3. **Tailings Reprocessing and Resource Recovery**
- **Extracting Remaining Minerals**: In some cases, tailings still contain valuable minerals that were not fully extracted during the initial processing. Research into reprocessing methods can recover these resources, reducing the need for new mining operations and decreasing the volume of waste.
- **Innovative Use of Tailings**: Research explores ways to repurpose tailings in construction materials (e.g., concrete, bricks), land reclamation, or other industrial uses, which can help reduce the long-term environmental burden of tailings storage.
### 4. **Economic Efficiency**
- **Cost-Effective Waste Management**: Developing more efficient tailings management systems can lower the costs associated with constructing and maintaining TSFs. Research into dry stacking, dewatering, and other alternative storage methods helps mining companies reduce operational costs while ensuring safety and compliance with regulations.
- **Tailings as a Future Resource**: As demand for certain minerals increases and technologies evolve, tailings from old mining operations may become economically viable to reprocess. Research into tailings mineralogy and recovery processes can turn waste into a valuable resource.
### 5. **Regulatory Compliance and Industry Standards**
- **Compliance with Environmental Regulations**: Governments are increasingly implementing stringent regulations for tailings storage and management to prevent environmental disasters. Research helps mining companies comply with these regulations, avoid fines, and maintain their social license to operate.
- **Development of Global Standards**: Research feeds into the development of international guidelines, such as the **Global Industry Standard on Tailings Management (GISTM)**, which sets the benchmark for safe and sustainable tailings storage practices worldwide.
### 6. **Addressing Climate Change and Sustainability**
- **Reducing Carbon Footprint**: Sustainable tailings management can help reduce the overall carbon footprint of mining operations by minimizing water and energy use. Research into tailings storage techniques, such as dry stacking, can support this goal.
- **Adaptation to Climate Change**: Tailings storage facilities are vulnerable to the impacts of climate change, such as increased rainfall, flooding, and more extreme weather events. Research helps improve the resilience of TSFs to these challenges and ensures long-term sustainability.
### 7. **Innovation in Monitoring and Technology**
- **Advanced Monitoring Techniques**: Research into real-time monitoring technologies such as drones, satellite imaging, and IoT sensors helps detect early signs of instability in tailings dams. These innovations improve safety and operational efficiency.
- **Data-Driven Decision Making**: Big data, artificial intelligence, and machine learning models are increasingly being applied to analyze tailings dam performance, predict potential failures, and optimize tailings management strategies.
### 8. **Social Responsibility and Community Health**
- **Protecting Communities**: Tailings dam failures can result in loss of life, displacement of communities, and long-term health hazards due to exposure to toxic materials. Research helps mitigate these risks, ensuring that mining operations do not pose a danger to nearby populations.
- **Transparency and Public Trust**: Ongoing research and transparent communication about the safety and environmental management of tailings facilities are essential for maintaining public trust and preventing conflicts with local communities.
### Conclusion
Researching tailings is critical for minimizing the environmental, social, and economic risks associated with mining waste. It promotes safer, more sustainable tailings management practices, supports regulatory compliance, and fosters innovation in waste reprocessing and resource recovery. By investing in tailings research, the mining industry can reduce its ecological footprint, prevent disasters, and ensure the long-term viability of its operations.
Tailings Best Practice
### 1. **Design and Construction of Tailings Storage Facilities (TSFs)**
#### a. **Comprehensive Site Selection**
- **Geotechnical and Hydrological Assessment**: Conduct thorough geotechnical studies to assess soil stability, seismic risk, water flow, and topography. Proper site selection is critical to minimize the risk of dam failure and environmental contamination.
- **Minimizing Impact on Ecosystems**: Choose a location that reduces the potential for water contamination and environmental disruption. Consider downstream habitats, communities, and water resources when designing the facility.
#### b. **Tailings Dam Design**
- **Choose the Right Construction Method**: The three main types of tailings dams—**upstream**, **downstream**, and **centerline**—should be selected based on site-specific conditions, climate, and tailings characteristics. Downstream and centerline methods are generally safer than upstream designs, especially in seismically active or high-rainfall areas.
- **Appropriate Material Usage**: Use materials for dam construction that promote stability and can withstand environmental conditions (rainfall, seismic activity). In some cases, tailings themselves can be used as construction materials, but only when their behavior is well understood.
- **Incorporate Redundancy**: Design tailings dams with multiple layers of defense, including spillways, drainage systems, and backup containment structures to handle extreme events like floods.
### 2. **Water Management and Dry Stacking**
#### a. **Minimize Water in Tailings**
- **Dewatering Tailings**: One of the best practices for reducing the risk of dam failure is to minimize water in tailings. Techniques like **thickened tailings**, **paste tailings**, and **dry stacking** involve removing water from the tailings before deposition, which significantly reduces the likelihood of liquefaction and dam failure.
- **Recycle Water**: Maximize water recovery from tailings ponds to reduce the need for fresh water in mining operations. Closed-loop water systems reduce the environmental footprint and ensure more sustainable water usage.
#### b. **Dry Stacking**
- **Dry stacking** is considered one of the safest tailings storage methods, especially in areas with high rainfall or seismic activity. Filtered tailings are stacked in solid form, eliminating the risk of dam failure caused by excess water. Although more costly, dry stacking is increasingly being adopted to improve safety and environmental performance.
### 3. **Monitoring and Risk Assessment**
#### a. **Real-Time Monitoring Systems**
- **Sensors and Drones**: Use modern technologies like drones, real-time sensors, and satellite imaging to monitor tailings dam stability, water levels, and any signs of structural deformation or seepage. These technologies enable quick identification of potential issues before they become critical.
- **Early Warning Systems**: Install systems to monitor changes in water pressure, seismic activity, or slope movement to provide early warnings of potential dam instability or failure.
#### b. **Regular Risk Assessments**
- **Routine Inspections**: Conduct regular inspections by qualified engineers and independent third parties. Routine inspections can identify early warning signs such as cracking, seepage, or settlement.
- **Failure Mode and Effect Analysis (FMEA)**: Perform regular failure mode analysis to identify possible failure scenarios, the likelihood of their occurrence, and their potential impacts.
### 4. **Tailings Reprocessing and Resource Recovery**
#### a. **Reprocessing for Valuable Minerals**
- Reprocessing old tailings can help recover additional minerals that were not extracted during the initial mining process. Advances in processing technology can make tailings a secondary source of valuable materials, while reducing the volume of waste stored in TSFs.
#### b. **Innovative Uses for Tailings**
- Research is ongoing into how tailings can be reused in construction materials, such as cement or bricks. This can reduce the long-term storage needs for tailings and help mining companies achieve sustainability goals.
### 5. **Post-Closure Management**
#### a. **Reclamation and Rehabilitation**
- **Vegetation and Soil Restoration**: After mining is complete, rehabilitate tailings storage sites by covering them with soil and vegetation. Proper reclamation reduces the risk of erosion, contamination, and dust generation, while restoring ecosystems.
- **Long-Term Monitoring**: Even after closure, TSFs must be monitored for potential issues, including water contamination, slope stability, and surface erosion. Regular post-closure audits ensure that closed tailings facilities remain safe over time.
#### b. **Progressive Reclamation**
- Where possible, mining companies should adopt progressive reclamation, which involves rehabilitating portions of the mine and tailings facility as they become inactive. This reduces the total area that needs rehabilitation at mine closure and spreads the cost over the life of the mine.
### 6. **Community and Stakeholder Engagement**
#### a. **Transparent Communication**
- **Open Dialogue with Communities**: Engage with local communities and stakeholders to communicate tailings management plans, environmental monitoring results, and emergency preparedness procedures. Building trust with the local population is essential, especially for projects with potential environmental and social risks.
- **Environmental and Social Impact Assessments (ESIA)**: Conduct thorough ESIAs before constructing new tailings storage facilities. This ensures that potential environmental and social risks are identified and mitigated.
#### b. **Emergency Preparedness Plans**
- **Community Safety Planning**: Develop comprehensive emergency preparedness and response plans in collaboration with local authorities and communities. These plans should include evacuation routes, alert systems, and training exercises to ensure that local populations are prepared in case of a tailings dam failure.
### 7. **Adopting and Complying with Global Standards**
#### a. **Global Industry Standard on Tailings Management (GISTM)**
- The **Global Industry Standard on Tailings Management (GISTM)**, developed by the International Council on Mining and Metals (ICMM) and other global stakeholders, establishes best practices for tailings facility safety. It provides a framework for zero harm to people and the environment by promoting independent oversight, risk assessments, and monitoring.
#### b. **Compliance with Local and International Regulations**
- Mining companies should comply with national regulations on tailings management, as well as international guidelines. Adhering to both ensures that operations meet safety and environmental standards, reducing liability and improving public perception.
### 8. **Innovation and Research in Tailings Management**
#### a. **New Technologies**
- **Geopolymer Tailings**: Research is exploring the use of tailings in creating environmentally friendly geopolymer materials, which can be used in construction while immobilizing hazardous elements.
- **Tailings Management in Extreme Environments**: As mining expands into areas with extreme conditions (arid regions, Arctic environments), new technologies are being developed to manage tailings safely under these challenging conditions.
### 9. **Sustainability and Climate Change Considerations**
#### a. **Reducing the Carbon Footprint of TSFs**
- Sustainable tailings management practices should include minimizing energy and water use, using renewable energy sources where possible, and reducing the carbon footprint of operations. Dry stacking and reprocessing tailings can significantly lower environmental impacts.
#### b. **Climate Resilience**
- Incorporate climate change models into the design and management of TSFs, especially in areas prone to increasing rainfall, flooding, or extreme weather events. Ensuring the resilience of TSFs under changing climate conditions is critical to long-term sustainability.
### Conclusion
Implementing best practices in tailings management is crucial for reducing environmental impact, ensuring safety, and meeting regulatory requirements. The adoption of advanced monitoring technologies, safer storage methods like dry stacking, community engagement, and compliance with global standards all contribute to responsible and sustainable tailings management. By prioritizing innovation, safety, and environmental stewardship, mining companies can minimize the risks associated with tailings and contribute to more sustainable mining operations.
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
Your article helped me a lot, is there any more related content? Thanks! https://www.binance.com/bn/register?ref=UM6SMJM3
Your article helped me a lot, is there any more related content? Thanks!
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Your article helped me a lot, is there any more related content? Thanks!
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
Your article helped me a lot, is there any more related content? Thanks!
1. https://www.mineralprocessing.co.za/2656/mine-tailings-storage-facility-design-geotechnical-factors-you-need-to-know/tsf/basdew/
2. https://www.mineralprocessing.co.za/301/tailings-dam-failure/tsf/basdew/
3. https://www.mineralprocessing.co.za/216/what-is-tailings/tsf/basdew/
4. https://www.mineralprocessing.co.za/148/tailings-storage-facility/tsf/basdew/
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article. https://accounts.binance.com/ur/register-person?ref=WTOZ531Y
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
5550’XOR(555*if(now()=sysdate(),sleep(15),0))XOR’Z
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
har også bogmærket dig for at se på nye ting på din blog Hej! Har du noget imod, hvis jeg deler din blog med min facebook
Very nice post. I just stumbled upon your weblog and wished to say that I’ve truly enjoyed browsing your blog posts. In any case I’ll be subscribing to your rss feed and I hope you write again very soon!
Hello there! I know this is kinda off topic but I’d figured I’d ask. Would you be interested in exchanging links or maybe guest authoring a blog article or vice-versa? My blog goes over a lot of the same topics as yours and I think we could greatly benefit from each other. If you are interested feel free to send me an email. I look forward to hearing from you! Wonderful blog by the way!
Conhecem algum método para ajudar a evitar que o conteúdo seja roubado? Agradecia imenso.
také jsem si vás poznamenal, abych se podíval na nové věci na vašem blogu.|Hej! Vadilo by vám, kdybych sdílel váš blog s mým facebookem.
Thanks for sharing. I read many of your blog posts, cool, your blog is very good.
YouJizz I really enjoy posts that make readers reflect. Thank you for the opportunity to leave a comment!
Good day! This post couldn’t be written any better! Reading through this post reminds me of my old room mate! He always kept talking about this. I will forward this post to him. Pretty sure he will have a good read. Many thanks for sharing!
Děkuji|Ahoj všem, obsah, který je na této stránce k dispozici.
Thanks|Hi to all, the content available at this site.
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
) Znovu ho navštívím, protože jsem si ho poznamenal. Peníze a svoboda je nejlepší způsob, jak se změnit, ať jste bohatí a
I will visit again since I bookmarked it. Money and freedom is the best way to change whether you are rich and
Your article helped me a lot, is there any more related content? Thanks!
Hey there just wanted to give you a quick heads up. The words in your post seem to be running off the screen in Ie. I’m not sure if this is a formatting issue or something to do with browser compatibility but I thought I’d post to let you know. The design and style look great though! Hope you get the problem fixed soon. Kudos
nogensinde løbe ind i problemer med plagorisme eller krænkelse af ophavsretten? Mit websted har en masse unikt indhold, jeg har
Ever run into problems with plagorism or copyright infringement? My site has a lot of unique content that I have
råb ud og sig, at jeg virkelig nyder at læse gennem dine blogindlæg.
Shout out and say I truly enjoy reading through your blog posts.
O conteúdo existente nesta página é realmente notável para a experiência das pessoas,
The content existing on this page is really remarkable for people’s experience
Muito obrigado!}
Thank you very much!}
Its my pleasure
pokračovat v tom, abyste vedli ostatní.|Byl jsem velmi šťastný, že jsem objevil tuto webovou stránku. Musím vám poděkovat za váš čas
continue guiding others.I was very happy to discover this website. I must thank you for your time
مرحبًا، أعتقد أن هذه مدونة ممتازة. لقد عثرت عليها بالصدفة ;
Hello, I think this is an excellent blog. I found it by chance
This is very interesting, You are a very skilled blogger. I’ve joined your feed and look forward to seeking more of your fantastic post. Also, I’ve shared your site in my social networks!
Thanks for sharing. I read many of your blog posts, cool, your blog is very good.
Thank you for your comment
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
HERE IS MORE RELATED CONTENT:
1. What is tailings? The fundamental Parameters you need to know.
https://www.mineralprocessing.co.za/216/what-is-tailings/tsf/basdew/
2. Tailings Dam Failure: What you need to know?
https://www.mineralprocessing.co.za/301/tailings-dam-failure/tsf/basdew/
3. Tailings Storage Facility
https://www.mineralprocessing.co.za/148/tailings-storage-facility/tsf/basdew/
4. wHAT WHERE AND HOW OF TAILINGS
https://www.youtube.com/watch?v=1kRie2o3R4M
5. Mine Tailings Management – Role of Geotechnical and Environmental Engineers
https://www.youtube.com/watch?v=fdksX87mBGU
Your article helped me a lot, is there any more related content? Thanks!
Thank you really appreciate the feedback
