Tailings storage facility
Introduction

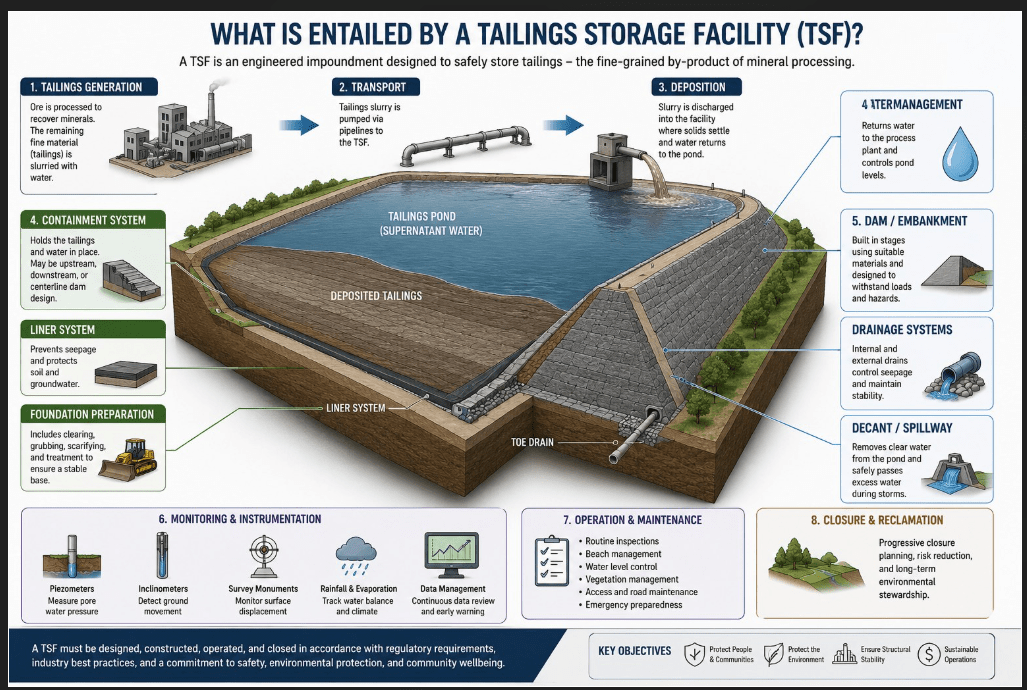

Here's an overview of key components of a TSF, different types of storage, and best practices for their management.
### 1. **Components of a Tailings Storage Facility**
- **Dam/Embankment**: The dam or embankment is the structure used to contain the tailings within the facility. It is typically constructed using local materials or tailings themselves and designed to withstand the pressure exerted by the stored material.
- **Tailings Pond**: In many TSFs, the tailings are stored in a pond form, where the solids settle and the water either evaporates or is recycled. The tailings pond acts as a containment area for both solid and liquid waste.
- **Spillways and Drainage Systems**: These components manage water within the facility by diverting excess water, reducing the risk of overtopping, and controlling seepage. Proper drainage systems are essential to prevent water buildup that could lead to dam failure.
- **Liners**: Some TSFs use liners (e.g., clay or synthetic membranes) to prevent leachate from contaminating groundwater. The liner helps prevent seepage of toxic chemicals from the tailings into the surrounding environment.
- **Decant System**: A decant system is used to remove water from the tailings storage facility, helping to manage water levels and maintain stability.
### 2. **Types of Tailings Storage Facilities**
#### a. **Conventional Tailings Dams**
- **Upstream Dams**: Built by raising the dam crest in the direction of the tailings. This design uses tailings to build up the embankment, making it the most cost-effective but also the riskiest option, especially in regions prone to seismic activity or heavy rainfall.
- **Downstream Dams**: Built by raising the dam crest away from the tailings, making the dam more stable but more expensive to construct. Downstream dams are considered safer than upstream designs, especially in areas with higher environmental risks.
- **Centerline Dams**: A hybrid approach where the dam is raised vertically, both upstream and downstream, in a controlled manner. Centerline dams offer a compromise between cost and safety.
#### b. **Dry Stacking**
- **Dry Stack Tailings**: In this method, tailings are dewatered (filtered or thickened) to form a solid mass that can be stacked, eliminating the need for a tailings pond. Dry stacking is considered one of the safest tailings storage methods because it significantly reduces the risk of dam failure by removing water from the tailings.
#### c. **In-pit Disposal**
- **Tailings in Abandoned Pits**: In-pit disposal involves placing tailings in old or unused open-pit mines. This reduces the need for additional surface area and takes advantage of the natural containment of the pit, minimizing the environmental footprint.
#### d. **Subaqueous Disposal**
- **Tailings Underwater**: In regions with high rainfall or environmental sensitivity, tailings may be stored underwater to prevent oxidation of sulfide minerals and acid mine drainage. Subaqueous storage reduces the exposure of tailings to air, thus preventing chemical reactions that could release harmful substances.
#### e. **Underground Disposal**
- **Backfilling**: In underground mining operations, tailings can be used to backfill mine voids. This method stabilizes underground structures while reducing the surface area required for tailings storage.
### 3. **Best Practices for Tailings Storage Facilities**
#### a. **Risk-Based Design**
- **Site Selection**: Choose a site that minimizes environmental and social risks, taking into account seismic activity, rainfall, and proximity to communities or water sources.
- **Failure Modes Analysis**: Conduct rigorous failure modes and effects analysis (FMEA) during design to identify and mitigate potential risks. This includes geotechnical assessments to determine the best dam type for the conditions.
- **Multi-layered Design**: Incorporate multiple lines of defense, including adequate drainage, spillways, and liners, to handle extreme weather events or operational failures.
#### b. **Water Management**
- **Reduce Water Content**: Tailings with less water content are less likely to experience liquefaction, which can lead to dam failures. Methods such as thickened tailings, paste tailings, and dry stacking help reduce the volume of water stored in a TSF.
- **Recycling and Reuse**: Minimize fresh water consumption by recycling water from the TSF back into mining operations. This reduces the need for large tailings ponds and lowers environmental risks.
#### c. **Monitoring and Surveillance**
- **Real-Time Monitoring**: Implement real-time monitoring systems using drones, satellites, and sensors to track the stability of dams, water levels, and seepage. Early detection of anomalies can prevent catastrophic failures.
- **Regular Inspections**: Perform routine inspections and assessments by independent third-party engineers to evaluate the structural integrity and performance of the TSF.
- **Data-Driven Decision Making**: Utilize data from sensors and inspections to inform tailings management strategies and ensure continuous improvement of safety protocols.
#### d. **Emergency Preparedness**
- **Emergency Response Plan**: Develop comprehensive emergency response plans in case of tailings dam failure, including evacuation routes, communication plans, and environmental mitigation strategies.
- **Training and Simulations**: Conduct regular training exercises with local communities, employees, and emergency response teams to ensure preparedness in the event of an emergency.
#### e. **Closure and Reclamation**
- **Progressive Reclamation**: Where possible, conduct progressive reclamation of parts of the TSF that are no longer in use. This reduces the total area that needs rehabilitation at closure and spreads the costs over the life of the mine.
- **Post-Closure Monitoring**: Even after the mine has closed, tailings facilities must be monitored to ensure long-term stability. Monitoring systems should be maintained to detect any post-closure issues such as erosion, water contamination, or structural instability.
### 4. **Global Tailings Management Standards**
#### a. **Global Industry Standard on Tailings Management (GISTM)**
- The **GISTM** was developed in response to the increasing number of tailings dam failures globally, particularly after the Brumadinho disaster in Brazil (2019). It sets forth best practices for the safe management of TSFs, focusing on the "zero harm" principle. It emphasizes independent oversight, comprehensive risk assessments, and transparent reporting on tailings dam safety.
#### b. **International Council on Mining and Metals (ICMM)**
- The ICMM, a global mining industry organization, has published guidelines on best practices for tailings management. Their framework ensures member companies adhere to global standards for safety, environmental stewardship, and transparency.
### 5. **Challenges and Innovations in TSF Management**
#### a. **Challenges**
- **Climate Change**: Changes in weather patterns, such as more intense rainfall, can put additional stress on TSFs, increasing the risk of failure. Designing facilities that are resilient to climate change is essential for long-term stability.
- **Seismic Activity**: In regions prone to earthquakes, the design of TSFs must incorporate seismic risk analysis. Failure to do so can result in catastrophic dam collapses.
#### b. **Innovations**
- **Dry Stacking**: As one of the safest methods for tailings storage, dry stacking eliminates the need for large ponds and minimizes the risk of dam failure.
- **Tailings Reprocessing**: Technological advancements in reprocessing can help extract additional valuable minerals from tailings, reducing the total volume stored and the environmental footprint of mining.
- **Geo-polymerization**: Researchers are exploring the use of tailings in creating geopolymer materials that can be used in construction, turning waste into a resource.
### Conclusion
The management of **Tailings Storage Facilities** is critical to ensuring the safety and sustainability of mining operations. Best practices focus on designing for long-term stability, minimizing water use, regular monitoring, and emergency preparedness. By adopting global standards, utilizing innovative technologies, and continuously improving management practices, mining companies can mitigate the risks associated with tailings storage and contribute to more sustainable mining.

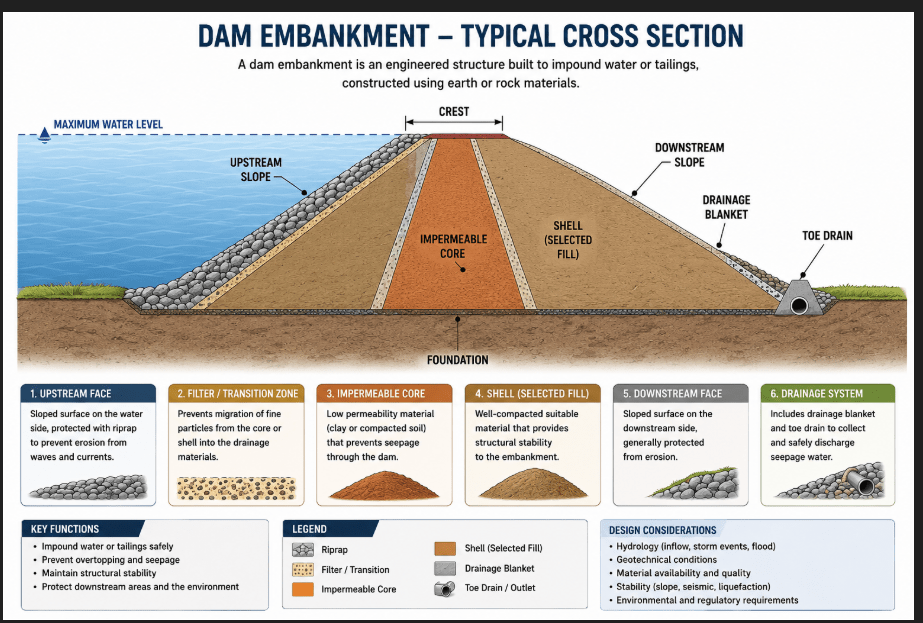

Dam / Embankment
Here are some key points regarding the dam/embankment in tailings storage:
### 1. **Construction Materials**
- **Local Materials**: TSF dams are often built using locally sourced materials such as rock, sand, or clay to form the embankment. The availability of local materials can reduce costs and make construction easier.
- **Tailings**: In some cases, tailings themselves are used as part of the dam construction, especially in **upstream** and **centerline** dam designs. However, the geotechnical properties of the tailings need to be well understood to ensure stability, especially under varying moisture conditions and over time.
- **Rockfill or Soil Materials**: In **downstream** dam designs, rockfill, soil, or other robust materials are often used to build the embankment. This offers greater stability and resilience, particularly in regions with high rainfall or seismic activity.
### 2. **Types of Tailings Dams**
- **Upstream Dams**: Constructed progressively in the upstream direction using tailings themselves. This is the least expensive method, but also the least stable, particularly in seismic zones or areas prone to heavy rainfall.
- **Downstream Dams**: Built by raising the embankment away from the tailings deposit, making it more stable. This method requires more material and is more expensive but provides greater long-term safety.
- **Centerline Dams**: A combination of the upstream and downstream methods, where the crest of the dam is raised vertically as tailings are added. This offers a middle ground between cost and safety.
### 3. **Design Considerations**
- **Load-Bearing Capacity**: The dam must be designed to withstand the weight of the tailings, which can vary based on the density of the material and the water content.
- **Hydraulic Pressure**: Tailings often contain significant amounts of water, which can exert hydraulic pressure on the dam. This pressure needs to be factored into the design, especially in areas with high rainfall or where water levels may fluctuate.
- **Seepage Control**: Proper drainage systems and liners are often integrated into the dam to manage water and reduce seepage, which could compromise the dam’s integrity or lead to contamination of surrounding areas.
- **Slope Stability**: The slope of the embankment is carefully designed to balance stability and the need for efficient storage space. Too steep a slope increases the risk of collapse, while too shallow a slope limits the storage capacity.
- **Seismic Considerations**: In areas prone to earthquakes, seismic resilience is a key design factor. Special materials and construction techniques are used to ensure that the dam can withstand seismic activity without failing.
### 4. **Risks Associated with Dams/Embankments**
- **Liquefaction**: If the tailings or dam materials become saturated with water, they may lose strength and flow like a liquid, a process known as liquefaction. This is a common cause of dam failures in upstream designs.
- **Overtopping**: If the water level within the TSF rises above the dam crest, it can lead to overtopping and catastrophic failure. This risk can be mitigated by proper water management and regular monitoring of water levels.
- **Erosion**: Surface water, particularly during heavy rainfall, can erode the dam’s surface, weakening it over time. Proper surface drainage and erosion control measures are critical for maintaining dam stability.
### 5. **Monitoring and Maintenance**
- **Real-Time Monitoring**: Modern tailings dams are often equipped with sensors to monitor pressure, water levels, and ground movement in real-time. This data can alert engineers to potential issues before they become critical.
- **Regular Inspections**: Regular inspections by qualified geotechnical engineers ensure that any signs of distress, such as cracks, seepage, or slope movement, are identified and addressed promptly.
- **Maintenance**: Regular maintenance of drainage systems, spillways, and embankments is essential to ensure the long-term safety and functionality of the dam.
### 6. **Environmental and Safety Considerations**
- **Containment of Toxic Substances**: Tailings often contain hazardous substances, including heavy metals or chemicals used in mineral processing. The dam must be designed to prevent these materials from leaking into the environment, especially groundwater and surface water bodies.
- **Emergency Preparedness**: Dams are designed with emergency overflow channels (spillways) to handle extreme weather events, such as heavy rainfall, that could cause the TSF to exceed its capacity. In conclusion, the dam or embankment in a TSF is a critical safety feature designed to contain potentially hazardous mining waste materials. Proper design, construction, and continuous monitoring are essential for maintaining the integrity of the structure and preventing catastrophic failures. Each dam type—upstream, downstream, and centerline—has specific applications and risks, and selecting the appropriate one is crucial for both operational efficiency and long-term safety.
Tailings Pond
### 1. **Function of a Tailings Pond**
- **Separation of Solids and Liquids**: The primary function of a tailings pond is to allow solid particles in the tailings slurry to settle at the bottom, while water remains on top. Over time, the solids consolidate, creating a denser material at the base of the pond, while the clarified water can be managed.
- **Water Management**: Tailings ponds help manage the large volumes of water used in the mineral extraction process. Water in the pond may either evaporate, seep into the ground (if there is no liner), or be collected and recycled back into the processing plant for reuse. Efficient water management is crucial for both environmental protection and reducing the demand for fresh water in mining operations.
- **Storage of Residual Chemicals**: Tailings often contain residual chemicals used during the extraction process, such as cyanide or sulfuric acid. The pond acts as a containment system to prevent these chemicals from leaking into the surrounding environment.
### 2. **Tailings Pond Design**
- **Depth and Area**: The size and depth of a tailings pond depend on the volume of tailings generated by the mining operation. The pond must be large enough to accommodate both the solids and the water, while allowing adequate time for the solids to settle.
- **Liners**: Some tailings ponds are constructed with liners (such as clay or synthetic membranes) to prevent the seepage of contaminated water into the surrounding soil or groundwater. The type of liner depends on the local geology and the toxicity of the tailings.
- **Decant Systems**: A decant system is typically installed in a tailings pond to remove excess water from the surface. This water can be recycled back into the plant for processing or treated before being released into the environment.
### 3. **Challenges in Tailings Pond Management**
#### a. **Water Balance**
- **Evaporation vs. Recycling**: Managing the balance between water evaporation and the need for water in processing operations is a challenge in dry or arid climates. Conversely, in wet climates, excess water must be carefully managed to avoid overtopping and dam failure.
- **Water Seepage**: Without proper lining, water from the tailings pond can seep into the groundwater, carrying with it heavy metals or other contaminants. This can cause long-term environmental damage.
#### b. **Solids Settling and Consolidation**
- **Rate of Settling**: Fine particles, such as clay or silt, may take a long time to settle in the pond. If the rate of deposition exceeds the rate of settling, the pond can become overloaded, increasing the risk of overtopping or failure.
- **Consolidation**: Over time, the settled solids become more compact, reducing the volume of the pond that is needed to contain them. However, this process can take years, and in the meantime, the volume of incoming tailings needs to be carefully managed.
#### c. **Tailings Liquefaction**
- **Risk of Liquefaction**: If tailings become too saturated with water, they may lose their structural integrity and behave like a liquid. This phenomenon, known as liquefaction, is one of the leading causes of tailings dam failures. Managing the water content of the pond is essential to avoid this risk.
### 4. **Environmental and Safety Considerations**
#### a. **Preventing Contamination**
- **Water Treatment**: Before any water is released from a tailings pond, it must be treated to remove contaminants such as heavy metals, chemicals, and suspended solids. Water treatment systems vary depending on the composition of the tailings and local environmental regulations.
- **Seepage Control**: In addition to liners, tailings ponds may have monitoring systems to detect seepage and protect groundwater. These systems can include groundwater wells, monitoring boreholes, and real-time data collection to track the movement of water from the pond.
#### b. **Risk of Failure**
- **Overtopping**: One of the most common causes of tailings pond failure is overtopping, where water exceeds the capacity of the pond or dam. This can occur due to excessive rainfall, poor design, or a lack of proper water management.
- **Dam Failures**: Tailings dam failures can have catastrophic environmental impacts, releasing millions of cubic meters of contaminated water and tailings into the surrounding environment. Maintaining the structural integrity of the pond’s dam or embankment is critical for preventing such disasters.
### 5. **Regulations and Best Practices**
- **Global Standards**: International standards such as the **Global Industry Standard on Tailings Management (GISTM)** provide guidelines for the safe design, construction, operation, and closure of tailings ponds. These standards aim to minimize risks to both the environment and communities.
- **Regular Inspections**: Tailings ponds require regular inspections to ensure that the dam and drainage systems are functioning correctly. Inspections also check for signs of seepage, erosion, or other structural weaknesses.
- **Emergency Response Plans**: In the event of a dam breach or other emergency, companies must have response plans in place to minimize the impact on local communities and ecosystems. These plans typically involve communication systems, evacuation routes, and containment measures to manage spills.
### 6. **Advancements in Tailings Pond Technology**
#### a. **Thickened Tailings**
- **Reduced Water Content**: Advances in thickening technologies allow for the reduction of water in tailings before they are deposited in the pond. This reduces the volume of water in the pond, making it safer and less prone to liquefaction.
#### b. **Dry Stacking**
- **Alternative to Wet Storage**: Dry stacking involves dewatering tailings to the point where they can be stacked in a solid form, eliminating the need for a tailings pond altogether. This method is increasingly being adopted as it significantly reduces the risk of dam failure.
### 7. **Closure and Rehabilitation of Tailings Ponds**
- **Capping**: Once a tailings pond has reached the end of its life, it is typically capped with a layer of soil and vegetation to prevent erosion and water infiltration. This helps stabilize the surface and reduce the risk of environmental contamination.
- **Post-Closure Monitoring**: Even after closure, tailings ponds require ongoing monitoring to ensure that the structure remains stable and that no seepage or environmental issues occur.
### Conclusion
Tailings ponds are an essential part of mining operations for managing both solid and liquid waste. However, they also present significant environmental and safety risks if not properly managed. Effective design, construction, and monitoring are critical for ensuring that tailings ponds function safely and do not pose a risk to nearby communities or ecosystems. As mining practices evolve, there is a growing emphasis on reducing the reliance on wet tailings storage through technologies like dry stacking and improving water management to mitigate the risks associated with tailings ponds.

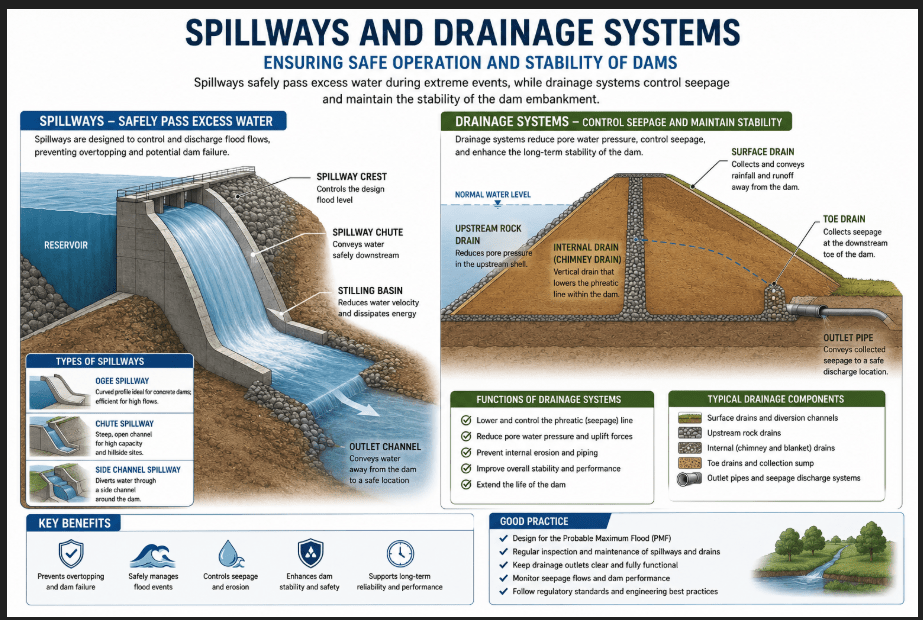

Spillways and drainage systems
### 1. **Spillways** A **spillway** is a structure designed to safely convey excess water from the tailings pond or impoundment, typically during heavy rainfall, snowmelt, or unexpected surges in water levels. Its primary function is to prevent overtopping, which can lead to catastrophic failure of the dam or embankment.
#### Key Features of Spillways:
- **Design for Extreme Events**: Spillways are engineered to handle extreme water flow conditions, such as intense rainfall or storm events, ensuring that excess water is safely directed away from the dam.
- **Overflow Channels**: These channels provide a controlled path for excess water to flow out of the tailings pond, reducing the pressure on the dam and preventing overtopping.
- **Energy Dissipation**: Spillways often include energy dissipation features (e.g., stilling basins, stepped channels) that reduce the velocity and erosive force of water exiting the system, protecting the downstream environment.
- **Freeboard Maintenance**: The freeboard is the vertical distance between the water level and the top of the dam. Spillways help maintain adequate freeboard by diverting excess water and preventing it from rising to dangerous levels.
#### Types of Spillways:
- **Primary Spillways**: These are the main structures for regular water discharge and are designed to handle typical operational water levels.
- **Emergency Spillways**: In cases of extreme weather or unexpected water inflows, emergency spillways are activated to prevent overtopping, often with higher discharge capacities than the primary spillways.
### 2. **Drainage Systems** Drainage systems are integral to controlling water flow within a TSF, reducing water pressure on the dam, managing seepage, and ensuring the tailings remain stable. Proper drainage helps to reduce pore water pressure in the tailings, which can contribute to stability problems like liquefaction if left unchecked.
#### Types of Drainage Systems:
- **Underdrains**: These are drainage layers beneath the tailings deposit that collect and channel water out of the impoundment, lowering the water table within the tailings mass and reducing the potential for liquefaction or instability.
- **Toe Drains**: Located at the base (toe) of the embankment, toe drains help capture seepage water before it can weaken the dam or cause erosion.
- **Piped Drainage Systems**: Pipes or culverts may be installed to direct seepage or surface water away from the facility and safely discharge it into surrounding drainage systems.
- **French Drains**: These are gravel-filled trenches with a perforated pipe that channels water away from the dam, often used to manage surface water infiltration or groundwater.
### 3. **Seepage Control** Seepage through the dam or embankment can lead to internal erosion (piping), increased pore water pressure, and a higher risk of dam failure. Effective seepage control is necessary to maintain the long-term stability of the TSF.
#### Seepage Control Measures:
- **Geomembranes and Liners**: Synthetic or clay liners are often used to prevent seepage through the tailings pond floor and dam, especially in facilities with toxic or hazardous tailings.
- **Seepage Cutoff Walls**: Impermeable barriers, such as slurry walls or cutoff trenches, are installed in the foundation of the dam to reduce the flow of water through the embankment.
- **Grout Curtains**: Injection of grout into the foundation and embankment creates an impermeable barrier to reduce seepage through porous materials.
### 4. **Importance of Proper Drainage in Tailings Management**
- **Preventing Overtopping**: During heavy rain or excessive water inflow, spillways and drainage systems prevent overtopping, which is a leading cause of tailings dam failures. Overtopping can result in the erosion of the dam crest and rapid failure.
- **Managing Seepage and Pore Pressure**: Controlling seepage is crucial for maintaining the stability of the dam. If water seeps through the embankment or beneath the tailings, it can increase pore water pressure, reducing the strength of the material and potentially leading to dam failure.
- **Erosion Control**: Drainage systems help manage surface water runoff, preventing the erosion of the dam's surface or toe, which could otherwise lead to structural instability.
- **Liquefaction Prevention**: By maintaining low pore water pressures within the tailings mass, drainage systems reduce the risk of liquefaction, a phenomenon where saturated tailings lose their strength and behave like a liquid under stress, leading to dam collapse.
### 5. **Monitoring and Maintenance of Drainage Systems**
- **Regular Inspections**: Both spillways and drainage systems require regular inspections to ensure they are functioning correctly. Blockages, sediment build-up, or structural damage to the spillways or drains can compromise their effectiveness.
- **Monitoring Equipment**: Modern TSFs may use sensors and real-time monitoring equipment to track water levels, seepage rates, and pore pressure. This data can be used to identify potential issues before they become critical.
- **Sediment Removal**: Over time, drainage systems may accumulate sediment or debris, which can reduce their efficiency. Regular maintenance to remove this material is essential for ensuring the continued functionality of the system.
### Conclusion
**Spillways and drainage systems** are critical to the safe operation and stability of tailings storage facilities. These systems manage water levels, prevent overtopping, control seepage, and reduce pore water pressure, all of which are essential to maintaining the integrity of the tailings dam. Proper design, implementation, and maintenance of these systems are crucial to preventing catastrophic failures, protecting the environment, and ensuring the long-term stability of the TSF.
Liners
### 1. **Purpose of Liners**
- **Prevent Groundwater Contamination**: The primary function of a liner is to create an impermeable barrier between the tailings and the surrounding soil or groundwater. Without a liner, contaminants in the tailings could leach into groundwater systems, potentially causing long-term environmental damage and health hazards.
- **Control Seepage**: Liners help control the movement of water through the base and sides of a TSF, reducing the risk of seepage and ensuring that the tailings remain contained within the facility.
- **Facilitate Water Management**: Liners allow for more efficient water management within the TSF by preventing water loss into the ground. This is particularly important for operations that recycle water from the tailings pond back into the processing plant.
### 2. **Types of Liners**
- **Clay Liners**: Clay liners are natural, compacted layers of clay that are used to form a barrier due to their low permeability. Bentonite clay, in particular, is commonly used because of its ability to expand and form an impermeable layer when in contact with water.
- **Advantages**: Cost-effective, widely available, and can form a natural barrier with minimal environmental impact.
- **Disadvantages**: Clay liners can be prone to cracking in dry climates, and their effectiveness may be reduced if exposed to certain chemicals found in tailings, such as acids.
- **Synthetic Liners**: These are man-made materials, usually constructed from polymers, that are highly resistant to chemicals and offer very low permeability.
- **Geomembranes**: Geomembranes are synthetic liners made from materials like high-density polyethylene (HDPE), polyvinyl chloride (PVC), or ethylene propylene diene monomer (EPDM). They are typically used in conjunction with other materials (e.g., clay) to create a composite liner system.
- **Advantages**: Extremely low permeability, chemical resistance, and durability.
- **Disadvantages**: Higher cost compared to natural liners and require careful installation to avoid punctures or defects.
- **Composite Liners**: A combination of both clay and synthetic materials, where a synthetic geomembrane is placed over a compacted clay layer. This offers the benefits of both materials—enhanced impermeability from the synthetic layer and additional structural support from the clay.
- **Advantages**: Provides better protection against chemical attack and seepage, offering a more robust solution.
- **Disadvantages**: Higher installation and maintenance costs, as well as the need for more careful design and quality control during construction.
### 3. **Liner Design and Installation**
- **Site Preparation**: Before the liner is installed, the site needs to be carefully graded and compacted to ensure that the liner will be installed on a smooth surface. Any sharp objects, stones, or debris that could puncture the liner must be removed.
- **Liner Placement**: Synthetic liners (e.g., geomembranes) are laid out in sheets, which are then welded together to create a continuous impermeable barrier. Careful attention is required to ensure that seams are properly sealed to prevent leaks.
- **Leak Detection Systems**: Some TSFs install leak detection systems between multiple layers of liner material. These systems can include drainage layers or monitoring wells to detect and capture any liquid that manages to pass through the liner, allowing for early detection and repair of leaks.
- **Covering Liners**: After installation, liners are often covered with protective materials, such as gravel or geotextiles, to prevent physical damage during the filling of the TSF. This helps prevent punctures from heavy equipment or coarse tailings particles.
### 4. **Challenges and Considerations**
- **Chemical Resistance**: Tailings often contain highly reactive chemicals, such as sulfuric acid or cyanide, which can degrade certain types of liner materials over time. Selecting the appropriate liner material with high chemical resistance is crucial for ensuring the long-term integrity of the system.
- **Temperature Effects**: In hot climates, synthetic liners may become more pliable and susceptible to stretching or damage, while in cold climates, they can become brittle. Proper selection of liner materials and designs that account for temperature fluctuations is important.
- **Permeability and Longevity**: Liners are designed to have extremely low permeability, but no material is entirely impermeable. Over time, even the best liners may develop small leaks due to stress, physical damage, or chemical degradation. This necessitates careful monitoring and maintenance over the life of the TSF.
### 5. **Environmental and Regulatory Considerations**
- **Regulatory Standards**: Many countries have strict regulations governing the use of liners in TSFs to prevent groundwater contamination. These regulations often dictate the type of liner that must be used, the required thickness, and the monitoring protocols for seepage.
- **Environmental Impact**: While liners protect the surrounding environment from contamination, their installation can have environmental impacts, such as disturbance to local ecosystems or water resources. Selecting a liner material that minimizes environmental impact while maximizing performance is key.
- **Post-Closure Management**: After a TSF has been decommissioned, the liner continues to play a crucial role in preventing long-term contamination. Even after the facility is closed, monitoring and maintenance of the liner are required to ensure its ongoing effectiveness.
### 6. **Monitoring and Maintenance**
- **Regular Inspections**: Liners must be inspected regularly for signs of damage or wear. Any defects, such as cracks, punctures, or chemical degradation, should be repaired promptly to prevent leaks.
- **Leak Detection**: Many modern TSFs include leak detection systems beneath the liner, which can alert operators to any breaches in the liner’s integrity. These systems may use sensors or monitoring wells to detect the presence of leachate.
- **Maintenance**: Maintenance activities include patching any damaged sections of the liner, ensuring that seams remain intact, and managing erosion or settlement issues that could compromise the liner's effectiveness.
### Conclusion Liners play a critical role in protecting groundwater and soil from contamination in **tailings storage facilities** by providing an impermeable barrier between the tailings and the environment. The selection of liner material—whether clay, synthetic, or composite—depends on factors like the chemical composition of the tailings, site conditions, and regulatory requirements. While liners significantly reduce environmental risks, proper design, installation, monitoring, and maintenance are essential to ensure long-term effectiveness.
Decant Systems
### Key Functions of a Decant System:
1. **Water Removal**: The primary function of the decant system is to remove excess water from the tailings pond, allowing the solid tailings to settle and dewater.
2. **Maintaining Freeboard**: By managing water levels, the decant system helps maintain the **freeboard**, which is the distance between the water level and the top of the dam or embankment. Adequate freeboard is essential for preventing overtopping, which can lead to dam failure.
3. **Preventing Pore Pressure Buildup**: Removing excess water helps prevent the buildup of pore water pressure within the tailings. High pore water pressure can lead to instability, increased risk of liquefaction, and a potential failure of the embankment or dam.
4. **Water Reuse**: Decanted water can often be recycled back into the mine’s process water system, reducing the demand for fresh water and contributing to sustainable water management practices.
### Types of Decant Systems:
1. **Surface Decant Systems**:
- **Centrally Located Decant Towers**: These are vertical structures placed within the tailings pond to collect and remove water from the surface. Water is channeled through pipes or drains to a lower elevation, where it can be treated or reused.
- **Advantages**: Efficient at removing water from the surface, and can be used in combination with pumps for active water management.
- **Challenges**: Regular maintenance is required to prevent blockage from tailings solids, and it can be less effective as the tailings pond fills.
- **Peripheral Decant Systems**: Located at the edge of the tailings pond, these systems collect water that accumulates near the perimeter of the TSF.
- **Advantages**: Easy access for maintenance and monitoring, and useful for managing water that flows toward the embankment.
- **Challenges**: May require more complex piping and drainage systems to effectively channel water away from the pond.
2. **Subsurface Decant Systems**:
- **Underdrain Decant Systems**: These are drainage systems installed beneath the tailings to collect seepage water and channel it to collection points. The water is then removed from the facility via pumping systems.
- **Advantages**: Efficient at removing pore water and reducing pore pressure within the tailings mass, which is critical for stability.
- **Challenges**: More complex to design and install, and can be prone to clogging over time as fine particles from the tailings block drainage paths.
3. **Floating Decant Systems**:
- These systems are mounted on floating platforms, which adjust to changes in water levels within the tailings pond. A floating pipe or barge collects water from the surface and channels it to a discharge point.
- **Advantages**: Flexible in managing varying water levels as tailings accumulate and water levels fluctuate.
- **Challenges**: Regular maintenance is needed to ensure the system remains functional and does not become obstructed by debris or tailings.
### Components of a Decant System:
1. **Decant Tower**: A vertical structure, often perforated, that allows water to enter while blocking solid particles. The water is then channeled through the system to be discharged or recycled.
2. **Pipes and Drains**: These are the conduits that transport water from the decant tower or drainage system to a treatment facility or storage area. Pipes need to be large enough to handle water flow during high inflow periods, such as storms.
3. **Siphons**: In some decant systems, siphons are used to create a controlled flow of water out of the TSF without the need for pumps. These are particularly useful in gravity-based systems.
4. **Pumps**: For active decant systems, pumps may be required to remove water from the pond, especially if the facility relies on mechanical means to maintain water levels.
### Importance of Decant Systems for Stability:
1. **Reducing Water Content**: The decant system plays a crucial role in reducing the amount of free water in the TSF. Excess water in tailings can increase the likelihood of instability, especially in cases where the tailings have low permeability or high fine content (clays, silts). High water content can also lead to liquefaction, where saturated tailings lose their strength and behave like a liquid under stress, potentially leading to catastrophic dam failure.
2. **Preventing Overtopping**: By managing water levels within the tailings pond, decant systems help prevent overtopping of the dam. Overtopping is one of the most common causes of tailings dam failures, as it can lead to rapid erosion of the dam structure.
3. **Controlling Seepage**: Effective water removal helps control seepage through the dam or embankment, reducing the risk of internal erosion (piping) and ensuring the long-term stability of the facility. Proper decant systems reduce hydraulic pressure against the dam, minimizing the risk of seepage-related failures.
### Monitoring and Maintenance:
- **Regular Inspections**: Decant systems require ongoing inspection and maintenance to ensure that they are functioning as designed. Regular checks should be carried out to detect blockages, leaks, or structural damage to decant towers, pipes, and other components.
- **Sediment Management**: Over time, decant systems can become clogged with sediment, especially in systems handling fine-grained tailings. Routine cleaning is essential to maintain the system's capacity to remove water.
- **Flow Monitoring**: Monitoring water flow rates through the decant system can provide early warning signs of potential issues, such as clogging or a drop in system performance. Flow meters and other sensors are often used to track water levels and flow rates in real-time.
### Conclusion:
The **decant system** is a vital component of tailings storage facilities, ensuring effective water management by removing excess water from the tailings, controlling water levels, and maintaining the stability of the facility. Properly designed and maintained decant systems help prevent catastrophic failures by reducing pore pressure, preventing overtopping, and enabling efficient water reuse in mining operations. Regular monitoring and maintenance are essential to ensure the long-term performance and safety of the TSF.
Upstream Dams
### Key Features of Upstream Dams:
1. **Construction Method**:
- **Initial Starter Dam**: The process begins with the construction of an initial low dam or **starter dam**, typically made from materials such as earth, rockfill, or compacted tailings. This starter dam creates the initial containment for the tailings.
- **Subsequent Raises**: As the tailings accumulate, the dam is raised by depositing tailings in the upstream direction (toward the storage area). Each new layer of tailings is used as a foundation for the next raise, which reduces the need for external construction materials.
- **Phased Construction**: The dam is built in stages, with each new raise added as tailings are deposited. This process is known as “phased construction” and continues until the dam reaches its designed height.
2. **Cost Efficiency**:
- **Use of Tailings as Construction Material**: The major advantage of upstream dams is their **cost-effectiveness**. By using the tailings themselves as part of the embankment material, mining operators reduce the need for importing construction materials, significantly lowering costs.
- **Lower Initial Investment**: Upstream dams require a relatively small initial investment to construct the starter dam, and the subsequent raises are added as part of ongoing operations, which spreads out the cost over time.
3. **Risk Factors**:
- **Seismic Vulnerability**: One of the major concerns with upstream dams is their **vulnerability to seismic activity**. Because each raise is built on top of previously deposited tailings, which may still contain a high water content, the structure can become unstable during an earthquake, leading to **liquefaction**. Liquefaction occurs when saturated, loose tailings lose strength and behave like a liquid, potentially causing the dam to fail.
- **Water Management Challenges**: Proper water management is critical for upstream dams. Excess water in the tailings can increase the risk of dam failure by reducing the shear strength of the tailings and increasing pore water pressure. Effective drainage systems and decant systems are needed to keep water levels under control.
- **Rainfall and Flooding**: In areas with **heavy rainfall**, upstream dams are at a higher risk of overtopping or failure due to excessive water accumulation in the tailings. Poor drainage can lead to a buildup of water within the tailings, further weakening the structure and potentially leading to catastrophic failure.
- **Foundation Strength**: Since each raise is constructed on top of previously deposited tailings, the foundation strength of an upstream dam depends heavily on the consolidation and stability of the tailings below. If the underlying tailings are not properly dewatered or compacted, the dam can become unstable.
### Advantages of Upstream Dams:
1. **Cost-Effective**: Upstream dams are the most cost-effective option for tailings containment because they use tailings material for construction. This minimizes the need for external fill material, reducing construction costs.
2. **Progressive Construction**: The dam is built incrementally, in phases, allowing mining operations to spread the costs over the life of the mine, which is beneficial for cash flow management.
3. **Low Initial Footprint**: Upstream dams require a smaller initial footprint compared to other types of tailings dams, making them suitable for operations that want to start with a smaller area and expand over time.
### Disadvantages and Risks of Upstream Dams:
1. **Stability Concerns**: The stability of upstream dams can be compromised by poor water management, seismic activity, or insufficient consolidation of tailings. Failures in these dams can result in catastrophic events, as has been seen in several high-profile tailings dam failures globally.
2. **Vulnerability to Liquefaction**: Upstream dams are particularly vulnerable to **liquefaction** during earthquakes, where saturated tailings lose strength and the dam structure can collapse.
3. **Water Management Challenges**: Managing water content is crucial, as excessive water in the tailings increases the risk of liquefaction and instability. Proper decant systems and drainage are essential to maintain the integrity of the dam.
4. **Regulatory Scrutiny**: Due to the risks associated with upstream dams, especially after several well-publicized failures (e.g., the Brumadinho disaster in Brazil, 2019), many countries are tightening regulations around their use. In some jurisdictions, upstream dam construction is being phased out or banned altogether.
### Alternatives to Upstream Dams:
1. **Downstream Dams**: In downstream dams, the embankment is raised in the direction away from the tailings, meaning that each raise is built on solid ground rather than on tailings. This method is more stable but also more expensive, as it requires more construction materials.
2. **Centerline Dams**: In this hybrid design, the dam crest is raised vertically, and each raise is built partly on top of tailings and partly on the previous embankment. This offers more stability than upstream dams but at a lower cost than downstream designs.
### Case Studies of Upstream Dam Failures:
1. **Brumadinho Dam Disaster (Brazil, 2019)**: One of the most devastating examples of an upstream dam failure occurred in Brumadinho, where an upstream tailings dam owned by Vale collapsed, causing massive loss of life and environmental damage. This event highlighted the risks of liquefaction in upstream dams, especially in regions with high rainfall and seismic activity.
2. **Mount Polley Mine Disaster (Canada, 2014)**: Although not an upstream dam failure, the Mount Polley tailings breach raised concerns about tailings dam management worldwide and led to heightened scrutiny of upstream designs due to their inherent instability.
### Best Practices for Upstream Dams:
1. **Rigorous Geotechnical Monitoring**: Continuous monitoring of tailings consolidation, pore water pressure, and embankment stability is essential to detect any early warning signs of instability. Geotechnical instrumentation, including piezometers and inclinometers, can provide real-time data on dam conditions.
2. **Effective Water Management**: Ensuring that excess water is properly drained and that the decant systems function efficiently is key to maintaining stability. This includes preventing water from accumulating in the tailings and reducing the risk of liquefaction.
3. **Seismic Considerations**: In regions prone to earthquakes, upstream dams require more stringent design criteria to mitigate the risks of liquefaction. Some regions have implemented regulations requiring more robust dam designs or prohibiting upstream dams altogether in seismically active areas.
4. **Proper Tailings Deposition**: The method of tailings deposition can influence the stability of the upstream dam. Controlling the deposition of fine versus coarse material, ensuring even distribution, and managing the moisture content of the tailings can improve the structural integrity of the dam.
### Conclusion:
**Upstream dams** offer a cost-effective solution for tailings management, but they come with significant risks, particularly in regions susceptible to seismic activity and heavy rainfall. Proper water management, geotechnical monitoring, and thoughtful design are critical to ensuring the safety and stability of these structures. Given the recent history of upstream dam failures, this design is under increasing scrutiny, with many operators opting for more stable alternatives despite the higher cost.
Downstream dams
### Key Features of Downstream Dams:
1. **Construction Method**:
- **Initial Starter Dam**: Similar to upstream dams, downstream dams begin with a starter dam, typically built using earth, rockfill, or other local materials.
- **Subsequent Raises**: As tailings are deposited, the dam is raised by adding new layers of material **away from** the tailings pond (i.e., on the downstream side). This means each raise is constructed on a stable, solid foundation rather than on previously deposited tailings.
- **Phased Construction**: The dam is constructed in phases, progressively raised as the tailings storage needs increase over the life of the mine.
2. **Increased Stability**:
- **Solid Foundations**: Unlike upstream dams, where each raise is constructed on top of previously deposited tailings, downstream dams are built on a more stable base of compacted earth or rock. This makes them less prone to instability and failure.
- **Greater Resistance to Liquefaction**: Because downstream dams are constructed on solid material rather than soft tailings, they are less susceptible to **liquefaction**, which occurs when saturated, loose material behaves like a liquid during seismic activity.
3. **Cost Considerations**:
- **Higher Construction Costs**: Downstream dams require more construction material, such as earth, rock, or fill, to raise the dam crest. Each raise involves expanding the base of the dam, increasing the footprint and requiring more resources. This makes downstream dams more expensive to construct compared to upstream designs.
- **Longer Construction Time**: Due to the need for more materials and a larger footprint, downstream dams typically take longer to construct. This can delay operations or increase the time needed to expand the TSF capacity.
4. **Water Management**:
- **Better Water Control**: Downstream dams allow for better water management, as the structure is typically more stable and less vulnerable to excessive water accumulation. With proper drainage and decant systems, water levels can be managed more effectively, reducing the risk of dam failure.
- **Higher Freeboard**: Downstream dams are often designed with a higher freeboard (the distance between the water level and the top of the dam), further enhancing their ability to handle excess water and prevent overtopping.
### Advantages of Downstream Dams:
1. **Enhanced Stability**: The primary advantage of downstream dams is their greater stability, especially in comparison to upstream designs. By building each raise on a solid foundation, downstream dams are more resilient to seismic activity, heavy rainfall, and other environmental factors.
2. **Lower Risk of Liquefaction**: Since downstream dams are constructed on compacted material rather than loose tailings, they are much less prone to liquefaction, a major risk factor in upstream dam failures.
3. **Better Water Management**: Downstream dams typically offer better control over water levels and seepage, thanks to their larger footprint and ability to incorporate more robust drainage systems. This reduces the risk of excessive pore water pressure and improves overall dam safety.
4. **Regulatory Preference**: Many regulatory bodies favor downstream dams over upstream designs due to their improved safety profile. In some countries, downstream dams are required in areas with high environmental risk, or where seismic activity is a concern.
### Disadvantages of Downstream Dams:
1. **Higher Costs**: The primary drawback of downstream dams is the higher cost of construction. More materials are needed for each raise, and the dam footprint must be expanded as the dam height increases. This makes downstream dams more expensive than upstream designs, both in terms of materials and land use.
2. **Larger Footprint**: Downstream dams require a larger footprint because each raise involves extending the base of the dam. This can result in more land being used, which may impact the surrounding environment or require the relocation of nearby communities.
3. **Longer Construction Time**: Downstream dams take longer to construct compared to upstream dams, due to the need for more extensive earthworks and material handling. ### Downstream Dam vs. Upstream Dam:
- **Stability**: Downstream dams are significantly more stable than upstream dams. They are built on a solid foundation, making them less vulnerable to failures due to liquefaction or poor consolidation of tailings.
- **Cost**: Downstream dams are more expensive to construct because they require more construction materials and a larger footprint. In contrast, upstream dams are more cost-effective but come with higher risks.
- **Seismic Resistance**: Downstream dams are better suited to regions with seismic activity, as they are more resistant to the effects of earthquakes. Upstream dams are vulnerable to liquefaction in seismic regions.
- **Water Management**: Downstream dams offer better control over water levels and seepage compared to upstream dams, reducing the likelihood of overtopping or dam failure.
### Best Practices for Downstream Dams:
1. **Rigorous Geotechnical Design**: The stability of a downstream dam depends on the quality of its foundation and embankment materials. Geotechnical assessments should be conducted to ensure that the dam is constructed on solid ground and that the materials used for the raises are appropriately compacted.
2. **Effective Water Management Systems**: Proper drainage and decant systems are essential for managing water within the TSF. These systems help control pore water pressure and prevent water from accumulating in the tailings, which could compromise the stability of the dam.
3. **Regular Monitoring and Maintenance**: Downstream dams should be equipped with monitoring systems, such as piezometers and inclinometers, to track water levels, pore pressure, and embankment movement. Regular maintenance and inspections are critical for identifying and addressing any potential issues early.
4. **Seismic Design Considerations**: In seismically active regions, downstream dams should be designed to withstand earthquake forces. This may include reinforcing the embankment with rockfill or other materials that improve its resistance to seismic loading.
### Case Study: Downstream Dam Design
- **Chuquicamata Mine, Chile**: The tailings dam at the Chuquicamata copper mine in Chile is one of the largest downstream dams in the world. The dam was designed to withstand both seismic forces and heavy rainfall, making it a model for safe tailings storage in a high-risk region. The stability of the dam is enhanced by a large downstream footprint, which allows for better water management and seismic resistance.
### Conclusion:
**Downstream dams** offer a more stable and secure method for tailings storage, particularly in areas with higher environmental risks, such as regions prone to seismic activity or heavy rainfall. Although more expensive and resource-intensive to construct than upstream dams, downstream dams provide enhanced safety, better water management, and greater resistance to liquefaction. As a result, many mining operations and regulatory bodies are increasingly favoring downstream dam designs for long-term tailings management.
Centreline Dams
### Key Features of Centerline Dams:
1. **Construction Method**:
- **Starter Dam**: Similar to upstream and downstream methods, the process starts with a **starter dam** built from earth, rockfill, or other local materials. This initial structure creates the containment area for tailings.
- **Subsequent Raises**: As tailings accumulate, the dam is raised **vertically**, meaning each new layer is built partially on the previous embankment (like downstream dams) and partially on tailings (like upstream dams). This hybrid approach means the centerline is maintained over the life of the dam.
- **Phased Construction**: Like other dam designs, centerline dams are built in phases, allowing the dam to grow progressively as more tailings are deposited.
2. **Moderate Stability**:
- **Increased Stability Compared to Upstream Dams**: By placing part of each raise on the previous embankment and only partially on tailings, centerline dams offer **greater stability** than upstream designs. The embankment’s weight is better supported by stable material, reducing the risks associated with building on soft tailings.
- **Less Material Required than Downstream Dams**: Centerline dams require less construction material than downstream dams, as they don’t expand the dam’s footprint with each raise. This makes them a more cost-effective option, although less stable than downstream designs.
3. **Cost and Construction Considerations**:
- **Balanced Costs**: Centerline dams are generally more expensive than upstream dams but cheaper than downstream dams. By using some of the tailings as a foundation, operators save on construction material compared to downstream dams, which require entirely new material for each raise.
- **Footprint Management**: Since the dam is raised vertically, the footprint of a centerline dam remains relatively constant. This makes it a practical choice when land availability is limited or when minimizing the environmental impact is a priority.
4. **Water Management**:
- **Effective Drainage**: As with downstream dams, centerline dams often include robust drainage systems to manage water levels within the dam and prevent water accumulation, which could compromise stability. These systems help reduce pore water pressure within the tailings, improving overall safety.
- **Seepage Control**: Because part of the dam is raised on tailings, seepage can be an issue if not properly managed. Liners and other drainage mechanisms are critical for preventing seepage from weakening the dam.
### Advantages of Centerline Dams:
1. **Improved Stability Over Upstream Dams**: Centerline dams are more stable than upstream dams because each raise is partially supported by the previous embankment rather than fully relying on deposited tailings. This reduces the risks of liquefaction or collapse, especially in areas with seismic activity.
2. **Cost-Effective Compared to Downstream Dams**: While not as stable as downstream dams, centerline dams require less construction material and a smaller footprint, which makes them more affordable. This provides a good balance between safety and cost.
3. **Moderate Risk Profile**: The combination of upstream and downstream techniques means that centerline dams have a **lower risk** of failure than upstream dams but a **higher risk** than downstream dams. This makes them a middle-ground option for mining operations that need to balance economic and safety considerations.
4. **Efficient Use of Land**: Centerline dams do not expand their footprint with each raise, which is advantageous in environments where space is limited or where there are concerns about encroaching on nearby land or ecosystems.
### Disadvantages of Centerline Dams:
1. **Less Stable Than Downstream Dams**: Although centerline dams are more stable than upstream designs, they are still **less stable** than downstream dams because part of each raise is built on tailings, which can be less consolidated and more prone to liquefaction in the event of seismic activity or excessive water accumulation.
2. **Potential for Seepage**: Since part of the dam is built on tailings, there is a higher risk of seepage compared to downstream dams. Effective seepage control systems, such as liners or drainage layers, are required to prevent water from compromising the dam's integrity.
3. **Ongoing Maintenance Required**: Like other tailings dams, centerline dams require regular monitoring and maintenance to ensure their stability, especially as tailings continue to be deposited and the dam height increases.
### Best Practices for Centerline Dams:
1. **Geotechnical Monitoring**: Centerline dams, like all tailings dams, require continuous monitoring of geotechnical conditions, such as pore water pressure, embankment movement, and tailings consolidation. Instruments such as piezometers and inclinometers should be used to detect any early signs of instability.
2. **Water Management**: Proper water management is essential for centerline dams. Drainage systems must be designed to control water levels within the tailings and prevent water buildup, which could lead to liquefaction or increased pore pressure within the dam.
3. **Seismic Design Considerations**: In seismically active areas, centerline dams should be designed with additional safety margins to account for the risks of liquefaction and embankment instability during earthquakes.
4. **Phased Construction Planning**: Each raise should be carefully planned and executed to ensure that the dam remains stable as its height increases. The deposition of tailings should be controlled to avoid uneven loading or excessive water content in the tailings.
### Case Study: Centerline Dam Design
- **Los Bronces Mine (Chile)**: The tailings dam at the Los Bronces copper mine utilizes a centerline design to manage tailings storage. This site balances the need for a stable dam in a seismically active region with the economic considerations of managing tailings for a large-scale operation. The use of robust drainage systems and careful phased construction has helped ensure the dam's safety and performance.
### Centerline Dam vs. Upstream and Downstream Dams:
- **Stability**: Centerline dams offer greater stability than upstream dams but are less stable than downstream dams.
- **Cost**: Centerline dams are more cost-effective than downstream dams but are more expensive than upstream dams.
- **Footprint**: Unlike downstream dams, which expand their footprint with each raise, centerline dams maintain a relatively constant footprint, similar to upstream dams.
### Conclusion:
**Centerline dams** provide a middle ground between upstream and downstream tailings dam designs, offering a balance between cost and stability. They are more stable than upstream dams because each raise is partially supported by the previous embankment, making them less prone to failure. However, they are less stable than downstream dams, which are entirely built on solid material. Centerline dams are a good option for mining operations that need to balance economic considerations with safety requirements, particularly in regions with moderate environmental risks. Regular monitoring, effective water management, and careful phased construction are essential to ensuring the long-term stability of centerline dams.
Dry Stack Tailings
### Overview of Dry Stack Tailings (DST)
1. **Dewatering Process**:
- **Filtration or Thickening**: Tailings are dewatered using methods such as filtration or thickening to remove water, resulting in a solid mass that is more manageable. Filtration processes use pressure to force water out of the tailings, while thickening relies on gravity to settle solids and reduce water content.
- **Moisture Content**: The resulting tailings typically have a low moisture content (often less than 15%), allowing them to be stacked in a stable form, unlike traditional wet tailings that require containment in ponds.
2. **Stacking and Placement**:
- The dewatered tailings are transported to a designated area where they can be stacked in layers. The solid nature of the tailings allows for steep stacking angles, increasing storage efficiency.
- Stacked tailings can be designed to resemble a series of terraces or benches, promoting natural drainage and stability.
### Benefits of Dry Stack Tailings
1. **Reduced Risk of Dam Failure**:
- One of the most significant advantages of DST is the substantial reduction in the risk of tailings dam failures. Since there is no water in the stored material, the potential for **liquefaction** or structural instability is minimized.
- This method eliminates the need for large, water-filled tailings ponds, which have been associated with catastrophic failures in the past.
2. **Lower Environmental Impact**:
- Dry stacking minimizes the environmental footprint of tailings management. Without the need for a pond, there is a reduced risk of water contamination from tailings seepage.
- It also allows for better land reclamation practices, as the stacked tailings can be capped and vegetated more easily than wet tailings ponds.
3. **Land Use Efficiency**:
- DST requires less surface area compared to traditional tailings storage methods. The ability to stack tailings at steep angles allows for more efficient use of land, particularly in areas where space is limited.
4. **Recycling Water**:
- The dewatering process can allow for the recovery of water that can be reused in mining operations. This contributes to more sustainable water management practices and reduces the overall demand for fresh water.
5. **Improved Aesthetics**:
- The appearance of dry stack tailings is generally more visually acceptable than large, open tailings ponds. This can help improve community relations and acceptance of mining operations.
### Challenges of Dry Stack Tailings
1. **Initial Capital Costs**:
- The technology required for effective dewatering and handling of dry stack tailings can involve significant initial capital investment. Equipment such as filters, thickening systems, and transportation systems can be expensive to install and operate.
2. **Operational Complexity**:
- Managing dry stack tailings requires specialized knowledge and operational expertise. The dewatering processes need to be closely monitored and optimized to ensure consistent tailings quality and moisture content.
3. **Geotechnical Considerations**:
- The stability of dry-stacked tailings must be thoroughly evaluated, especially concerning the slope and angle of the stacked material. If not properly designed, there is a risk of **slope failures** or erosion.
4. **Tailings Composition**:
- The composition of tailings can affect the success of dry stacking. Tailings with high clay content may not dewater efficiently, while others may have insufficient strength when dry. Understanding the mineralogy and behavior of the tailings is crucial for effective implementation.
5. **Long-term Stability**:
- Over time, the stacked tailings may experience settlement or consolidation, which can affect stability. Proper monitoring and maintenance are essential to manage these changes effectively.
### Best Practices for Dry Stack Tailings
1. **Comprehensive Geotechnical Studies**:
- Conduct thorough geotechnical assessments to understand the physical and chemical properties of the tailings, as well as the suitability of the site for dry stacking.
2. **Optimal Dewatering Techniques**:
- Use efficient dewatering technologies that can handle the specific characteristics of the tailings. Continuous optimization of these processes is essential for maintaining consistent moisture levels.
3. **Design for Stability**:
- Implement designs that ensure the stability of stacked tailings, including considerations for slope angles, drainage, and erosion control measures. Regular geotechnical monitoring should be conducted to assess the structural integrity over time.
4. **Water Management Systems**:
- Integrate effective water management systems that allow for the recovery and reuse of water during the dewatering process. This can enhance overall sustainability and reduce environmental impact.
5. **Community Engagement**:
- Engage with local communities and stakeholders to inform them about the benefits and safety measures associated with dry stack tailings. Transparency in operations can help build trust and improve public perception.
### Conclusion
**Dry stack tailings** represent a progressive approach to tailings management that significantly reduces the risks associated with traditional wet tailings ponds. By dewatering tailings to create a solid mass that can be stacked, mining operations can enhance safety, reduce environmental impacts, and improve land use efficiency. However, successful implementation requires careful consideration of geotechnical factors, initial capital investment, and ongoing management practices. With proper planning and execution, dry stack tailings can be an effective solution for sustainable mining operations.
Tailings in Abondoned Pits
### Overview of In-Pit Tailings Disposal
1. **Concept**:
- In-pit tailings disposal involves transporting and placing tailings directly into the voids of previously mined open pits. This method utilizes existing mining infrastructure and can significantly reduce the need for additional land to store tailings.
- The tailings are typically dewatered before placement to minimize water content, making the material more stable and easier to handle.
2. **Process**:
- **Site Preparation**: Before disposal, the pit is assessed for its suitability, including its stability and the potential for acid rock drainage (ARD). Any necessary modifications or improvements to the pit walls or floors may be made to facilitate tailings placement.
- **Dewatering**: Depending on the method of disposal, tailings may be dewatered to reduce their water content before being transported to the pit.
- **Transport and Placement**: Tailings are then transported to the pit using trucks, conveyor belts, or pipelines, depending on the distance and logistics. The material is layered and compacted within the pit to promote stability.
### Benefits of In-Pit Tailings Disposal
1. **Reduced Surface Footprint**:
- In-pit disposal minimizes the need for additional tailings storage facilities on the surface, preserving land for other uses, including reclamation or development. This is particularly valuable in areas where land is scarce or sensitive.
2. **Natural Containment**:
- Utilizing the existing pit walls and floor for tailings containment reduces the risk of tailings seepage and contamination of surrounding environments. The natural topography of the pit can help contain any potential movement of tailings.
3. **Enhanced Safety**:
- In-pit disposal can mitigate the risks associated with tailings dam failures by eliminating the need for external tailings storage facilities. This reduces the potential for catastrophic failures that can occur with conventional tailings management practices.
4. **Cost-Effectiveness**:
- Using abandoned pits for tailings disposal can reduce costs associated with constructing new tailings storage facilities. It also minimizes the transportation costs related to moving tailings to distant storage sites.
5. **Potential for Reclamation**:
- Once the tailings have been deposited and allowed to consolidate, the area can be reclaimed more effectively. Depending on the nature of the tailings, this may include vegetation and habitat restoration, further enhancing the environmental sustainability of mining operations.
### Challenges of In-Pit Tailings Disposal
1. **Geotechnical Risks**:
- The stability of the pit walls must be carefully assessed, as placing tailings can introduce new stress factors. The risk of wall failure or erosion must be considered, and continuous monitoring may be necessary to ensure safety.
2. **Acid Rock Drainage (ARD)**:
- Abandoned pits may contain minerals that produce acid when exposed to air and water (e.g., sulfide minerals). If tailings are deposited in such environments, they can exacerbate ARD issues, leading to water quality concerns. Thorough geochemical characterization is essential before disposal.
3. **Water Management**:
- Managing water within the pit is critical, particularly if there is groundwater ingress or rainfall runoff. Effective drainage and seepage control measures must be implemented to prevent water accumulation and maintain the stability of the tailings.
4. **Long-term Monitoring**:
- In-pit disposal may require long-term monitoring and maintenance to assess the stability of the tailings and the potential for contamination. This includes ongoing assessments of water quality and the integrity of the pit structure.
5. **Public Perception**:
- Engaging with local communities about in-pit disposal can be challenging. Public concerns regarding safety, environmental impacts, and the long-term sustainability of the method must be addressed transparently.
### Best Practices for In-Pit Tailings Disposal
1. **Comprehensive Site Assessment**:
- Conduct thorough geological and geotechnical investigations of the pit to assess its suitability for tailings disposal. This should include analyzing the strength of the pit walls, the potential for ARD, and the characteristics of the tailings material.
2. **Dewatering and Management**:
- Implement effective dewatering practices to ensure the tailings have the appropriate moisture content before disposal. Continuous water management systems should be in place to control groundwater and surface water interactions.
3. **Stability Monitoring**:
- Use monitoring systems (e.g., inclinometers, piezometers) to assess the stability of the pit walls and tailings over time. Regular inspections and maintenance are necessary to identify and mitigate potential issues early.
4. **Post-Closure Planning**:
- Develop a comprehensive post-closure plan that addresses reclamation and restoration goals for the in-pit tailings site. This should include vegetation plans and strategies to manage potential environmental impacts in the long term.
5. **Community Engagement**:
- Engage with local stakeholders and communities to provide information about in-pit disposal methods, benefits, and safety measures. Building trust through transparent communication can help alleviate concerns and promote acceptance of the disposal method.
### Conclusion
**In-pit tailings disposal** offers a practical and sustainable solution for managing mine tailings while minimizing environmental impacts and land use requirements. By utilizing abandoned pits, mining operations can take advantage of natural containment, reduce the risk of tailings dam failures, and potentially lower costs. However, careful consideration of geotechnical risks, water management, and community engagement is essential for the successful implementation of this method. Through comprehensive planning and best practices, in-pit tailings disposal can contribute to more responsible and sustainable mining operations.
Tailings Underwater
### Overview of Tailings Underwater
1. **Concept**:
- Underwater tailings storage involves placing tailings in a body of water, such as a flooded open pit, a reservoir, or a dedicated tailings pond designed for subaqueous storage. The water acts as a barrier, preventing air exposure and minimizing the potential for harmful chemical reactions.
2. **Process**:
- **Dewatering**: Before underwater disposal, tailings may be partially dewatered to reduce water content, though some methods may allow for wet tailings to be placed directly underwater.
- **Transport**: Tailings are transported to the underwater storage site, often using pipelines or slurry systems that can efficiently move the material to the desired location.
- **Placement**: Tailings are deposited at specific depths, typically at the bottom of the water body, allowing solids to settle while the water provides a protective layer.
### Benefits of Underwater Tailings Storage
1. **Prevention of Acid Mine Drainage (AMD)**:
- One of the primary advantages of underwater storage is the significant reduction in the risk of AMD. By submerging tailings, the exposure of sulfide minerals to air is minimized, thus preventing oxidation and the release of acidic leachate.
2. **Reduction of Environmental Impact**:
- Underwater storage helps to mitigate the potential for contamination of surrounding soil and groundwater by limiting the migration of toxic metals and minerals into the environment. The water acts as a barrier, reducing the likelihood of harmful substances reaching ecosystems.
3. **Stability of Tailings**:
- Subaqueous storage can provide better stability for tailings by preventing the risk of erosion and movement that can occur in conventional tailings storage facilities. The water provides a supportive medium that helps hold the tailings in place.
4. **Minimized Surface Footprint**:
- Storing tailings underwater can reduce the surface footprint required for tailings storage. This is particularly beneficial in environmentally sensitive areas or regions where land use is a concern.
5. **Potential for Habitat Creation**:
- Underwater tailings storage may create new aquatic habitats, promoting biodiversity in the area. Over time, the submerged tailings may support fish and other aquatic life, contributing to ecological restoration efforts.
### Challenges of Underwater Tailings Storage
1. **Geotechnical Risks**:
- The stability of underwater tailings must be carefully managed. Over time, the settling and consolidation of tailings can lead to potential stability issues. Continuous monitoring is essential to ensure that the stored material remains stable and does not pose a risk to the surrounding environment.
2. **Water Quality Management**:
- While underwater storage helps prevent AMD, there is still a need to monitor water quality for potential contaminants. The leaching of toxic metals can occur in some cases, necessitating ongoing water quality assessments.
3. **Operational Complexity**:
- The logistics of transporting and placing tailings underwater can be more complex than traditional methods. Specialized equipment and techniques may be required, increasing operational costs.
4. **Regulatory Challenges**:
- Underwater tailings storage may face regulatory hurdles, particularly regarding environmental assessments and permits. Operators must comply with environmental regulations to ensure that the storage method is safe and sustainable.
5. **Long-Term Monitoring**:
- Continuous monitoring of the underwater storage site is necessary to evaluate the stability of the tailings and the quality of the surrounding water. Long-term studies are essential to assess the environmental impact and effectiveness of the storage method.
### Best Practices for Underwater Tailings Storage
1. **Comprehensive Environmental Assessment**:
- Before implementing underwater storage, conduct thorough environmental assessments to evaluate the potential impacts on local ecosystems, water quality, and the stability of the underwater storage site.
2. **Water Management Plans**:
- Develop and implement effective water management plans that include monitoring of water quality and hydrology around the underwater storage site. This helps ensure that potential contaminants are identified and managed appropriately.
3. **Tailings Characterization**:
- Conduct detailed geochemical characterization of the tailings to understand their mineralogy and potential for leaching. This information is critical for predicting the behavior of tailings when stored underwater.
4. **Monitoring Systems**:
- Install monitoring systems to continuously assess the stability of the underwater tailings and the surrounding water quality. Regular inspections and data collection are essential for identifying potential issues early.
5. **Community Engagement**:
- Engage with local communities and stakeholders to communicate the benefits and safety measures associated with underwater tailings storage. Building trust through transparency can help improve public perception and acceptance of the method.
### Conclusion
**Underwater tailings storage** is a promising approach to managing mine tailings, particularly in regions prone to high rainfall or environmental sensitivity. By preventing exposure to air, this method significantly reduces the risk of acid mine drainage and helps mitigate environmental impacts. While there are challenges associated with operational complexity and long-term monitoring, the benefits of underwater storage make it an attractive option for sustainable mining practices. Through careful planning and implementation, underwater tailings storage can contribute to responsible and environmentally friendly mining operations.
Backfilling
### Overview of Backfilling
1. **Concept**:
- Backfilling involves the placement of tailings or waste rock into mined-out areas to support underground structures and prevent ground subsidence. By using waste material from the mining process, backfilling helps manage tailings effectively and reduce the environmental footprint of mining operations.
2. **Process**:
- **Tailings Preparation**: Tailings may need to be dewatered and processed to achieve the desired consistency and density for backfilling. Depending on the method, this can involve thickening or filtering the tailings.
- **Transport**: The prepared tailings are transported to the underground mine using specialized equipment, such as trucks, conveyors, or pipelines.
- **Placement**: Tailings are placed into the voids systematically to ensure even distribution and adequate compaction, helping to support the surrounding rock and infrastructure.
### Benefits of Backfilling
1. **Stabilization of Underground Structures**:
- Backfilling helps stabilize the mine workings by providing support to the surrounding rock. This reduces the risk of ground subsidence and improves the safety of underground operations.
2. **Reduction of Surface Footprint**:
- Utilizing tailings for backfilling minimizes the need for surface tailings storage facilities, conserving land and reducing the environmental impact of mining activities.
3. **Improved Resource Recovery**:
- Backfilling allows for the effective management of tailings while maximizing resource recovery. It can enable the extraction of additional minerals from the tailings through reprocessing or minimize waste generation.
4. **Environmental Benefits**:
- By placing tailings back underground, the risk of acid mine drainage (AMD) and other environmental issues associated with surface storage is significantly reduced. This helps protect surrounding ecosystems and water resources.
5. **Cost-Effectiveness**:
- Backfilling can be a cost-effective solution for tailings management, reducing the need for additional infrastructure and minimizing transportation costs associated with surface storage.
### Challenges of Backfilling
1. **Geotechnical Considerations**:
- The stability of backfilled areas must be carefully managed. Factors such as the type of tailings used, moisture content, and compaction can affect the overall stability and load-bearing capacity of the backfill.
2. **Water Management**:
- Effective management of water within the backfilled areas is crucial to prevent erosion, settlement, and water accumulation that could compromise the stability of the structure.
3. **Quality Control**:
- Ensuring the quality and consistency of backfilled materials is essential for stability and performance. Variability in tailings composition can affect the strength and behavior of the backfill.
4. **Equipment and Logistics**:
- Backfilling operations may require specialized equipment and techniques, which can introduce complexity and increase operational costs.
5. **Long-Term Monitoring**:
- Continuous monitoring is necessary to assess the performance and stability of backfilled areas over time. This includes regular inspections and assessments to identify potential issues early.
### Methods of Backfilling
1. **Cemented Paste Backfill**:
- This method involves mixing tailings with a binder (e.g., cement) to create a paste-like material that can be pumped into underground voids. Cemented paste backfill provides excellent strength and stability, making it suitable for areas requiring high support.
2. **Uncemented Backfill**:
- Uncemented backfill utilizes dewatered tailings without additional binders. This method is often simpler and more cost-effective but may not provide the same level of strength as cemented options.
3. **Rock Fill**:
- In some cases, waste rock from the mining process is used for backfilling instead of tailings. This method can be effective in providing structural support while minimizing the need for tailings management.
### Best Practices for Backfilling
1. **Geotechnical Assessment**:
- Conduct thorough geotechnical assessments of the mined-out areas to understand their stability and design appropriate backfilling methods.
2. **Tailings Characterization**:
- Characterize the tailings material to ensure that it meets the necessary strength and performance requirements for backfilling. This includes assessing particle size distribution, moisture content, and chemical composition.
3. **Monitoring and Quality Control**:
- Implement monitoring and quality control measures to ensure the consistency and stability of the backfill material. Regular inspections and testing can help identify potential issues early.
4. **Water Management Plans**:
- Develop effective water management plans to control groundwater and surface water interactions. This helps prevent erosion and maintains the stability of the backfilled areas.
5. **Training and Safety Protocols**:
- Provide adequate training for personnel involved in backfilling operations, emphasizing safety protocols and best practices to minimize risks during construction and monitoring.
### Conclusion
**Backfilling** is an effective tailings management strategy that not only stabilizes underground structures but also minimizes surface disturbance and environmental impact. By utilizing tailings for backfilling, mining operations can enhance safety, improve resource recovery, and reduce the need for surface storage facilities. While there are challenges associated with geotechnical stability and water management, the benefits of backfilling make it a valuable approach in responsible mining practices. Through careful planning, monitoring, and implementation of best practices, backfilling can contribute to more sustainable and efficient mining operations.
The use of Agru for construction of tailings facility
Provides an impermeable membrane to prevent ground water pollution
Safety factors
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article. https://www.binance.com/zh-CN/join?ref=VDVEQ78S
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me? https://www.binance.info/en-IN/register?ref=UM6SMJM3
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me. https://www.binance.com/bg/join?ref=V2H9AFPY
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Valuable information. Lucky me I found your site by accident, and I am shocked why this accident did not happened earlier! I bookmarked it.
There is noticeably a bundle to learn about this. I assume you made certain nice factors in options also.
Your article helped me a lot, is there any more related content? Thanks!
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
Your article helped me a lot, is there any more related content? Thanks!
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
Your article helped me a lot, is there any more related content? Thanks!
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
Thank you, your article surprised me, there is such an excellent point of view. Thank you for sharing, I learned a lot. https://accounts.binance.com/pt-PT/register-person?ref=UM6SMJM3
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
I just could not go away your website prior to suggesting that I extremely enjoyed the standard info an individual provide in your visitors? Is going to be back steadily in order to check out new posts.
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me? https://accounts.binance.com/register?ref=P9L9FQKY
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me. https://www.binance.info/it/join?ref=S5H7X3LP
Thank you for your sharing. I am worried that I lack creative ideas. It is your article that makes me full of hope. Thank you. But, I have a question, can you help me?
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
Excellent read, I just passed this onto a colleague who was doing a little research on that. And he actually bought me lunch since I found it for him smile So let me rephrase that: Thanks for lunch! “There are places and moments in which one is so completely alone that one sees the world entire.” by Jules Renard.
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
Can you be more specific about the content of your article? After reading it, I still have some doubts. Hope you can help me.
Your point of view caught my eye and was very interesting. Thanks. I have a question for you.
fantástico este conteúdo. Gostei muito. Aproveitem e vejam este site. informações, novidades e muito mais. Não deixem de acessar para se informar mais. Obrigado a todos e até a próxima. 🙂
this content is fantastic. I really liked. Take advantage and check out this site. information, news and much more. Don’t forget to access to find out more. Thank you everyone and see you next time.
Your article helped me a lot, is there any more related content? Thanks!
Hey there! Do you know if they make any plugins to protect against hackers? I’m kinda paranoid about losing everything I’ve worked hard on. Any recommendations?
Hi, just required you to know I he added your site to my Google bookmarks due to your layout. But seriously, I believe your internet site has 1 in the freshest theme I??ve came across. It extremely helps make reading your blog significantly easier.
It’s in reality a nice and helpful piece of information. I am glad that you shared this useful info with us. Please stay us up to date like this. Thanks for sharing.
I don’t think the title of your article matches the content lol. Just kidding, mainly because I had some doubts after reading the article.
Your article helped me a lot, is there any more related content? Thanks!
Thank you fpr your feedback. Really appreciate it. Here is more related topics.
https://www.mineralprocessing.co.za/216/what-is-tailings/tsf/basdew/
https://www.mineralprocessing.co.za/301/tailings-dam-failure/tsf/basdew/
https://www.mineralprocessing.co.za/242/what-where-and-how-of-mine-tailings/tsf/basdew/
